TABLE OF CONTENTS Rev. 10.5.2022 LAD-RAF, MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Page 7 of 19
Item
Part no.
Description
Quantity
1
44-647-016
44-647-024
44-647-032
44-647-040
Weldment, 7-step frame:
LAD-RAF-7-P
LAD-RAF-7-G
LAD-RAF-7-P-EZ
LAD-RAF-7-G-EZ
1
1
1
1
2
44-524-043
44-524-049
Weldment, handrail:
LAD-RAF-7-P & LAD-RAF-7-G
LAD-RAF-7-P-EZ & LAD-RAF-7-G-EZ
2
2
3
11059
5
/
16
in. – 18 UNC x 1
1
/
2
in. HHCS #2 zinc-plated bolt
14
4
37021
5
/
16
in. – 18 zinc-plated #2 nylon lock nut
18
5
11053
5
/
16
in. – 18 UNC x
3
/
4
in. HHCS #2 zinc-plated bolt
4
6
44-112-006
Wheel axle
1
7
16-132-310
10 in. x 2
1
/
2
in. 16mm steel hub
2
8
65125
3
/
16
in. x 1
1
/
2
in. zinc-plated cotter pin
2
9
99-024-027
1 in. x 1 in., 60 Duro. square cap
2
10
99-025-025
1 in. plastic plug
2
11
44-514-324
Weldment, frame, back platform
1
12
44-514-318
Weldment, back leg, 7-step
1
13
44-014-238
44-014-400
Base support:
LAD-RAF-7-P & LAD-RAF-7-G
LAD-RAF-7-P-EZ & LAD-RAF-7-G-EZ
2
2
14
11108
3
/
8
in. – 16 UNC x 1
3
/
8
in. zinc-plated hex cap screw
2
15
33008
3
/
8
in. USS zinc-plated flat washer
2
16
99-051-005
1
/
2
in. x 8 in. hook-and-loop fastening strap
2

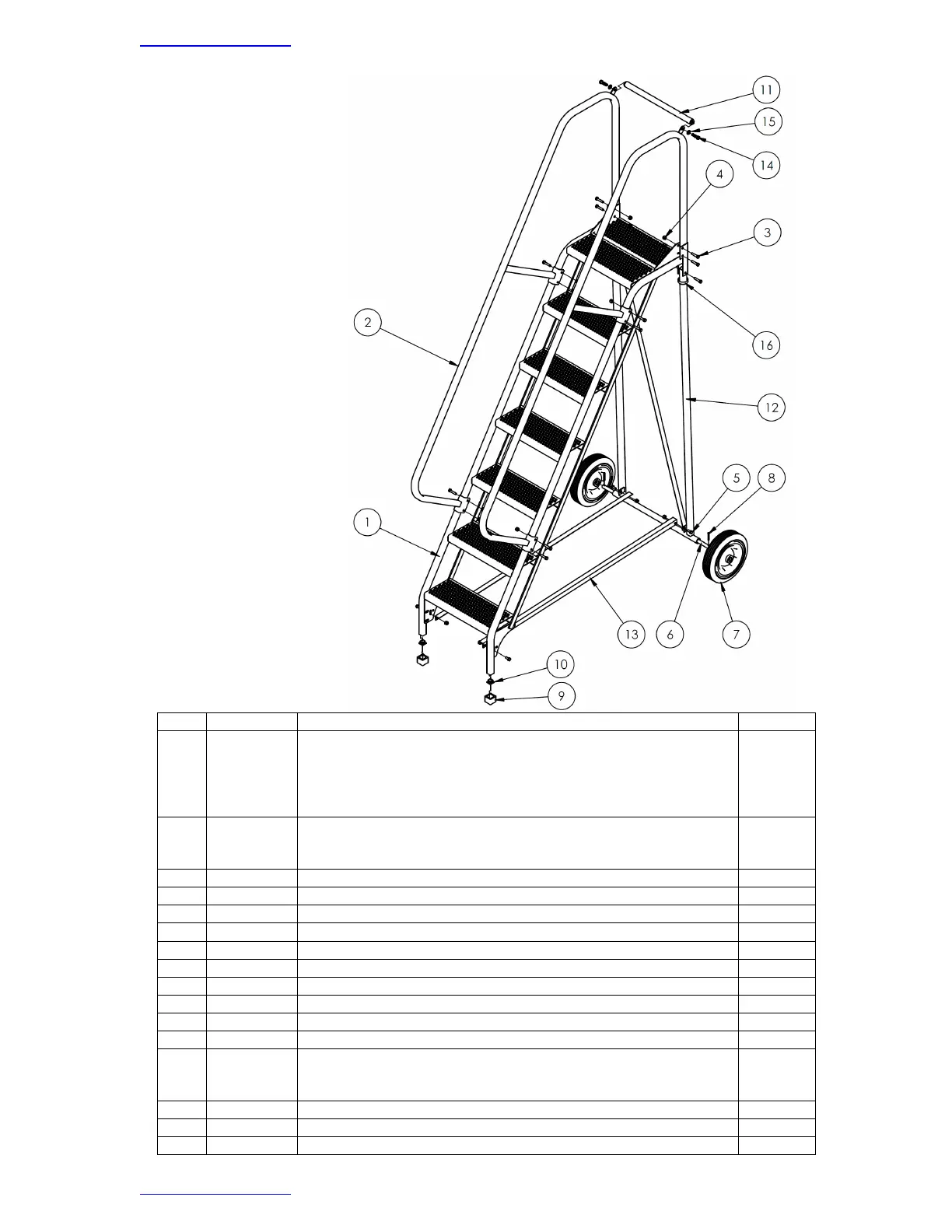

FIG. 4: LAD-RAF-7-P, LAD-RAF-7-P-EZ,
LAD-RAF-7-G, & LAD-RAF-7-G-EZ
EXPLODED VIEW & BILL OF
MATERIALS
