TABLE OF CONTENTS Rev. 9/30/2021 LAD-FM-PSO, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 13 of 21

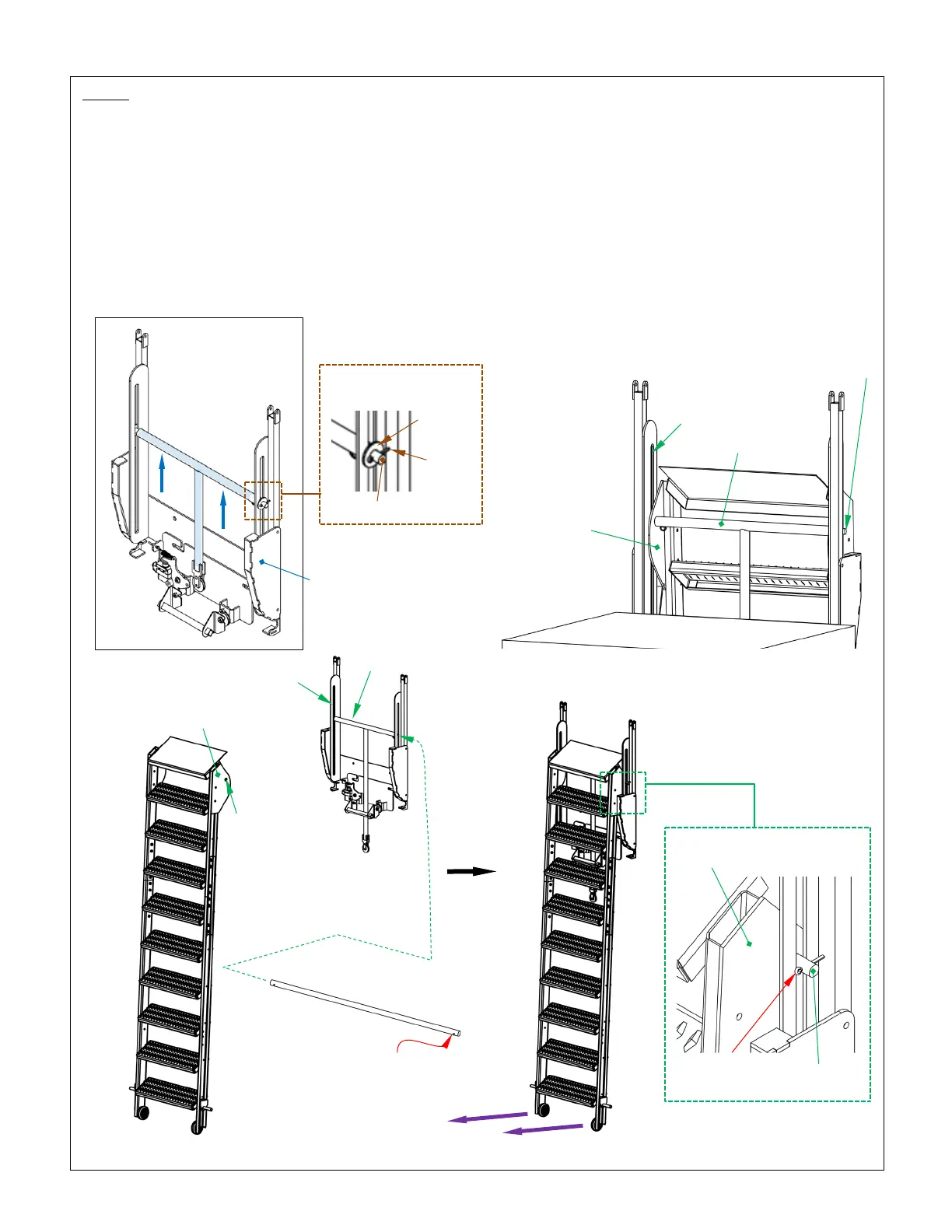

Step 7: Fasten the stairway to the ladder mount weldment.
a. Manually elevate the T-shaped cable pulley weldment until the main hinge pin (44-112-
010) is
accessible above the side guards.
b. Remove one or both of the washers and cotter pins (65127) from the hinge pin; then extract the hinge
pin.
c. Lift the top end of the stairway, e.g. with a hoist or a fork truck.
d. Align the pin holes in the side rail mounting brackets with the pin slots in the ladder mount bracket.
e. Align the hinge pin channel (of the cable pulley weldment) with the pin holes in the side rail mounting
brackets.
f.
Insert the main hinge pin through the pin slots, the side rail mounting brackets, and the pulley
weldment.
g. Reinstall the cotter pin(s) and washer(s) removed in step b.
Pin slot
c-f. Align pin
hole in side rail
mounting
bracket with
pin slot and pin
channel
Hole for cotter pin
Cotter pin
& washer
(not shown)
Side rail mounting
bracket
Main hinge pin
a. Elevate
cable pulle
y
weldment
b. Remove washer
& cotter pin
Hinge pin
Pin channel
REAR VIEW
Mezzanine
Pin slot
Main hinge pin
Pin channel
Side rail
mounting
bracket
Side guard
Side rail
mounting
bracket
Main hinge
pin
h. Carefully extend the ladder by controlling the base of the ladder as it rolls away from the mezzanine. Fully extent
the ladder so that the hinge pin rests on the bottoms of the pin slots
h. Extend/lower
ladder
Washer
Cotter
pin
