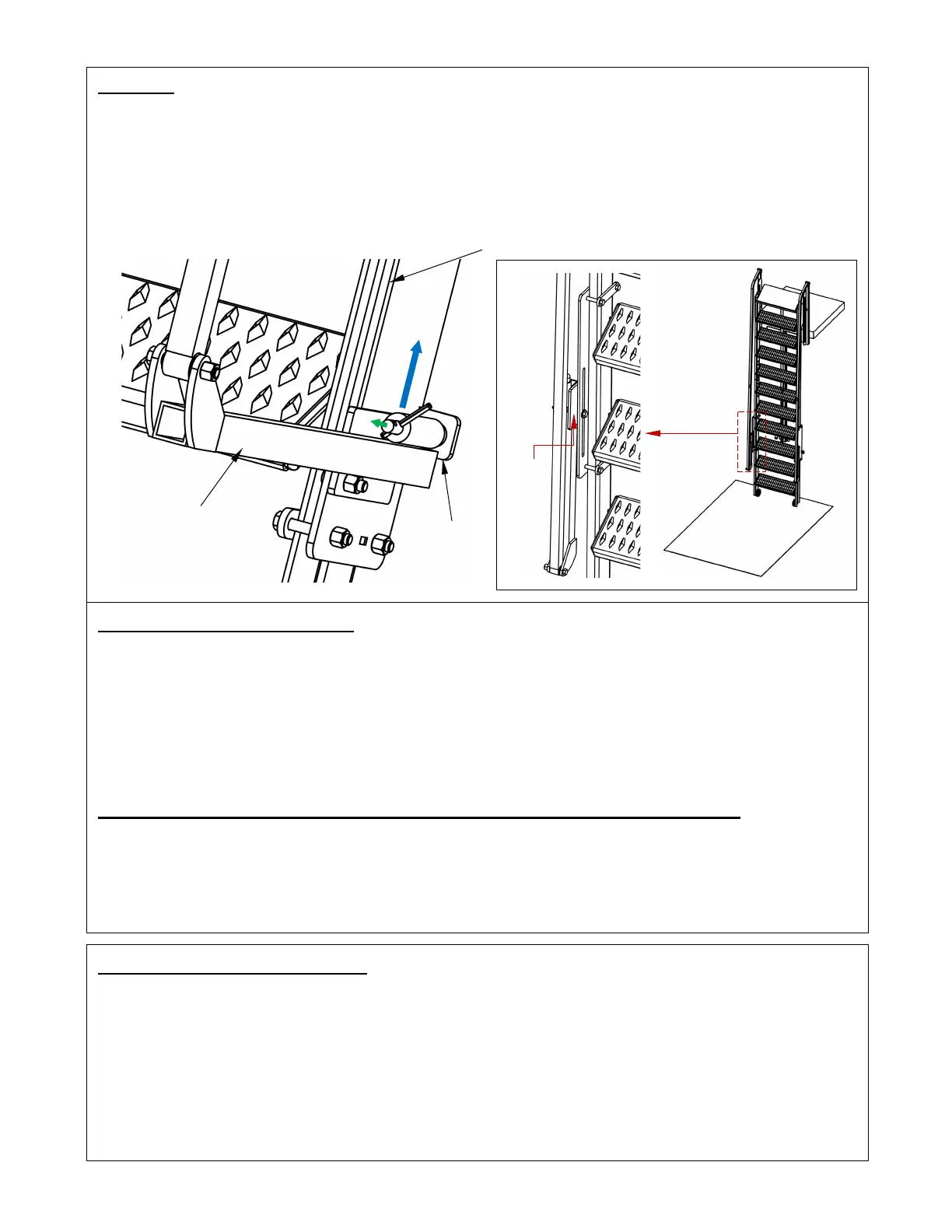

Storage:
To store the stair system:
1) Pull the detent pins up and out of the pin brackets [NOTICE: Failure to disengage the detent pins will result
in ladder damage].
2) Slide the bottom of each post forward in the bolt slot (make sure that the jack direction selector is in the
āDOWNā position (see FIG. 7 on p. 10).
3) Use the jack to raise the stairs. [NOTE: Stop raising the stairs before they become vertical, i.e. the stairs
should be slightly angled away from the wall/mezzanine.]
4) Lower the handrails by pushing the handrail posts forward in their slots.
1
Push bottom of
handrail post
forward/upward
in slot.
4
2
Extending the stair system:
1) Jack direction selector must be in the UP position (see FIG. 7 on p. 10).
2) Stand to the side of the ladder in position to be able to operate the jack.
3) Gently but firmly press the bottom of the ladder away from the wall/mezzanine with your foot.
4) Move the jack handle back-and-forth to lower the ladder. Continue lowering the ladder until the top step
rests on the mezzanine surface.
5) Slide the handrail posts down the slots.
6) Pull the detent pins up, slide the posts to the lower ends of the bolt slots, and release the detent pins. Pins
should project through the holes in the pin brackets.
Putting the stair system into storage position without using the jack:
1) Jack direction selector must be in the UP position (see FIG. 7 on p. 10).
2) Pull the detent pins out of the pin brackets.
3) Slide the bottom of each post forward in the bolt slot.
4) Push the stairway towards the wall/mezzanine. Stop just before the ladder becomes vertical, i.e. the bottom
of the ladder should be slightly angled away from the wall.
5) Lower the handrails by pushing the handrail posts forward in their slots.
Bolt slot
Handrail
post
Pin
bracket
4
Record of Normal Condition:
After assembling and installing the unit and before putting the stair system into service, make a detailed
record about its appearance and operation. Include descriptions of the steps, wheels, hardware, handrails,
and jack. Describe the connection of the stairway mounting frame to the mezzanine. Use the jack to raise and
lower the stairs. Include observations about the process: how the jack sounds as it operates; how the top of
the stairs slides in the pin slot of the stairway mounting frame; and how the handrails fold. Describe the effort
needed to work the jack. Thoroughly photograph the ladder from multiple angles. Include photographs of all
labels. Add the photographs to the record. This record establishes normal condition of the stair system. When
conducting subsequent inspections, compare the condition of the stair system to the record to determine if it is
in normal condition. Do not use the stair system unless it is in normal condition. If repairs are necessary, only
use manufacturer-approved replacement parts.
