Table of Contents Rev. 11/30/2018 LAD-FM, MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Co. Page 13 of 18

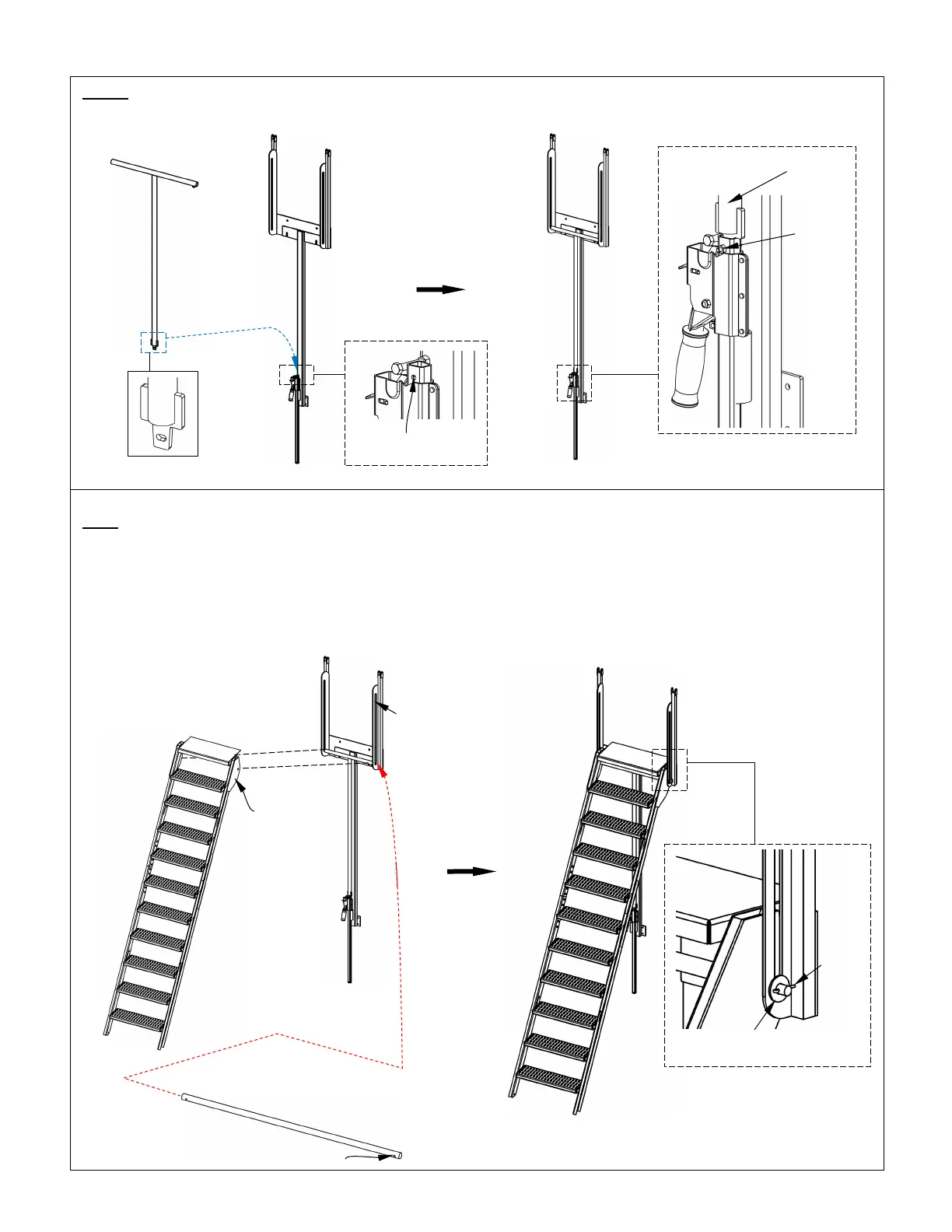

Step 7: Attach the push bar to the top of the jack slide. Insert the bottom end of the push bar into the top of the
slide and fasten them with a
1
/
4
” -20 x 1
1
/
2
” bolt and
1
/
4
” -20 lock nut as shown.
Step 8: Fasten the stairway to the stairway mounting frame.
1. Lift the top end of the stairway with a hoist or a fork truck.
2. Align the pin holes in the side rail mounting brackets with the pin slots in the stair mounting frame and the top
of the push bar.
3. Insert the main hinge pin through the pin slots, the side rail mounting brackets, and the push bar.
4. Slide a
3
/
4
” flat washer over each end of the hinge pin.
5. Install a cotter pin through each end of the hinge pin.
Pin slot
Push bar
1
/
4
” bolt
and lock
nut
Bolt hole in top
of slide
Side rail
mounting
bracket
Hole for cotter pin
Cotter
pin
Flat
washer
Push
bar
Main hinge pin
