Table of Contents Rev. 11/18/2019 LAD (6-12 STEPS), MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 10 of 20

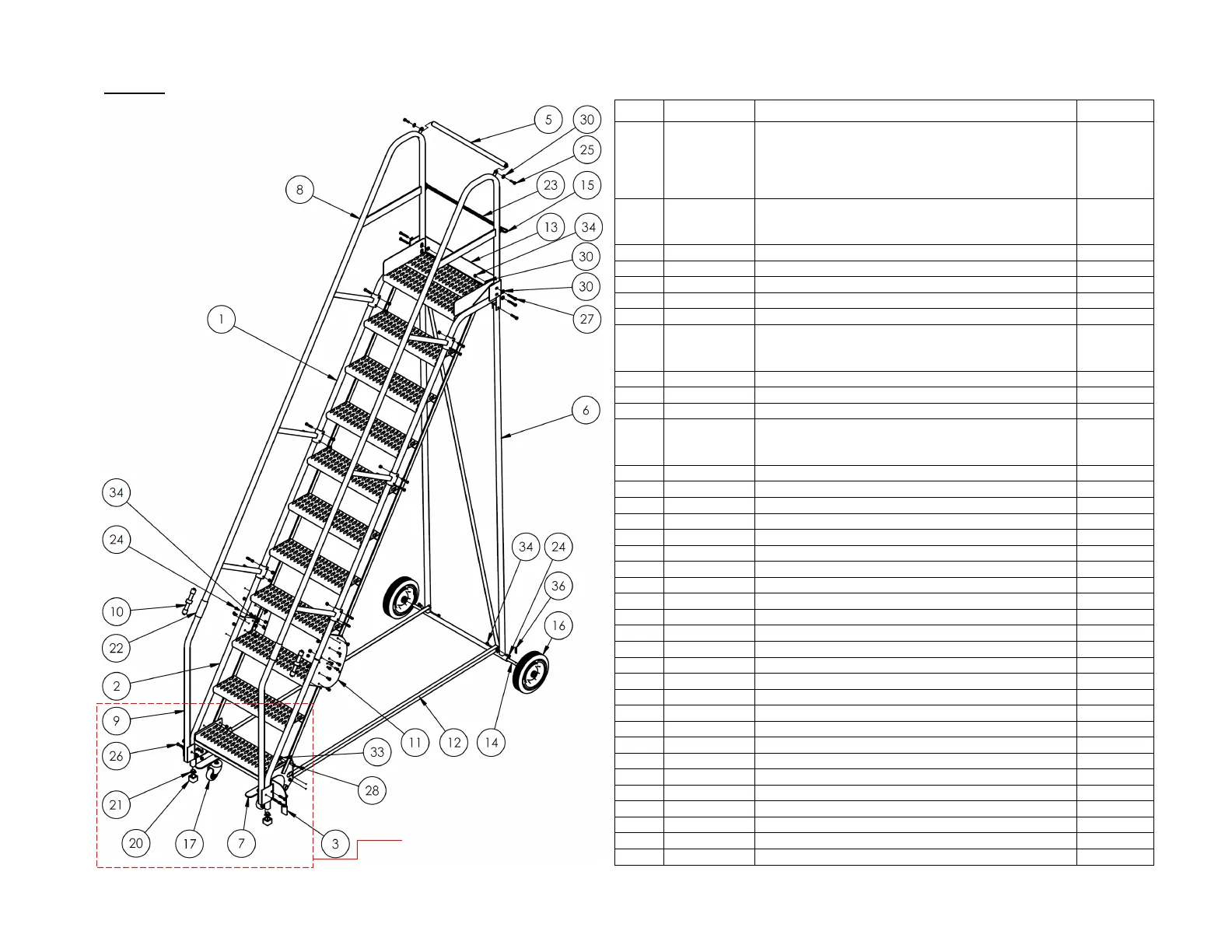

FIG. 7: LAD-11-14-G, LAD-11-14-P, LAD-11-21-G, & LAD-11-21-P Exploded View and Bill of Materials
Item
Part no.
Description
Quantity
1
44-647-256
44-647-255
44-647-258
44-647-257
Weldment, step 58°, warehouse, upper:
LAD-11-14-G
LAD-11-14-P
LAD-11-21-G
LAD-11-21-P
1
2
44-647-260
44-647-259
Weldment, 11-step, frame, lower:
LAD-11-14-G
LAD-11-14-P & LAD-11-21-G & LAD-11-21-P
1
3
44-514-310
Assembly, outrigger, right
1
4
44-514-311
Assembly, outrigger, left
1
5
44-514-314
Weldment, frame, back platform
1
6
44-514-322
Weldment, back leg, 11-step
1
7
44-514-354
Weldment, frame, caster pivot foot lock
1
8
44-524-147
44-524-148
Weldment, handrail, 58° climb, 8-step:
LAD-11-14-G & LAD-11-14-P
LAD-11-21-G & LAD-11-21-P
2
9
44-524-149
Weldment, handrail, 11-step warehouse
2
10
44-645-001
Assembly, specialty hardware, handrail splice
2
11
44-012-008
Hinge plates, connector
2
12
44-014-401
44-014-402
Frame, base support:
LAD-11-14-G & LAD-11-14-P
LAD-11-21-G & LAD-11-21-P
2
13
44-015-001
Toeguard, removable back plate, formed
1
14
44-112-007
Wheel axle
1
15
08-145-008
1
/
4
” snap hook
2
16
16-132-310
10” x 2
1
/
2
” wheel, 16mm steel hub
2
17
16-132-164
Caster
2
18
20-027-005
Roller guide
4
19
28-146-003
Spring
2
20
99-024-027
1” x 1”, 60 duro., square cap
2
21
99-025-025
1” plastic plug, black
2
22
99-025-028
Grip, 1” square tube sleeve
2
23
99-145-031
3
/
16
” chain, 24” long
1
24
11053
5
/
16
” – 18 x
3
/
4
” HHCS #2 zinc-plated bolt
22
25
11057
5
/
16
” – 18 UNC x 1
1
/
4
” HHCS #2 zinc-plated bolt
2
26
11060
5
/
16
” – 18 UNC x 1
3
/
4
” HHCS #2 zinc-plated bolt
20
27
11062
5
/
16
” – 18 UNC x 2
1
/
4
” HHCS #2 zinc-plated bolt
4
28
11105
3
/
8
” – 16 x 1in. hex head bolt
2
29
26329
3
/
8
” shoulder x
3
/
4
” x
5
/
16
” – 18 bolt
2
30
33006
5
/
16
” USS zinc-plated USS flat washer
10
31
33008
3
/
8
” zinc-plated USS flat washer
6
32
33456
1
1
/
8
” I.D. 10 gauge machine bushing
2
33
36106
3
/
8
” – 16 zinc-plated hex nut
2
34
37021
5
/
16
” – 18 zinc-plated #2 Nylon lock nut
46
35
37024
3
/
8
” Nylock insert nut
4
36
65125
3
/
16
” x 1
1
/
2
” zinc-plated cotter pin
2
37
65127
3
/
16
” x 2” zinc-plated cotter pin
2
NOTE: See FIG. 1 on p. 4 for a detailed exploded view of the Foot Lock
Mechanism.
See FIG. 1 on p. 4
