Table of Contents Rev. 12/2/2019 LAD (13-16 STEPS), MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 9 of 18
INSTALLING CASTERS
1. Gather the lower step weldment, stem casters (16-132-164), 2 lock nuts (37024), and 2 flat washers
(33008). Apply a permanent thread bonding and sealing compound like Loctite® Threadlocker Red 271™
to the threads of one of the stem casters (16-132-164). Follow the directions provided with the thread
compound.
2. Insert the (threaded) stem of a caster through the hole in a caster bracket.
3. Put a
3
/
8
” flat washer (33008) over the stem.
4. Tighten a
3
/
8
”-16 lock nut (37024) on the stem.
5. Repeat steps 1-4 with the remaining caster. Install the caster in the other caster bracket.

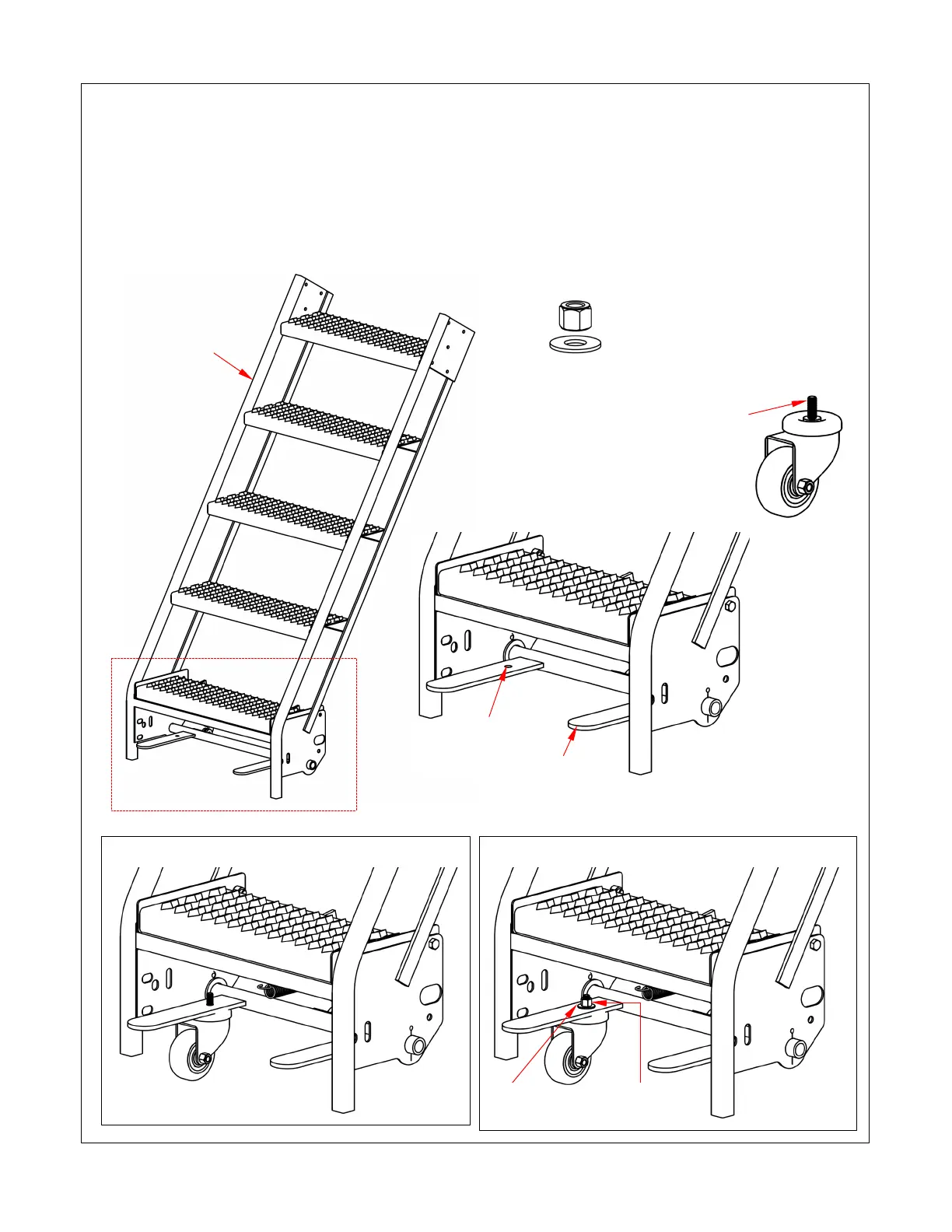

Stem caster
Lock nut (37024)
Flat washer (33008)
Apply permanent
locking and sealing
compound to
threads
Step 4: Fasteners installed and tightened
Step 2: Insert caster stem
Hole for
caster stem
Caster
bracket
Washer
(33008)
Lock nut
(37024)
Lower step
weldment
