Table of Contents Rev. 12/2/2019 LAD (13-16 STEPS), MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 13 of 18

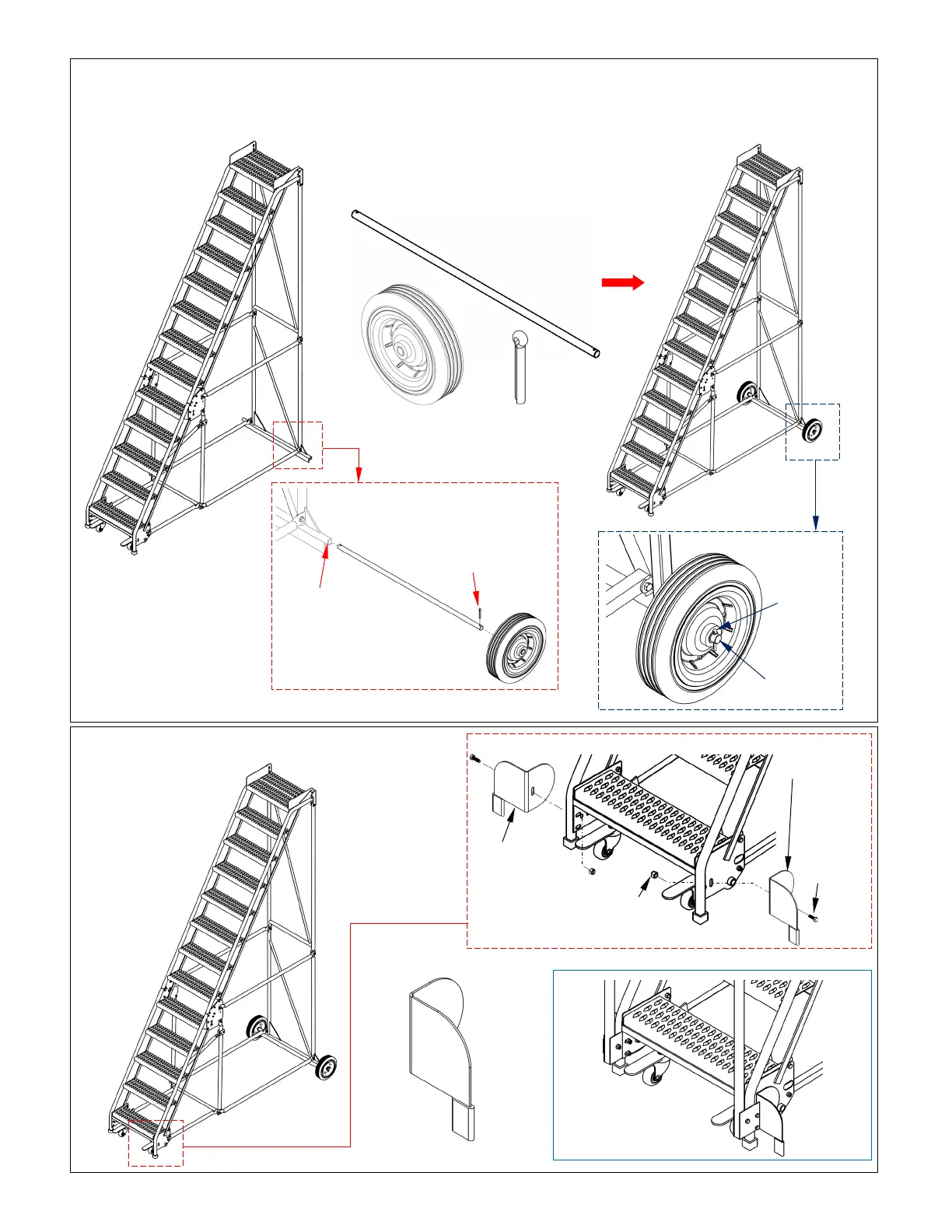

Step 7: Install the outriggers (44-514-399 & 44-514-400) as
diagrammed.
Step 6: Install the axle (44-112-014) and attach the wheels (16-132-310).
i. Insert the axle through the axle receiver of the lower step support weldment.
ii. Slide the wheels onto the ends of the axle. Secure the wheels to the axle by inserting a cotter pin through the pinhole in ea
ch
end of the axle. Periodically lubricate the axle to allow the wheels to rotate freely.
5
/
16
in.
lock nut
(37021)
Left side
outrigger
Outriggers
installed
Ladder
assembly
Axle (44-112-014)
Wheel
(16-132-310)
Cotter pin
(65127)
Axle
receiver
Cotter pin
Axle
Cotter pin
Axle
Wheel
Outrigger (right)
5
/
16
” – 18 x
3
/
4
” bolt
(11055)
AND
5
/
16
”
flat
washer
(33006)
Right side
outrigger
+
