Rev. 0213 EPT, Manual.doc
Copyright 2013 Vestil Manufacturing Corp. Page 8 of 51
Item No. Part No. Description Item No. Part No. Description
Not
Shown
EPT-30/45-DBA
Drive Brake Assembly
3015 EPT-30-3015 Pinion Gear
3300 EPT-30-DWA
Complete Drive Wheel
Assembly (includes Motor)
3016 EPT-30-3016 Key
3001 EPT-30-3001
24VDC (700W) Drive Motor
3017 EPT-30-3017 Pinion Gear Bearing
3002 EPT-30-3002
Woodruf Key
3018 EPT-30-3018 Cap
3003 EPT-30-3003
Motor Adaptor Ring
3019 EPT-30-3019 Cap Screw
3004 EPT-30-3004
5 x 16 Dowel Pin
3020 EPT-30-3020 M6 x 15 Cap Screw
3005 EPT-30-3005
M6 x 15 Cap Screw
3021 EPT-30-3021 Motor Retainer Cap Screw
3006 EPT-30-3006
6mm Washer
3022 EPT-30-3022 Drive Gear
3007 EPT-30-3007
Replacement Polyurethane
Drive Wheel
3023 EPT-30-3023 Spacer
3007 EPT-30-3007-R
Replacement Rubber Drive
Wheel
3024 EPT-30-3024 Motor Shaft Pilot Bearing
3008 EPT-30-3008
140 x 180 x 12 Oil Seal
3025 EPT-30-3025 Spacer
3009 EPT-30-3009
Wheel Bearing
3026 EPT-30-3026 Brake Mounting Adapter
3010 EPT-30-3010
Snap Ring
3027 EPT-30-3027 Splined Coupling
301 EPT-30-3011
Bull Gear
3028 EPT-30-3028 Snap Ring
3012 EPT-30-3012
Grease Seal
3029 EPT-30-3029 Brake Pad
3013 EPT-30-3013
Gear Box Casting
3030 EPT-30-3030 Brake Coil
3014 EPT-30-3014
Idler Gear
3031 EPT-30-3031 Cap Screw
EPT-30-MTR-BLT
M6-1.0 x 185mm Motor Bolt

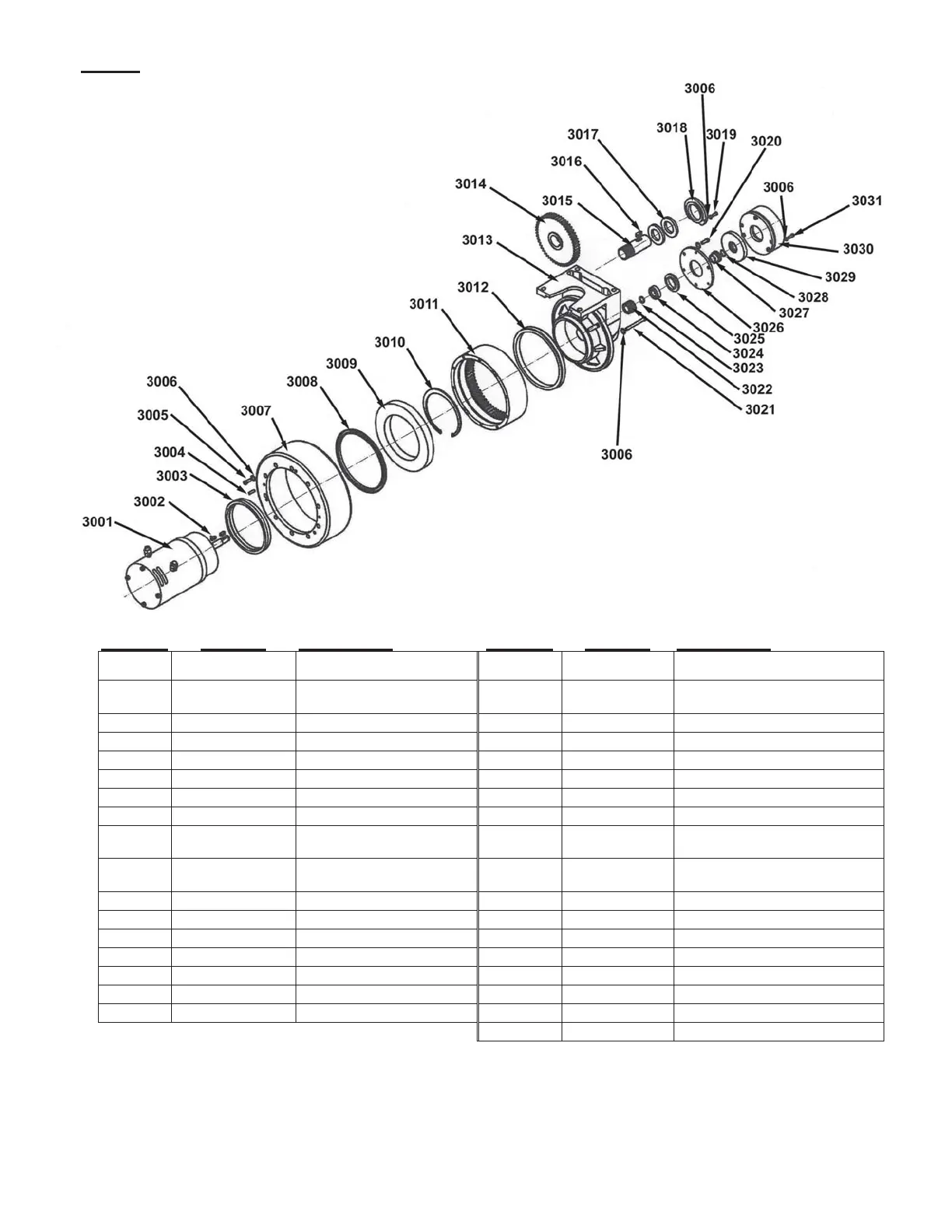

FIG. 3: EPT-30 MODELS DRIVE WHEEL ASSEMBLY
