Table of Contents Rev. 1/31/2023 JMD-1000, MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 5 of 12

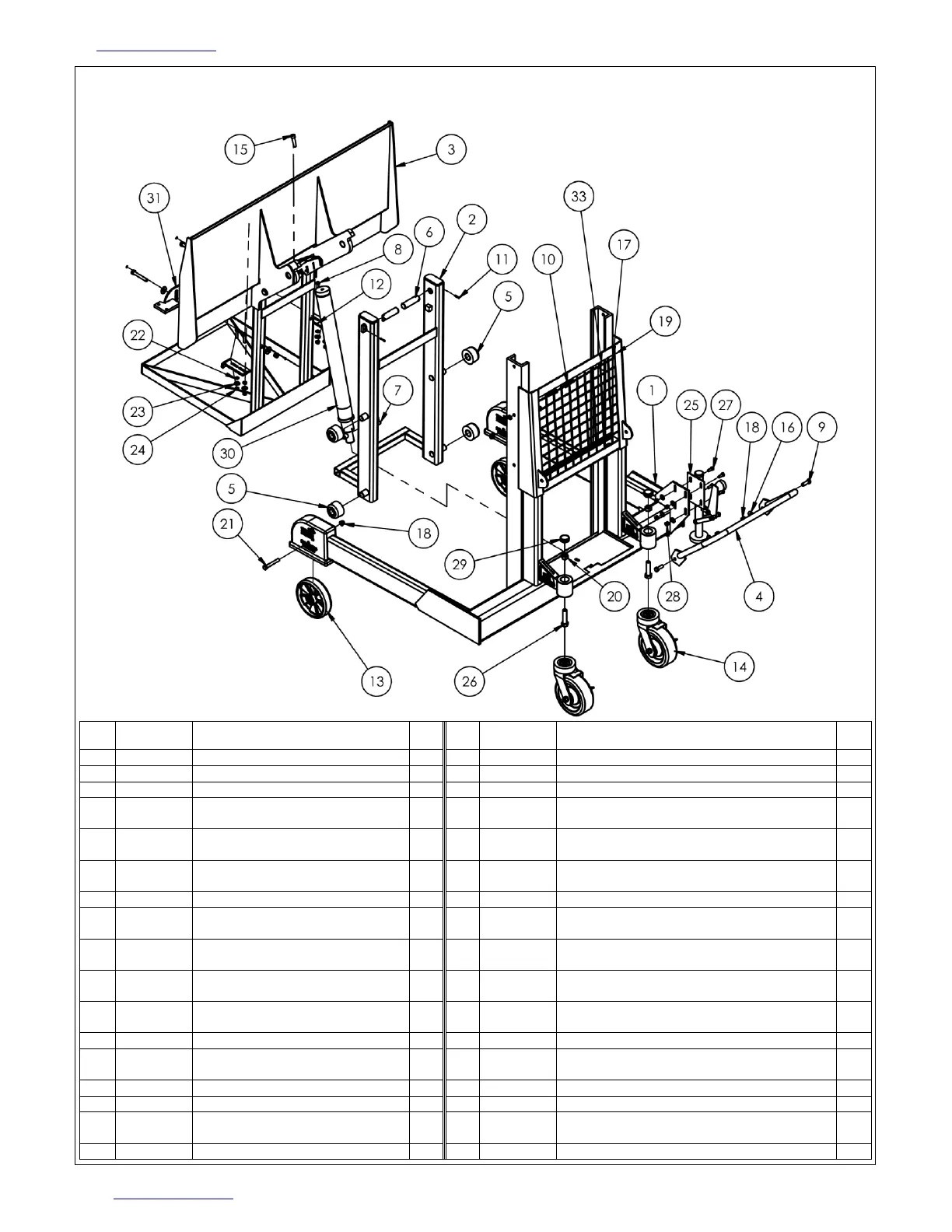

JMD-1000-60 EXPLODED VIEW AND BILL OF MATERIALS
(34-006-017)
ITEM
PART NO.
DESCRIPTION
QTY.
ITEM
PART NO.
DESCRIPTION
QTY.
1
34-514-020
WELDMENT, FRAME
1
18
37030
1/2"-13 NYLON INSERT LOCK NUT, GRADE 2
6
2
34-538-004
WELDMENT, ROLLER CARRIAGE
1
19
36109
HEX NUT, GRADE A, PLAIN FINISH, 1/2"-13
2
3
34-538-005
WELDMENT, CARRIAGE & CHUTE
1
20
37274
3/4"-10 LOCK NUT
2
4
15-525-007
HANDLE, WELDMENT
1
21
11217
HEX BOLT, GRADE A, ZINC PLATED, 1/2-13 X 3
1/2"
4
5
15-527-004
SUB-ASSEMBLY, ROLLER
4
22
33622
SPLIT LOCK WASHER, CARBON STEEL, MEDIUM
ZINC FINISH, 3/8"
4
6
34-112-008
PIN, HINGE
2
23
33008
FLAT WASHER, LOW CARBON, USS, ZINC
PLATED, 3/8"
8
7
01-118-001
BOLT, CYLINDER RETAINING
1
24
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-16
4
8
11110
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16 X 1 3/4"
4
25
16-132-081-
001
FLOOR LOCK ASSEMBLY, RIGHT MOUNT
1
9
11209
1/2-13 X 1 1/2" LG HHCS - ASTM
A307 GRADE A, ZINC PLATED
2
26
11365
HHCS #2 Z-PLATED, 3/4 -10 x 3
2
10
11211
HEX BOLT, GRADE A, ZINC FINISH,
1/2"-13 x 2"
2
27
11105
HEX BOLT, GRADE A, ZINC PLATED, 3/8"-16 X 1"
4
11
64134
SPRING PIN
2
28
37024
NYLON INSERT LOCK NUT, GRADE 2, ZINC
FINISH, 3/8"-16
4
12
34-016-058
BRACKET, TOTE RECEIVER
2
29
99-024-003
GUARD/COVER/ENDCAP/PLUG
2
13
16-132-216
CASTER, WHEEL, GFN-8/2-W
2
30
99-021-912-
001
CYLINDER, HYDRAULIC, Ø1 1/2" x 48",
TELESCOPIC STYLE
1
14
16-132-227
CASTER, 8/3-SWB-NTP
2
31
34-516-018
WELDMENT, BRACKET, TOTE RECEIVER
1
15
23879
1/2"-20 x 2" SOCKET CAP SCREW
1
32
34-001-039
FINAL ASSEMBLY W/O SHIPPING
1
16
33012
FLAT WASHER, LOW CARBON, ZINC
FINISH, 1/2"
6
33
34-037-010
STOP BLOCK
2
17
33626
LOCK WASHER Z PLATED, Ø 1/2
2
