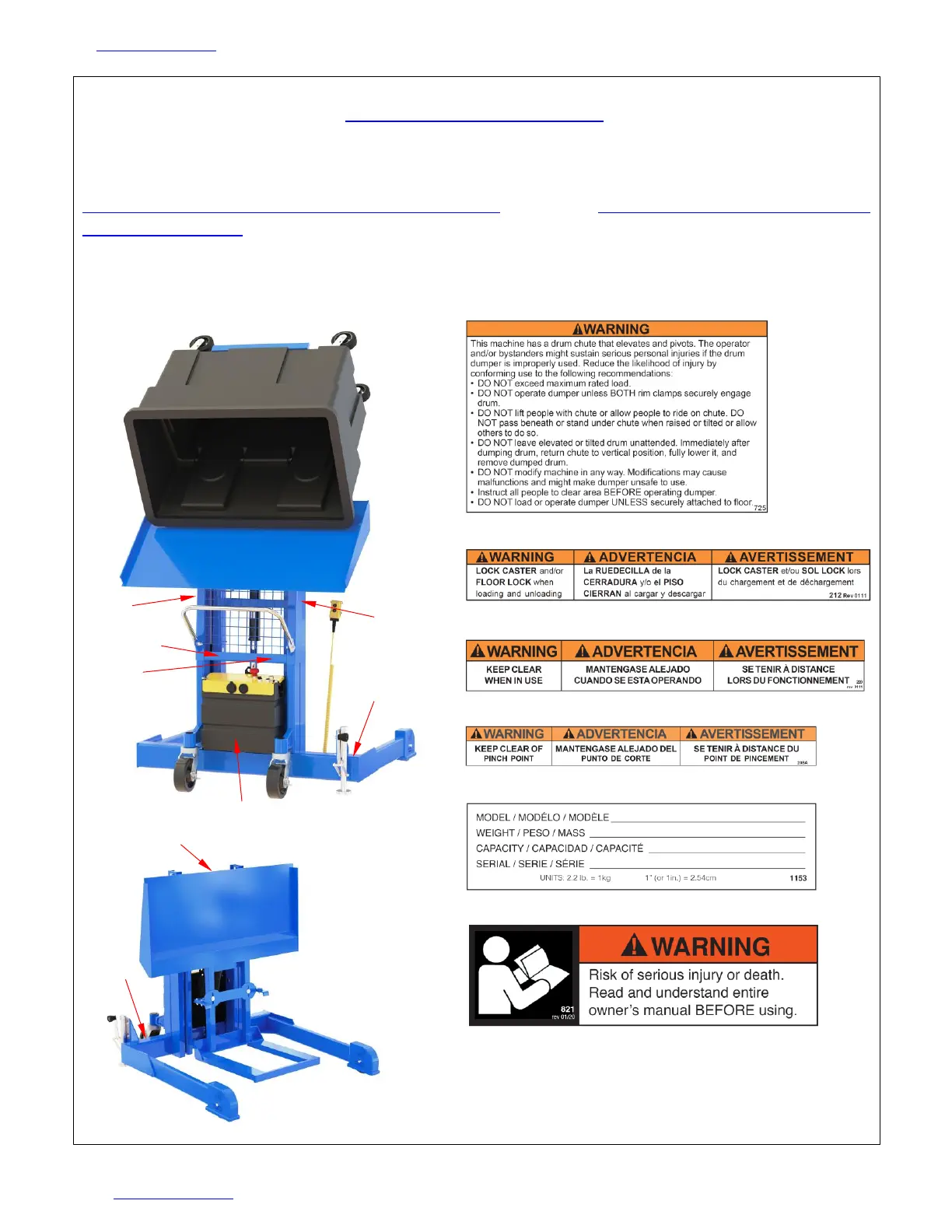

LABELING DIAGRAM
Also see LABELING DIAGRAM in MPU-DC-GEN2 owner’s manual.
The unit should be labeled as shown in the diagram. However, content and location
of each label are subject to change. Replace all labels that are damaged, missing, or
not easily readable (e.g. faded). Order replacement labels by contacting the
TECHNICAL SERVICE AND PARTS DEPARTMENT online at https://www.vestil.com/page-
parts-request.php. Alternatively, you may request replacement parts and/or service by
calling (260) 665-7586 and asking the operator to connect you to the Parts
Department.
E: Label 1153 (on frame above MPU)
C: Label 220 (applied to both sides)
A: Risks of Operation label (applied to back of
chute facing operator handle)
B: Label 212 (on frame)
A
C
B
A
B
C
B
F
E
F: Label 821 (on frame above MPU)
C, D
C, D
A
B
See Labeling Diagram in
MPU-DC GEN2 manual
D: Label 208 (applied to both sides)
