TABLE OF CONTENTS Rev. 2/22/2024 JIB-FM, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 3 of 12
SAFETY INSTRUCTIONS
Study the entire manual before using this crane. We recommend that a copy of the manual be stored
on/attached to the crane at all times. Read the manual to refresh your understanding of the safe operation,
inspection or maintenance procedures whenever necessary.
DANGER
DO not install or use the crane in areas where it will contact electrified wires. Electrocution might occur if the
crane, hoist, or load, etc. contacts electrified wires.
WARNING
Improper or careless operation might result in serious personal injuries.
ALWAYS apply operation, inspection, and maintenance recommendations in 29 CFR 1910.179. Contact the
occupational safety and health institution of the state where the crane is used for requirements applied to jib
cranes.
DO NOT use a damaged or malfunctioning jib! Restore the crane to satisfactory condition before returning it to
service.
DO NOT attempt to lift a load that weighs more than the capacity of your crane. Capacity information for
each JIB-FM model crane is provided in the SPECIFICATIONS table on p. 2. Capacity information also appears in
the LABELING DIAGRAM section of this manual on p. 11, as well as on capacity labels applied to the crane. The
weights of the load, hoist, trolley, rigging, and all other equipment attached to the jib must be added together to
determine the net weight applied to the jib. The net weight must never exceed the capacity.
Always perform the FUNCTION TESTS on p. 8 before each use.
Inform all persons in the area that you are going to use the crane; instruct them to stay clear of the device and
the supported load during operation.
Keep clear of suspended loads. DO NOT put any part of your body under a suspended load. DO NOT stand
beneath, or travel under, the crane if a load is suspended. DO NOT permit any person to stand beneath or travel
DO NOT lift people with the crane. DO NOT lift loads over people. DO NOT climb on the load or the crane.
DO NOT operate manual motions with other than manual power.
ALWAYS load the jib as recommended on p. 8. Failure to properly position a load might cause the load to
swing when it is lifted. Load swing might result in serious injury.
DO NOT use the crane if any label is unreadable, damaged, or missing. See LABELING DIAGRAM on p. 11.
Contact Vestil for replacement labels.
DO NOT modify the crane! Modifications automatically void the LIMITED WARRANTY on p. 12 and might make
the crane unsafe to use.

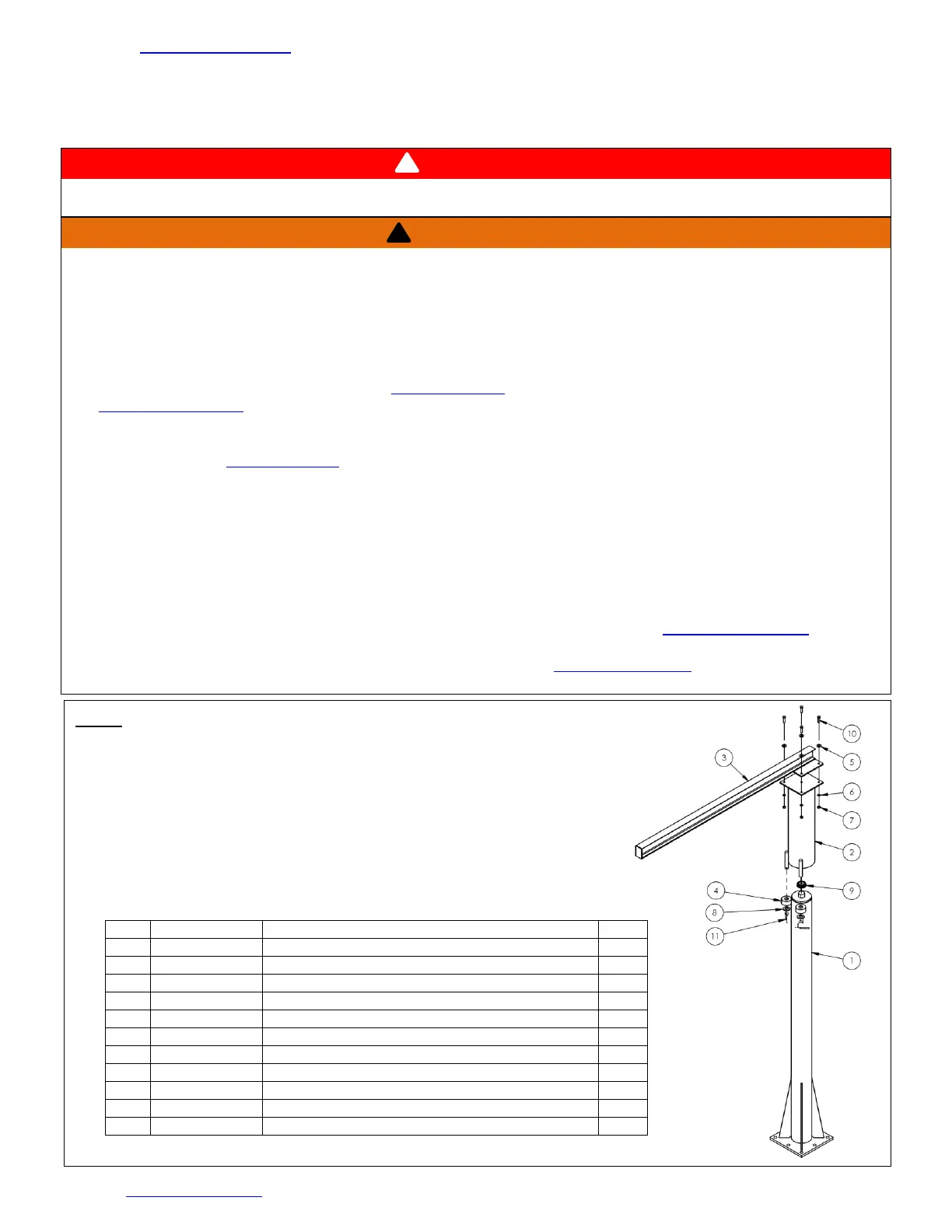

FIG. 1: JIB-FM-3 EXPLODED VIEW AND BILL OF MATERIALS
Item
Part No.
Description
Qty.
1
28-514-050
Weldment, floor mount subassembly (“Mast”)
1
2
28-514-044
Weldment, pivot subassembly (“Socket”)
1
3
28-514-048
Weldment, I-beam subassembly (“Boom”)
1
4
05-527-300
Roller, assembly
2
5
33012
Flat washer, low carbon, zinc finish,
1
/
2
”
4
6
33626
Lock washer, zinc plated,
1
/
2
”
4
7
36310
1
/
2
”-13 UNC grade 5, hex nut, zinc plated
4
8
33098
1
1
/
8
” SAE flat washer, zinc-plated
2
9
28-110-001-001
Inner bearing
1
10
13211
1
/
2
” -13x2” HHCS #5, zinc plated bolt
4
11
64319
Pin, spring,
3
/
8
” x 3”
2
!
!
