TABLE OF CONTENTS Rev. 2/22/2024 JIB-FM, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 7 of 12

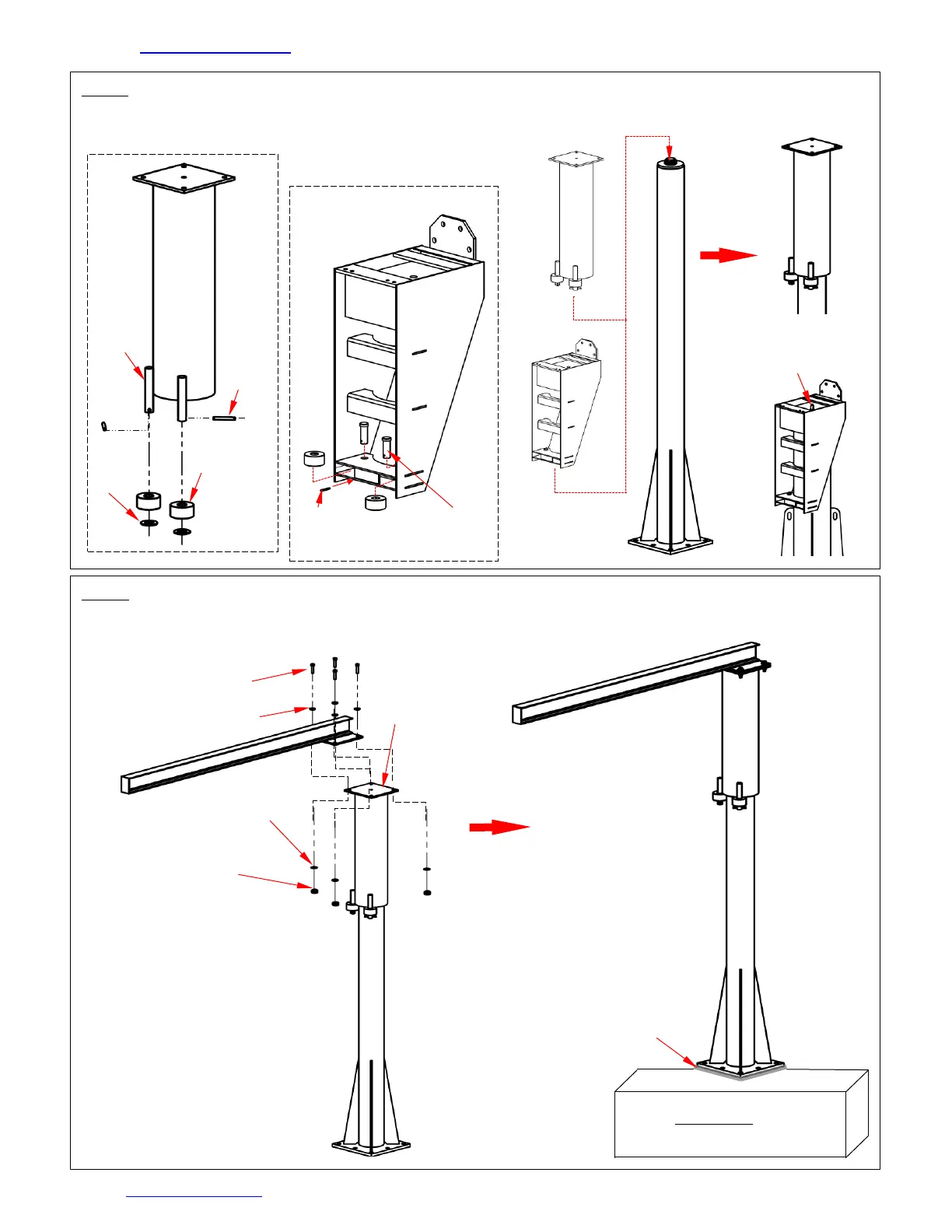

Step 3: Install the roller assemblies on the roller pegs as shown below. Liberally grease the thrust bearing
inside the socket. Then, install the socket over the top of the mast. Make sure that the inner bearing (28-
110-001-001) seats within the thrust bearing inside the socket. Rotate the socket clockwise and
counterclockwise. The socket should turn smoothly in both directions.
Socket
Spring
pin
(64319)
Roller
(05-527-300)
Flat
washer
(33098)
Step 4: Attach the boom to the socket using
1
/
2
” hardware as indicated in the diagrams below. Fasten
bolts and lock nuts to 94ft∙lb. of torque. Fill the remaining space under the mounting plate with grout.
Allow the grout to fully cure before placing the jib in service.
NOTE: Instructions for model JIB-FM-40 are provided on the following page.
1
/
2
”-13x2” bolt (13211)
1
/
2
” flat washer (33012)
1
/
2
” lock washer
(33626)
1
/
2
”-13 lock nut
(36310)
Completed
grout pedestal
Foundation
Roller
peg
JIB-FM-40 Socket
Clevis pin
(28-112-050)
Spring
pin
(64255)
Install clevis pin (28-112-049)
and cotter pin (65077) to
complete installation of
inner bearing
Beam
bracket
