TABLE OF CONTENTS Rev. 2/22/2024 JIB-FM, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 5 of 12

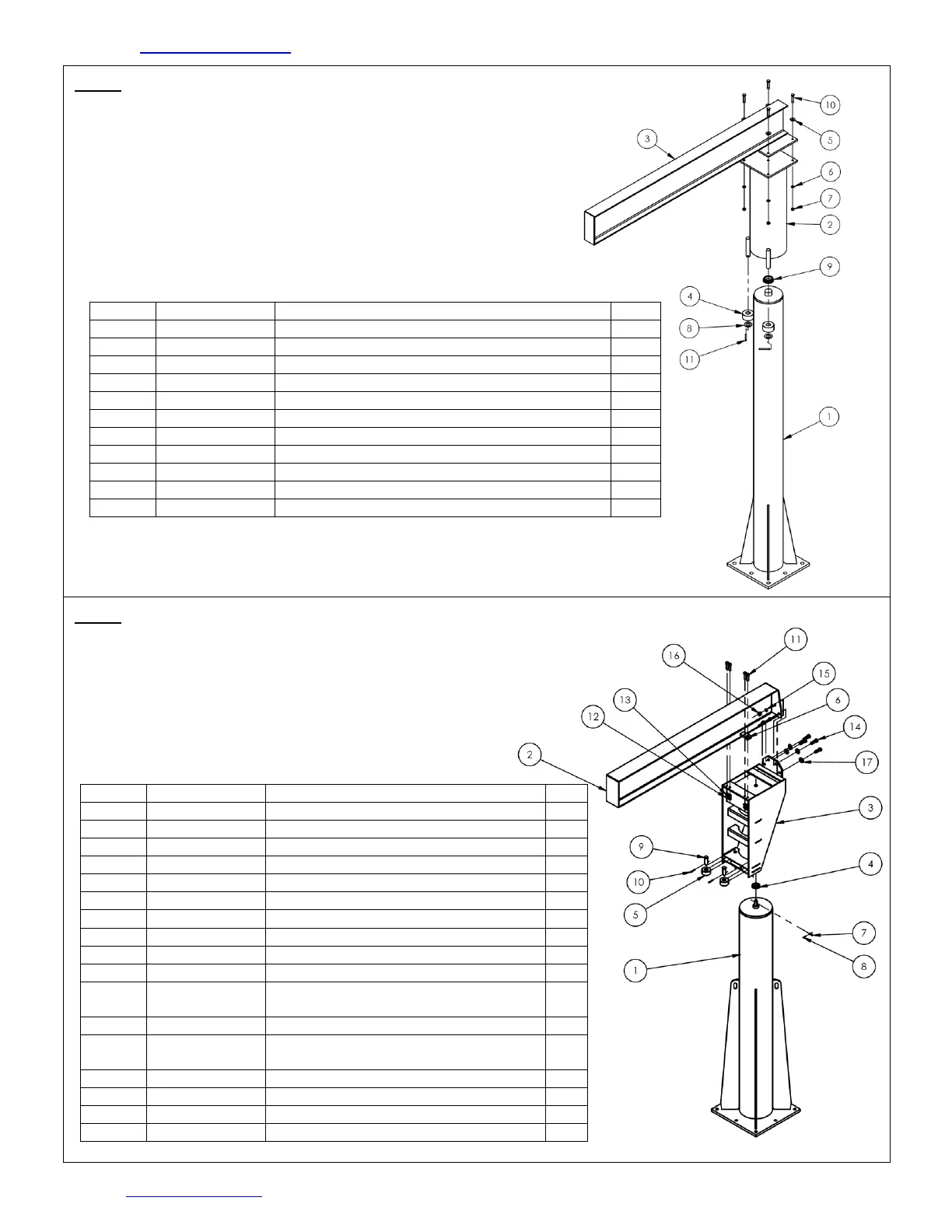

FIG. 4: JIB-FM-20 EXPLODED VIEW AND BILL OF MATERIALS
Item No.
Part No.
Description
Qty.
1
28-514-047
Weldment, floor mount subassembly (“Mast”)
1
2
28-514-045
Weldment, pivot subassembly (“Socket”)
1
3
28-514-046
Weldment, I-beam subassembly (“Boom”)
1
4
05-527-300
Roller, assembly
2
5
33012
Flat washer, low carbon, zinc finish,
1
/
2
”
4
6
33626
Lock washer, zinc plated,
1
/
2
”
4
7
36310
1
/
2
”-13 UNC grade 5, hex nut, zinc plated
4
8
33098
1
1
/
8
” SAE flat washer, zinc-plated
2
9
28-110-001-001
Inner bearing
1
10
13211
1
/
2
” -13x2” HHCS #5, zinc plated bolt
4
11
64319
Pin, spring,
3
/
8
” x 3”
2
FIG. 5: JIB-FM-40 EXPLODED VIEW AND BILL OF MATERIALS
Item No.
Part No.
Description
Qty.
1
28-514-299
WELDMENT, PIVOT PIPE
1
2
28-514-301
WELDMENT, FRAME, BEAM
1
3
28-514-300
WELDMENT, FRAME, UPPER
1
4
28-110-001-001
INNER BEARING
1
5
05-527-300
ROLLER, ASSEMBLY
2
6
28-516-081
WELDMENT, BRACKET, BEAM CLAMP
2
7
28-112-049
PIN, CLEVIS, 3/8" DIA.
1
8
65077
COTTER PIN, ZINC PLATED, 1/8" X 1-1/4"
1
9
28-112-050
PIN, CLEVIS, 1 1/8" DIA.
2
10
64255
Ø0.25 x 2 LG SPRING PIN
2
11
12313
HEX BOLT, GRADE 5, PLAIN FINISH, 5/8"-
11 x 2 1/2"
4
12
36114
HEX NUT Z-PLATED, Ø5/8 - 11 UNC
4
13
33630
5/8" ZINC FINISH MEDIUM SPLIT LOCK
WASHER
4
14
13363
3/4-10 x 2 1/2 HHCS #5 Z PLATED
4
15
33632
3/4 lock washer
4
16
36116
3/4-10 HEX NUT
4
17
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
