Copyright 2015 Vestil Manufacturing Co. Page 7 of 18

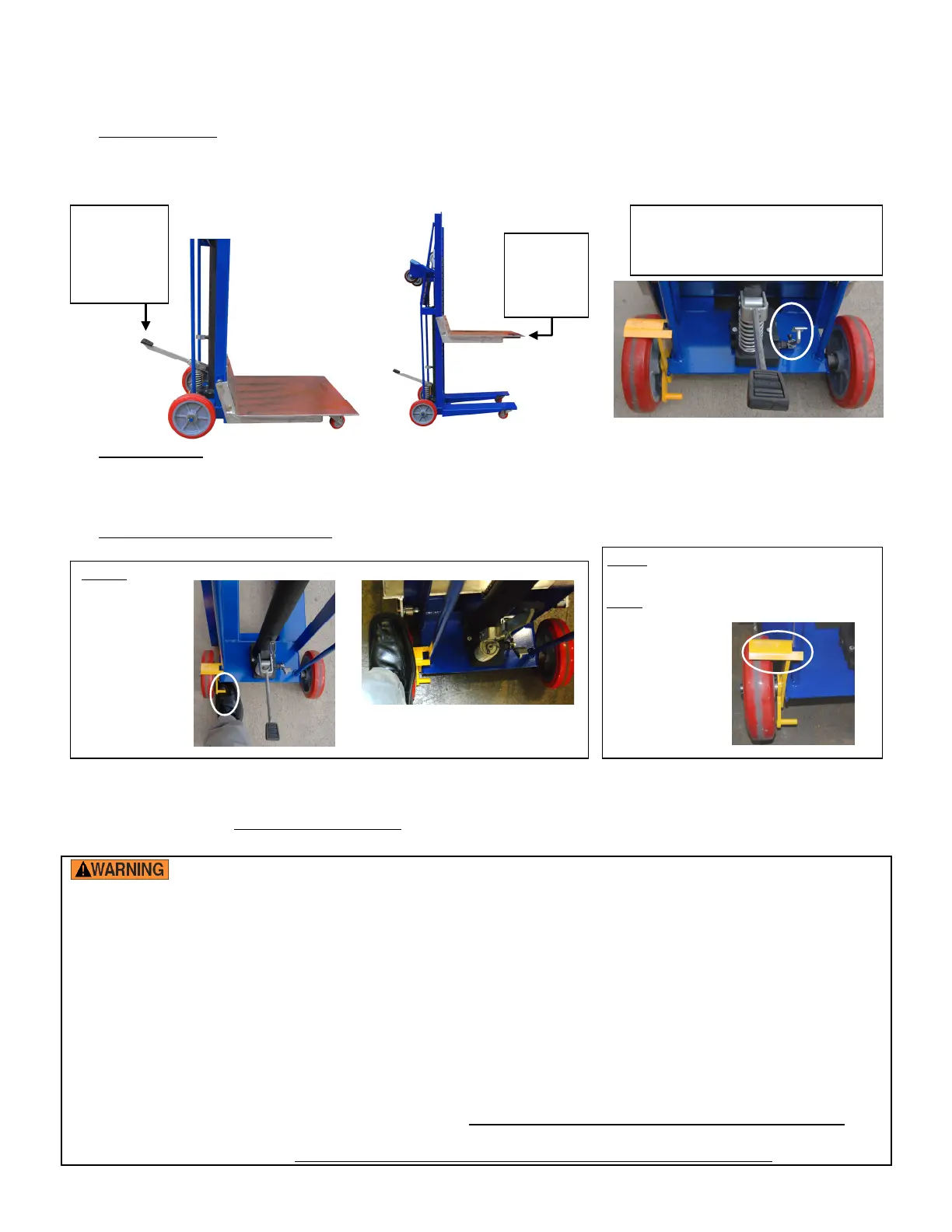

Functions Checks/Tests:
Before operating the HYDRA lift, verify that each of the following systems function normally:
I. Hydraulic system: raise and lower the deck to verify normal operation.
Normal Function — Pump the hydraulic pedal several times with your foot. Press down on the pedal; when the
pedal reaches the bottom of its stroke, release it to allow the pedal to return to the neutral position. With each stroke,
the deck should rise by a noticeable increment, and should maintain its position after the pedal is released.
II. Wheels/Rollers: to verify that the wheels turn smoothly and are undamaged, push the lifter far enough to allow the
rear wheels to complete a few full revolutions. If the lifter wobbles as you push it, check the surface of each
wheel for embedded debris. Remove all debris; then repeat the process to determine whether the vibration
problem has been resolved. If the problem persists, notify maintenance personnel.
III. Brakes [HYDRA-2 and -4 models]: engage the brakes; then try to roll the lifter. The HYDRA should not be able to
roll (forward or reverse) more than an insignificant amount.
Operation:
Safe operation is the operator’s responsibility [ANSI/ITSDF B56.10]. The operating instructions in this manual
supplement the rules applied at your workplace.
DO NOT operate the HYDRA lift until you read AND understand every instruction. If you do not
understand an instruction, contact Vestil for clarification. To reduce the possibility of sustaining or causing serious
personal injuries, always:
Review the safety guidelines on p. 3 before each use;
Apply proper loading techniques (p. 8);
Ask a coworker to help you load and unload the lifter.
“Operator” means a person, who is trained and authorized to use a manually propelled high lift device. ONLY
persons who have successfully completed a training program, like the courses outlined on p. 4-5 of B56.10-2006,
should operate the HYRDA-Lift. Safe operation requires operators to:
Develop safe working habits and a process for identifying hazards that exist or might be encountered during
operation;
Conduct thorough inspections of the usage area to identify unusual/hazardous conditions. Walk the path you will
use to transport loads with the lifter beforehand. Do not use the HYDRA lift if the floor (or other supporting
surface) is uneven or damaged or cannot support the combined weight of the operator, the lifter and the load.
Make sure that the lifter has been inspected as recommended in the “Inspections & Maintenance” section of this
manual (p. 9). Use the lifter ONLY IF it is deemed safe to use by designated inspection personnel.
Deck should
maintain
elevation
after pedal
released.
Raise the deck
by pressing the
hydraulic pedal
several times;
pedal shown in
neutral position.
To engage the
brake, press
the brake lever
(circled) with
your foot. To
disengage the
brake, lift the
brake lever.
Alternatively, to engage the brake,
step directly on the brake assembly.
Pivot the brake
assembly inwardly
until the round
frame brace fits
into the notch in
the brake (circled).
Step 1: Engage
wheel with brake.
Step 2: Try to push lifter while the brake is
engaged.
Step 3: Secure the disengaged brake to the
frame.
Press the deck lowering pedal (release
pedal) down to allow the deck to descend to
the fully lowered position. Pedal is circled
below.
