LOADING & USING THE HOPPER
Loading the Hopper
Confirm that the hopper chute is solidly latched to the base frame before filling the chute with refuse.
Standard units are designed for indoor and outdoor use in most industrial and commercial settings. They
should only be used to collect and dump non-hazardous wastes. Whenever the hopper is stationary, engage
the caster brake. See USING THE CASTER BRAKE on p. 5
.
Using the Hopper
1. Mount the hopper on the forks of a lift truck and secure it to the carriage with the safety chain. Wrap the
free end of the chain around the lift carriage; then fasten the quick link to a link in the chain. The chain
must be taut (no slack) to prevent the hopper from sliding on the forks.
2. Store the handle of the release cable within reach of the forklift operator. For example, hook the cable
to the frame of the forklift cab. Make sure that there is plenty of slack in the cable to avoid accidentally
releasing the chute.
3. The chute cannot dump unless the latch is unlocked. To unlock the latch, pull the finger tab at the top
end of the latch lock bracket until the bracket disengages the latch bar. See Diagram 1
(below).
4. Raise the hopper above the dumpster and drive forward until the dumping axis (dotted line) is clearly
over the inside of the dumpster as shown in Diagram 2 below.
5. Dump the contents of the hopper by releasing the chute. To release the chute, pull the release cable.
The chute will pivot about the dump axis.
WARNING
DO NOT wrap the release cable around your hand/fingers or attach the handle to your clothing!
6. Latch the chute to the base.
a. Manually: slowly lower the forks until the hopper rests on the ground. The chute will pivot towards the
frame. Press the back end of the chute onto the base until the latch lever engages the latch bar.
See Step 4
Diagram 1.
b. Using the forklift: raise the fork tips by tilting the forklift mast toward the cab. Then, back away from
the dumpster. Slowly lower the forks until the front end of the chute contacts to top of the side of the
WARNING
Do not exceed the load rating or fill the hopper above the top of the sides. Serious personal injury (or
property damage) could result from overloading the hopper.
Waste material
Latch lock
bracket
Finger tab
Latch bar

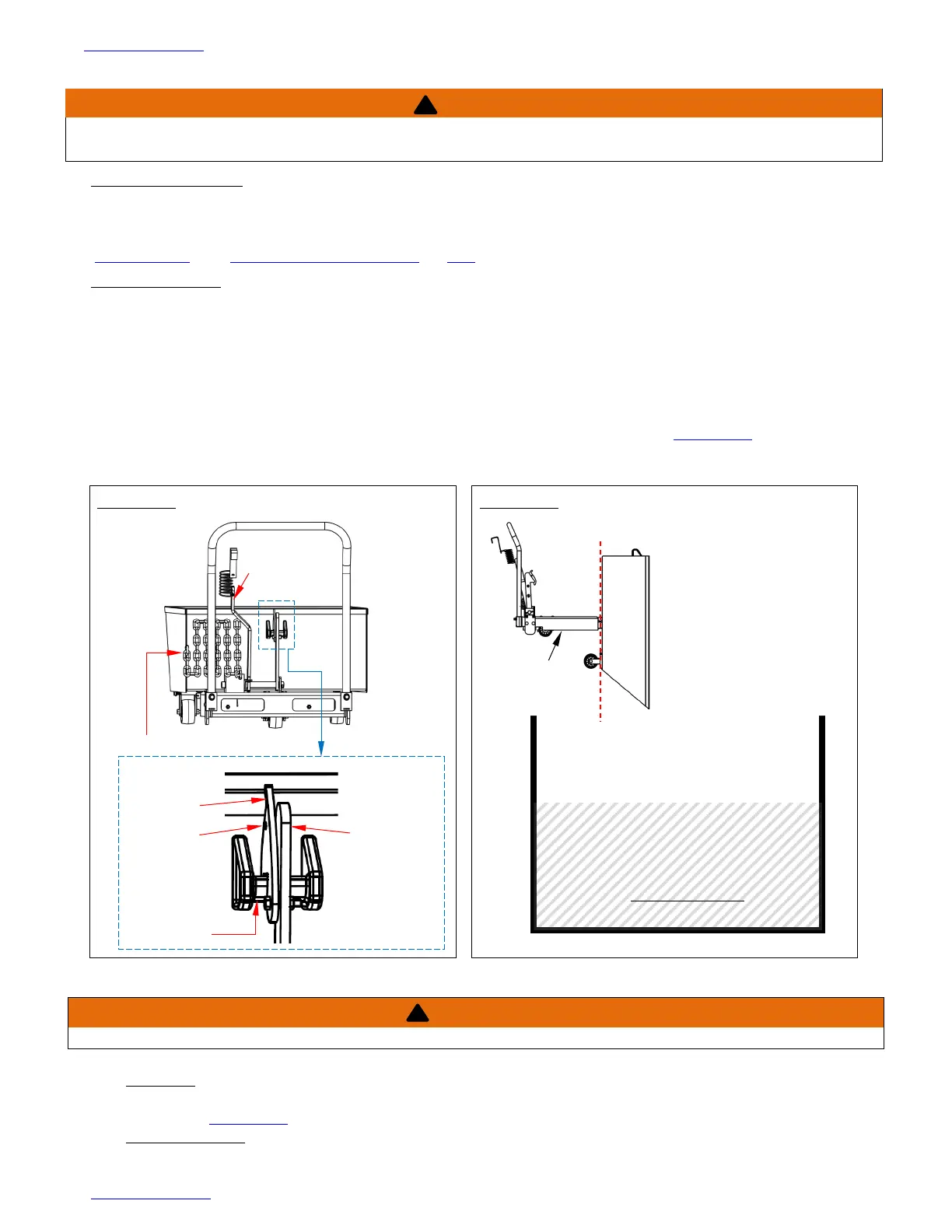

Diagram 1: Unlock the latch
Diagram 2: Dump hopper contents
Latch lever
Manual chute
release lever
Back end
of chute
Front end
of chute
Dumpster (cross-section)
Dumping
axis
Base
frame
Safety chain
!
!
