Table of Contents Rev. 3/17/2022 HOP-LP-N, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Co. Page 4 of 10

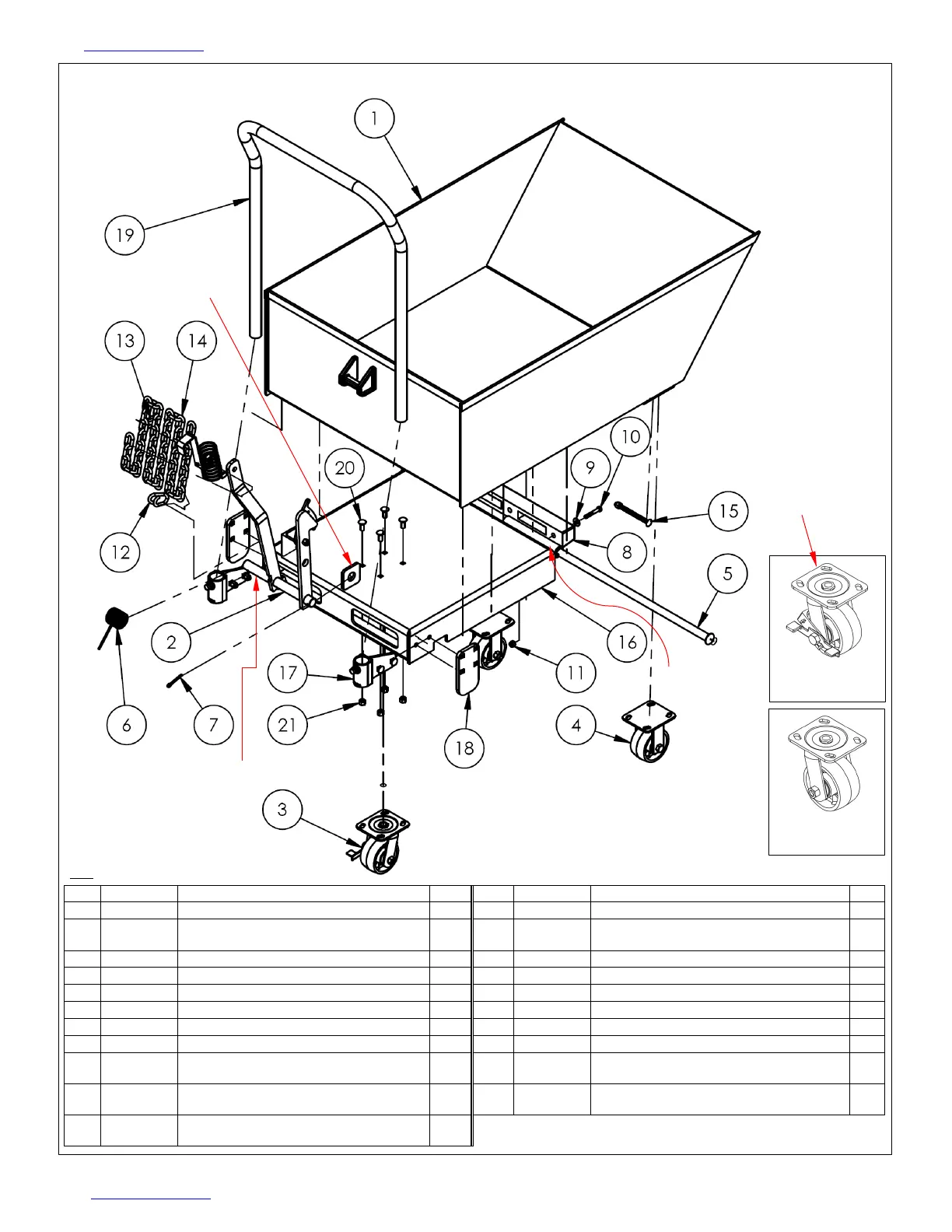

HOP-LP-N EXPLODED VIEW AND BILL OF MATERIALS (37-006-084)
Pin bracket
Release lever
pin (integral
part of item 2
)
Axle
receiver
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
37-545-080
WELDMENT, CHUTE
1
12
99-145-084
LAP LINK, 5/16" X 1 1/2"
1
2
37-537-021
WELDMENT, LOCK, RELEASE LEVER
ASSEMBLY
1
13
99-145-053 5/16" QUICK LINK 1
3
16-132-259
CASTER, SWIVEL W/ BRAKE, 4X2
1
14
09-145-018
CHAIN, 5/16" x 56" LG
1
4
16-132-260
CASTER, RIGID, 4X2
2
15
99-612-001
PIN, BULLDOG BOLT AND NUT ASSEMBLY
2
5
37-112-046
PIN, CONNECTING ROD
1
16
37-514-082
WELDMENT, FRAME, BASE
1
6
37-146-005
SPRING,TORSION,HOPPER RELEASE
1
17
37-154-022
KIT, HANDLE SOCKET BRACKET
1
7
65127
COTTER PIN Z PLATED, 3/16 x 2
2
18
37-016-070
BRACKET, BOLT ON FOOT
2
8
29-048-061
BUMPER, RUBBER
1
19
99-025-014
HANDLE, PUSH, 22" C/C
1
9
33006 FLAT WASHER,ZINC PLATED,USS, Ø5/16" 2
20
21355
Ø3/8"-16 x 1" Zinc Finish Grade A
Round Head Carriage Bolt
4
10
11061
HHCS #2 Z PLATED, GRADE A, Ø 5/16 -
18 x 2" LG
2
21
37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 3/8"-16
4
11
37021
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 5/16"-18
2
Swivel caster
with brake (3)
Rigid caster
(4)
Axle
receiver
