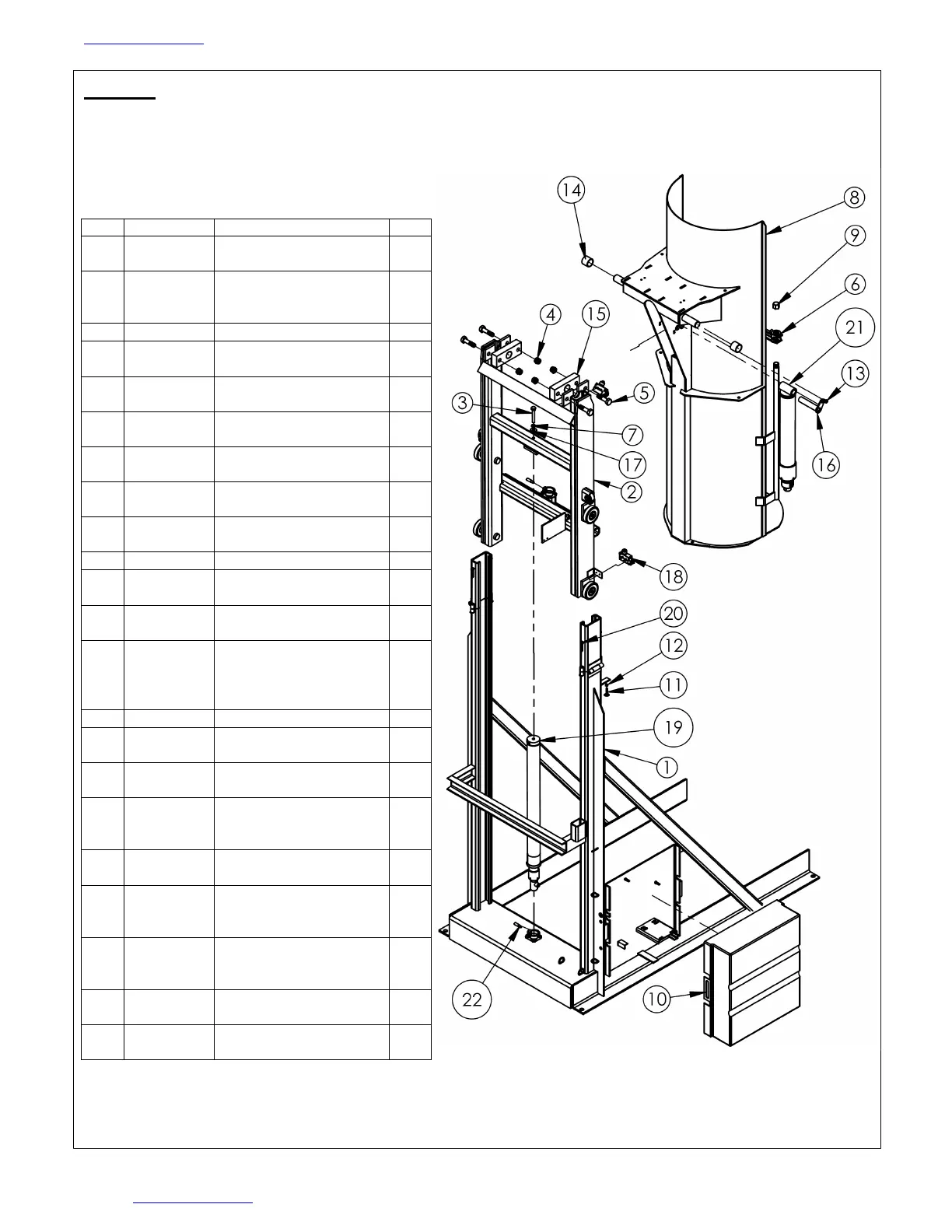

FIG. 11: HLD-116-10-S & HLD-116-15-S Exploded View and Bill of Materials
(09-006-098)
Item
Part No.
Description
Qty.
1 09-514-099
WELDMENT, BASE,
STATIONARY
1
2 09-538-026
SUB-ASSEMBLY,
CARRIAGE W/ ROLLERS,
STATIONARY
1
3
12217
1/2-13 X 3.5 HHCS #5
1
4 37039
NYLOCK NUT Z PLATED,
GRADE 2, Ø3/4 - 10
4
5 12365
3/4-10 X 3 HHCS # 5
PLAIN, GRADE 5
4
6 09-537-013
ASSEMBLY,PIPE
CLAMP,CASTING
2
7 33625
LOCK WASHER, MEDIUM
SPLIT, PLAIN FINISH, 1/2"
1
8 09-545-031
WELDMENT, SUB-
ASSEMBLY, CHUTE
1
9 09-145-020
SPECIALTY HARDWARE,
HEX PIPE CAP
2
10
04-024-001
POWER UP, RED COVER
1
11 22805
ELEVATOR BOLT, GRADE
A, LIMIT SWITCH
1
12 36102
HEX NUT, GRADE A, ZINC
PLATED, 1/4-20
1
13 32416
THREAD CUTTING
SCREW, SLOTTED, TYPE F,
ZINC PLATED, 5/16-18 X
3/4
1
14
09-113-039
SPACER, HINGE
2
15 09-512-003
SUB-ASSEMBLY, HINGE
BLOCK
2
16 24-612-003
WELDMENT, CYLINDER
PIN
1
17 33012
FLAT WASHER, LOW
CARBON, ZINC FINISH,
1/2"
1
18 01-022-021
SWITCH, LIMIT, TOP
PLUNGER
2
19
99-021-913-
001
CYLINDER, HYDRAULIC,
Ø1 1/2" x 58",
TELESCOPIC STYLE
1
20 11111
HEX BOLT, GRADE A,
ZINC PLATED, 3/8" - 16 x
2"
4
21
99-021-909-
001
CYLINDER, HYDRAULIC,
Ø2 1/2" x 18" RAM STYLE
1
22 01-118-001
BOLT, CYLINDER
RETAINING
2
