Table of Contents 2/4/2022 HLD MANUAL
Table of Contents Copyright 2010 Vestil Manufacturing Corp. Page 14 of 19

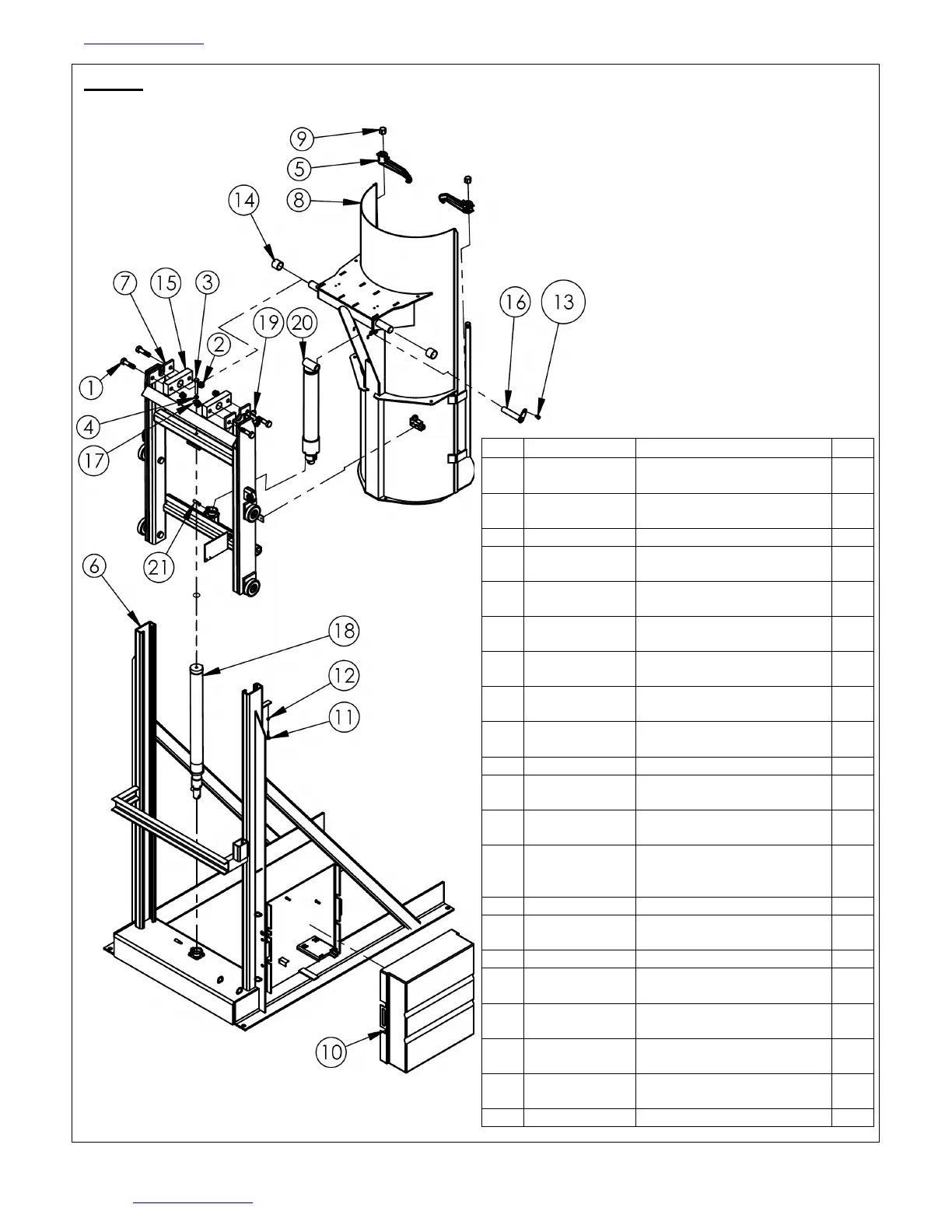

FIG. 9: HLD-94-10-S & HLD-94-15-S Exploded View and Bill of Materials
(09-006-099)
Item
Part No.
Description
Qty.
1 12365
3/4-10 X 3 HHCS # 5 PLAIN,
GRADE 5
4
2 37039
NYLOCK NUT Z PLATED,
GRADE 2, Ø3/4 - 10
4
3
12217
1/2-13 X 3.5 HHCS #5
1
4 33625
LOCK WASHER, MEDIUM
SPLIT, PLAIN FINISH, 1/2"
1
5 09-537-013
ASSEMBLY,PIPE
CLAMP,CASTING
2
6 09-514-100
WELDMENT, BASE,
STATIONARY
1
7 09-538-025
SUB-ASSEMBLY, CARRIAGE
W/ ROLLERS, STATIONARY
1
8 09-545-030
WELDMENT, SUB-ASSEMBLY,
CHUTE
1
9 09-145-020
SPECIALTY HARDWARE, HEX
PIPE CAP
2
10
04-024-001
POWER UP, RED COVER
1
11 22805
ELEVATOR BOLT, GRADE A,
LIMIT SWITCH
1
12 36102
HEX NUT, GRADE A, ZINC
PLATED, 1/4-20
1
13 32416
THREAD CUTTING SCREW,
SLOTTED, TYPE F, ZINC
PLATED, 5/16-18 X 3/4
1
14
09-113-039
SPACER, HINGE
2
15 09-512-003
SUB-ASSEMBLY, HINGE
BLOCK
2
16
24-612-003
WELDMENT, CYLINDER PIN
1
17 33012
FLAT WASHER, LOW
CARBON, ZINC FINISH, 1/2"
1
18 99-021-912-001
CYLINDER, HYDRAULIC, Ø1
1/2" x 48", TELESCOPIC STYLE
1
19 01-022-021
SWITCH, LIMIT, TOP
PLUNGER
2
20 99-021-909-001
CYLINDER, HYDRAULIC, Ø2
1/2" x 18" RAM STYLE
1
21
01-118-001
BOLT, CYLINDER RETAINING
2
