rev. 11/13/2013 HDU-C, Manual
Copyright 2013 Vestil Manufacturing Corp. Page 10 of 11
8. Install the arms. Regardless of whether you purchased inclined or straight arms, the arms will all
have a post bracket on one end and a material retention plate on the other end (see FIG. 5A. Attach
the arm pieces (HSA; HIA; HDSA; or XHDSA-type) to the posts. Be sure to attach arms at the
same level on both posts so that material stored on the rack will be level. To fasten an arm to a
post:
a. Align the 4 bolt holes in the post bracket with the appropriate bolt holes in a post. The
material retention plate should point upwards.
b. Insert M24-2.0 x 40mm bolts through the post bracket and post, and attach them with M24
flat washers, M24 lock washers and M24 hex nuts (see FIG. 5B).
Maintenance:
At least once per month, inspect the rack:
1. Check all hardware/fasteners to verify that all nuts, bolts and washers are in normal condition
and are securely fastened together.
2. Look for damage or corrosion that might compromise the structural integrity of any beam or
upright frame piece. If any structural damage is present, immediately tag the rack out of
service. Replace all damaged components and do not use the rack again until it has been fully
restored to normal condition.
3. Verify that all racks are level, plumb and square.

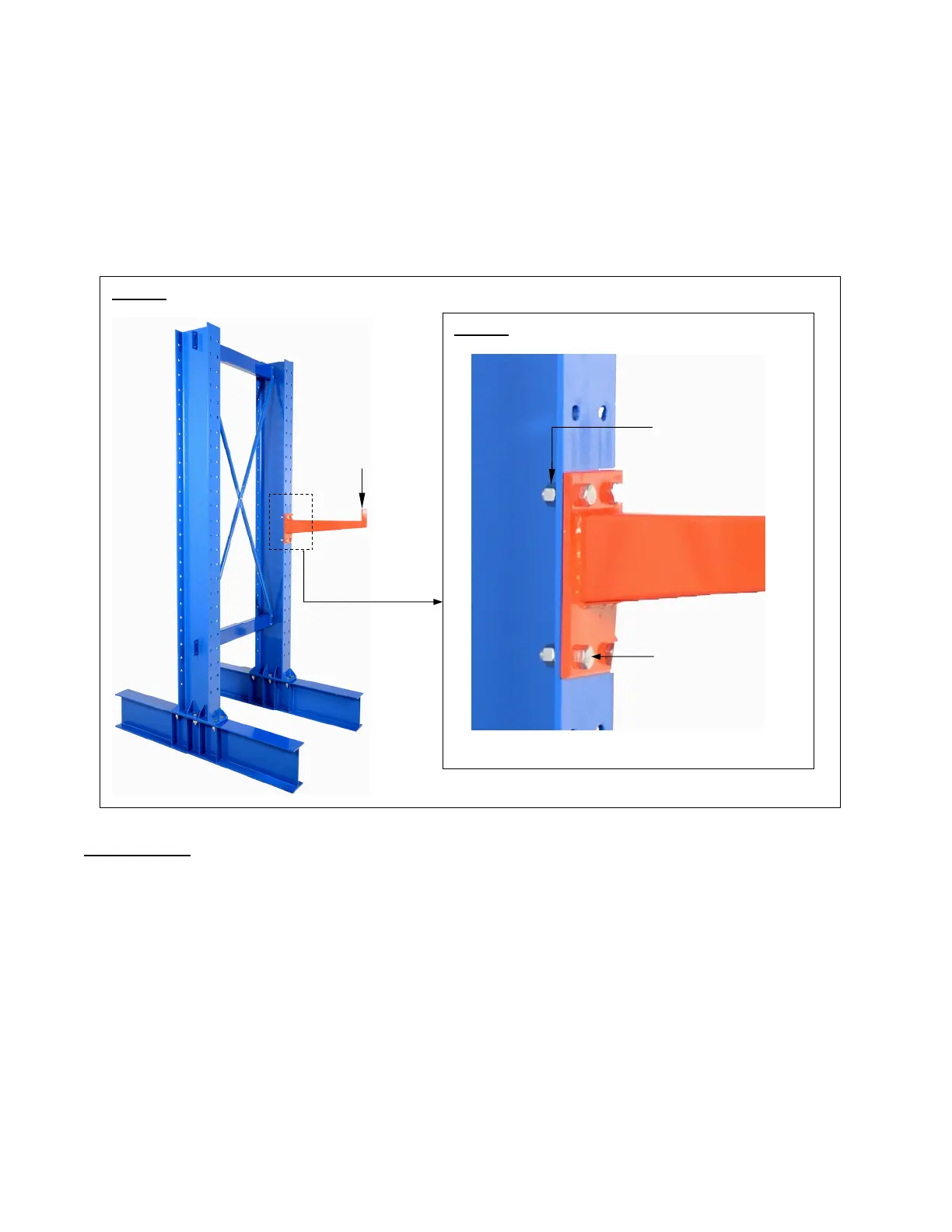

FIG. 5A: Complete assembly
FIG. 5B: Arm-to-post attachment
Post
bracket
Material
retention
plate
Post
bracket
Locking bar
Pin
M24-2.0 x 40mm
bolt
M24 flat washer;
M24 lock washer; &
M24 hex nut
