TABLE OF CONTENTS Rev. 11/3/2021 FPG, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 6 of 11
ASSEMBLING THE CRANE
Numbers in parentheses () correspond to parts numbers in the EXPLODED VIEWS on pages 4 and 5.
Tighten all beam clamp bolt-and-nut connections to 50-52ft∙lb with a torque wrench.
Unit conversions: 1” = 2.54cm 2.2 lb. = 1kg.
WARNING
If the crane is improperly assembled, it might malfunction and result in serious personal injuries. Read this
instruction manual in its entirety before assembling the crane.
• ONLY qualified personnel should assemble the crane.
• DO NOT modify the crane in any way. Unapproved modifications might make the crane unsafe to use
and automatically void the LIMITED WARRANTY on p. 11.
• DO NOT use the crane if you notice that either post, the I-beam, and/or base frame are damaged.
Damage might weaken the crane and result in crane collapse.
• DO NOT use the crane if any of the hardware (bolts, nuts, yokes, etc.) is damaged or missing. Contact our
TECHNICAL SERVICE AND PARTS DEPARTMENT at (260) 665-7586 to order replacement parts.
NOTICE
• Modifying the crane in any way automatically voids the LIMITED WARRANTY.
• This crane must be sheltered from weather. DO NOT install the crane where it is exposed to the elements.
• Inspect the crane for damage before each use as described in Inspections & Maintenance.

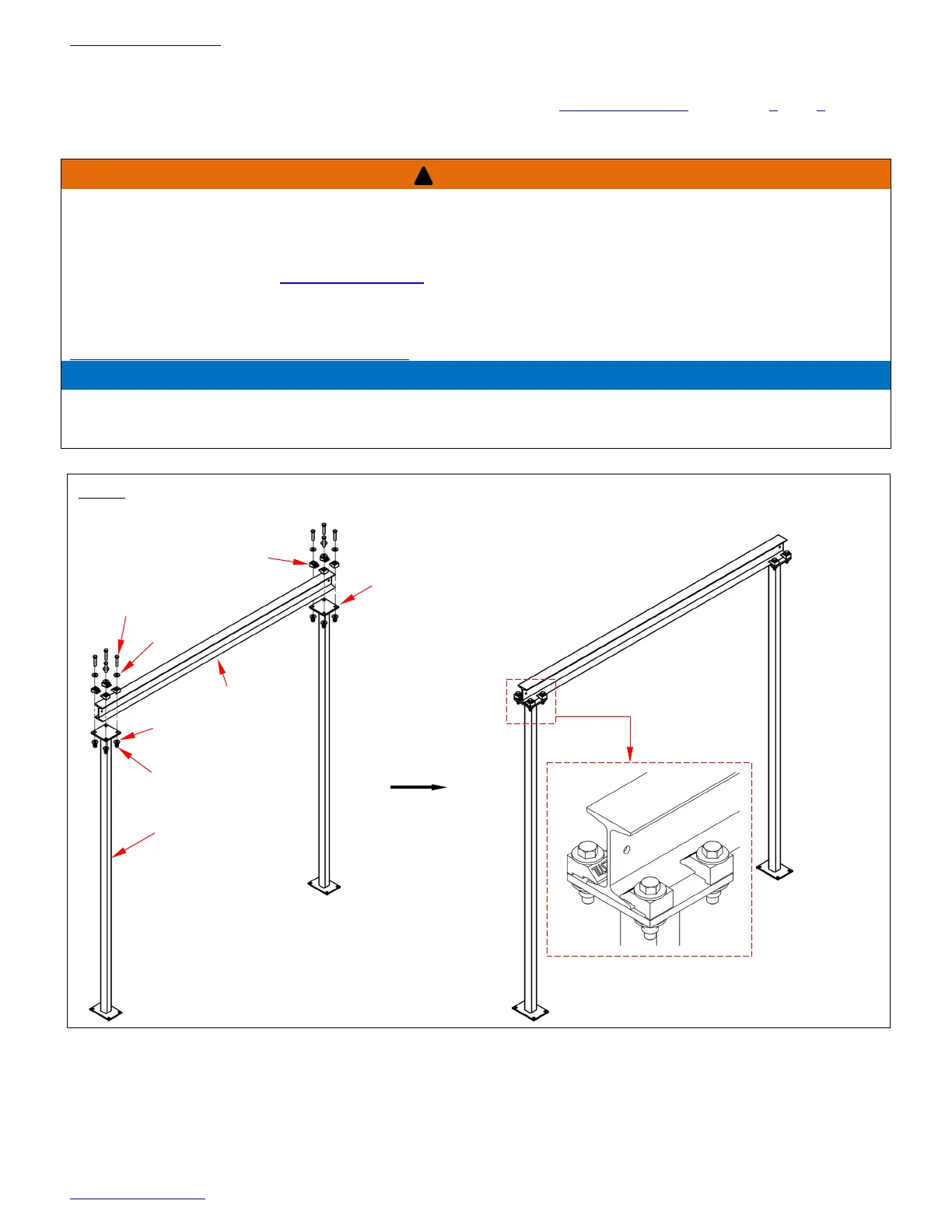

Step 1: Attach the I-beam to the beam mounting brackets of the front posts with
1
/
2
” hardware as shown
in the diagrams below. Tighten the fasteners to 50-52 ft∙lb with a torque wrench.
37030
33012
33012
13213
Post
I-Beam
Beam mounting
bracket
28-145-002
!
