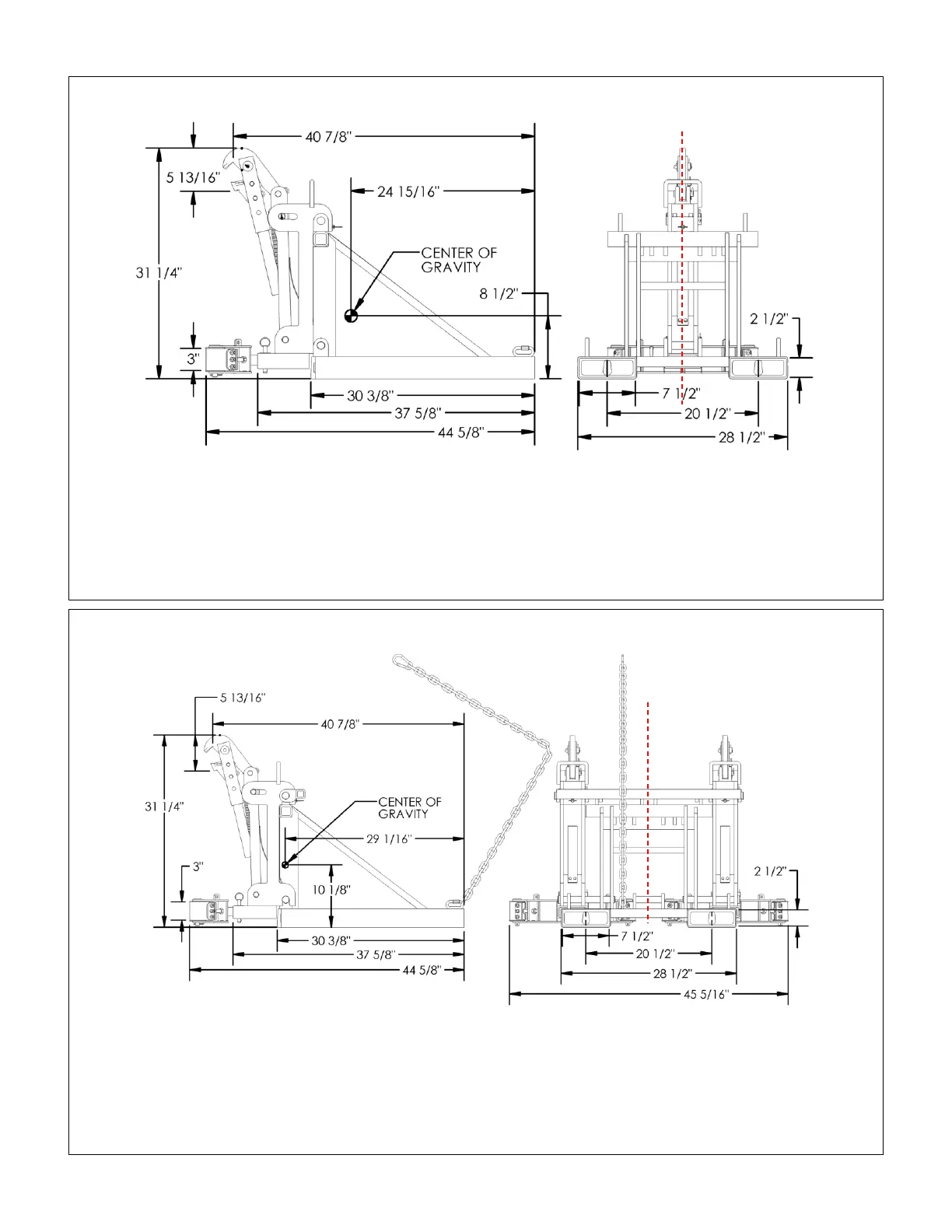

FMDL-1-LDS-B1 DIMENSIONS AND CENTERS OF GRAVITY (40-007-101)
FMDL-2-LDS-B1 DIMENSIONS AND CENTERS OF GRAVITY
Horizontal center of gravity (HCG): 24
15
/
16
inches (~63.3cm) from the open ends of the fork pockets
(middle graphic above) and 14
1
/
4
” inches from the outermost edges of the fork pockets (dotted line in
first graphic above).
Vertical center of gravity: 8
1
/
2
inches (~21.6 cm) from the top of the fork pockets.
NOTE: In order for the Eagle Beak™ mechanism to work properly, the drum and its contents must
weigh AT LEAST 50 lb. (~22.7kg).
14
1
/
4
” from outer edges
Horizontal center of gravity (HCG): 29
1
/
16
inches (~73.8 cm) from the open ends of the fork pockets
(middle graphic above) and 14
1
/
4
” inches from the outermost edges of the fork pockets (dotted line in
first graphic above).
Vertical center of gravity: 10
1
/
8
inches (~25.7 cm) from the top of the fork pockets.
NOTE: In order for the Eagle Beak™ mechanism to work properly, the drum and its contents must
weigh AT LEAST 50 lb. (~22.7kg).
14
1
/
4
” from
outer edges
Net weight:
295 lb.
(134.1kg)
Net weight:
304 lb.
(138.2kg)
