Table of Contents Rev. 9/25/2023 FMDL MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 8 of 20

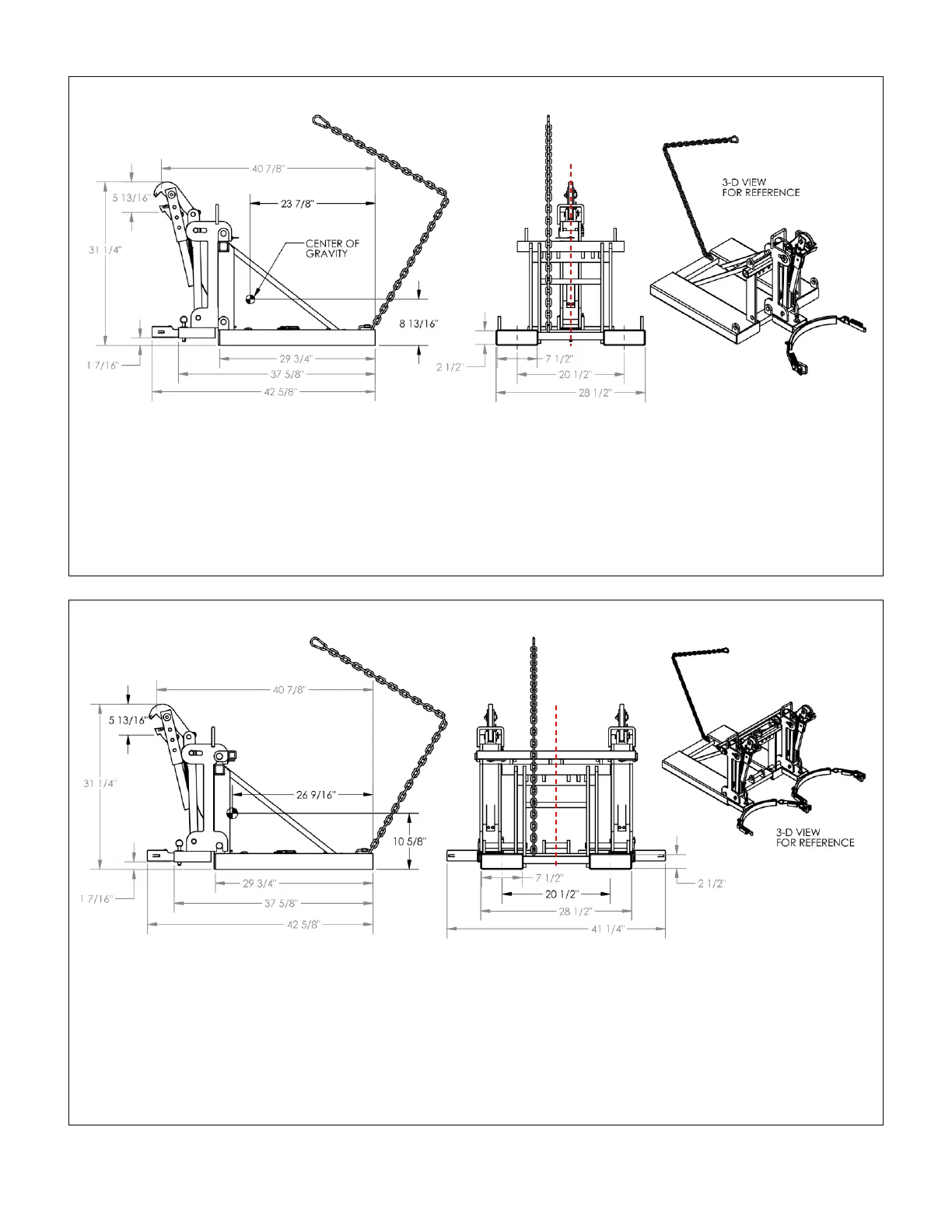

FMDL-1 CENTER OF GRAVITY DIAGRAMS (40-007-006)
FMDL-2 CENTER OF GRAVITY DIAGRAMS (40-007-004)
Horizontal center of gravity (HCG): 23
7
/
8
inches (~60.6 cm) from the open ends of the fork
pockets and 14
1
/
2
” inches from the outermost edges of the fork pockets (dotted line in
middle graphic above).
Vertical center of gravity: 8
13
/
16
inches (~22.4 cm) from the top of the fork pockets.
NOTE: In order for the Eagle Beak™ mechanism to work properly, the drum and its contents must
weigh AT LEAST 50 lbs. (~22.7kg).
Horizontal center of gravity (HCG): 26
9
/
16
inches (~67.5 cm) from the open ends of the fork
pockets and 20
5
/
8
” (~52.4 cm) from the outermost edges of the drum lifter (dotted line in
middle graphic above).
Vertical center of gravity: 10
5
/
8
inches (~27.0 cm) from the top of the fork pockets.
NOTE: In order for the Eagle Beak™ mechanism to work properly, each drum and its contents
must weigh AT LEAST 50 lbs. (~22.7kg).
20
5
/
8
” from
outer edges
14
1
/
4
” from
outer edges
