Table of Contents Rev. 9/25/2023 FMDL MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 10 of 20
Horizontal center of gravity (HCG):
22
7
/
8
inches (~58.1cm) from the open ends of the fork pockets; and
14¼ inches (~36.2cm) from the outer edge of each fork pocket (halfway between the fork pockets).
Vertical center of gravity:
10 inches (~25.4cm) from the bottom of the fork pockets.
Horizontal center of gravity (HCG):
23
1
/
8
inches (~58.7cm) from the open ends of the fork pockets; and
14¼ inches (~36.2cm) from the outer edge of each fork pocket (halfway between the fork pockets).
Vertical center of gravity:
9 inches (~22.9cm) from the bottom of the fork pockets
Horizontal center of gravity (HCG):
25½ inches (~64.8cm) from the open ends of the fork pockets; and
13¼ inches (~33.7cm) from the outer edge of each fork pocket (halfway between the fork pockets).
Vertical center of gravity:
11 inches (~23cm) from the bottom of the fork pockets

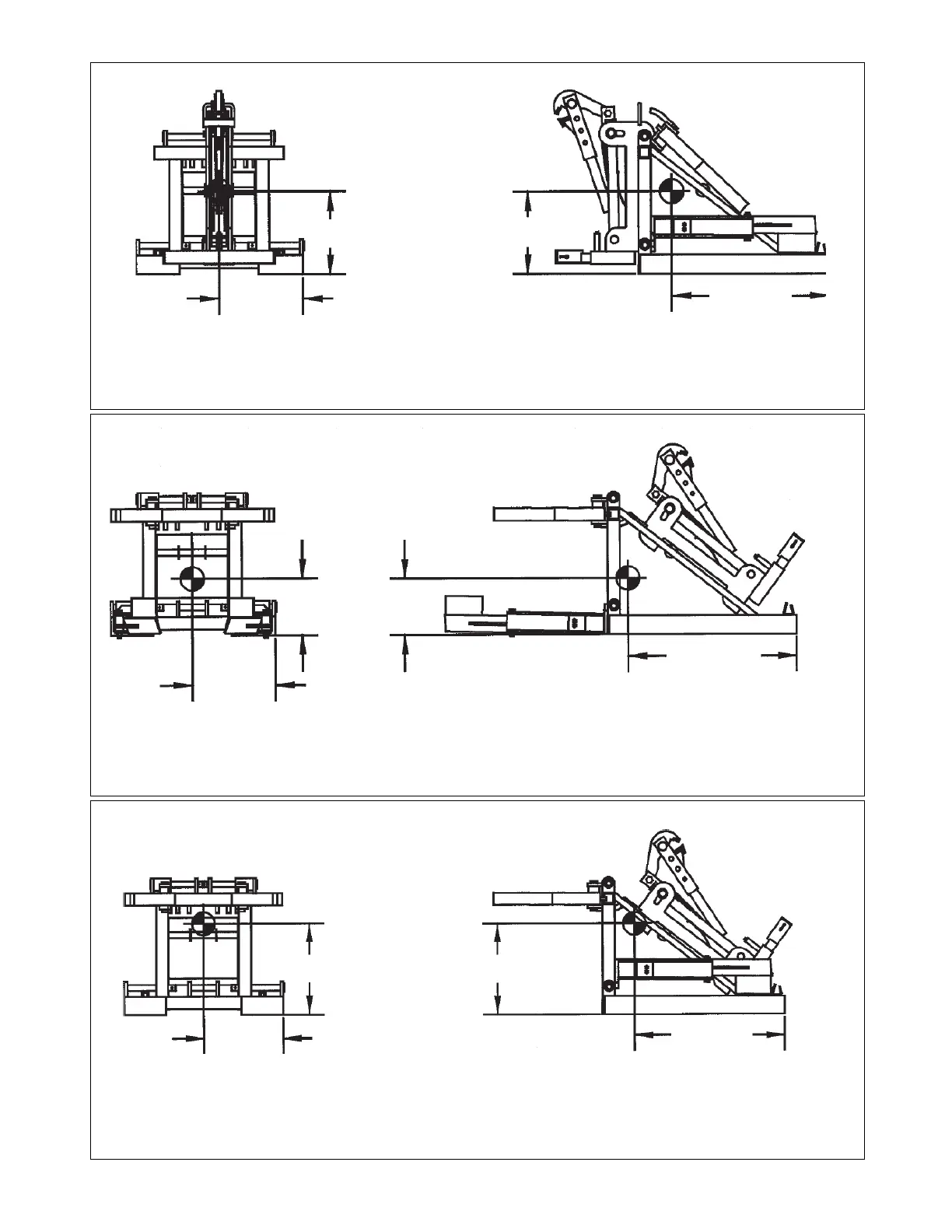

DFDL EAGLE BEAK CENTER OF GRAVITY DIAGRAM (40-007-005)
22
7
/
8
”
10”
10”
14¼”
DFDL-3 LOWER DRUM GRIPPING ARMS CENTER OF GRAVITY DIAGRAM
23
1
/
8
”
14¼”
9”
9”
DFDL-3 UPPER DRUM GRIPPING ARMS CENTER OF GRAVITY DIAGRAM
25½”
9
7
/
8
”
9
7
/
8
”
13¼”
