STEP 15 (docks with no steel edge). You must install a steel approach plate (not included with product) to
provide a welding surface for the dock leveler. Select the approach ramp that sets the dock height to 50”±1”.
DO NOT operate a dock leveler that has not been welded to the dock. Contact your supplier or Vestil
Manufacturing to select the approach plate suitable for your application.

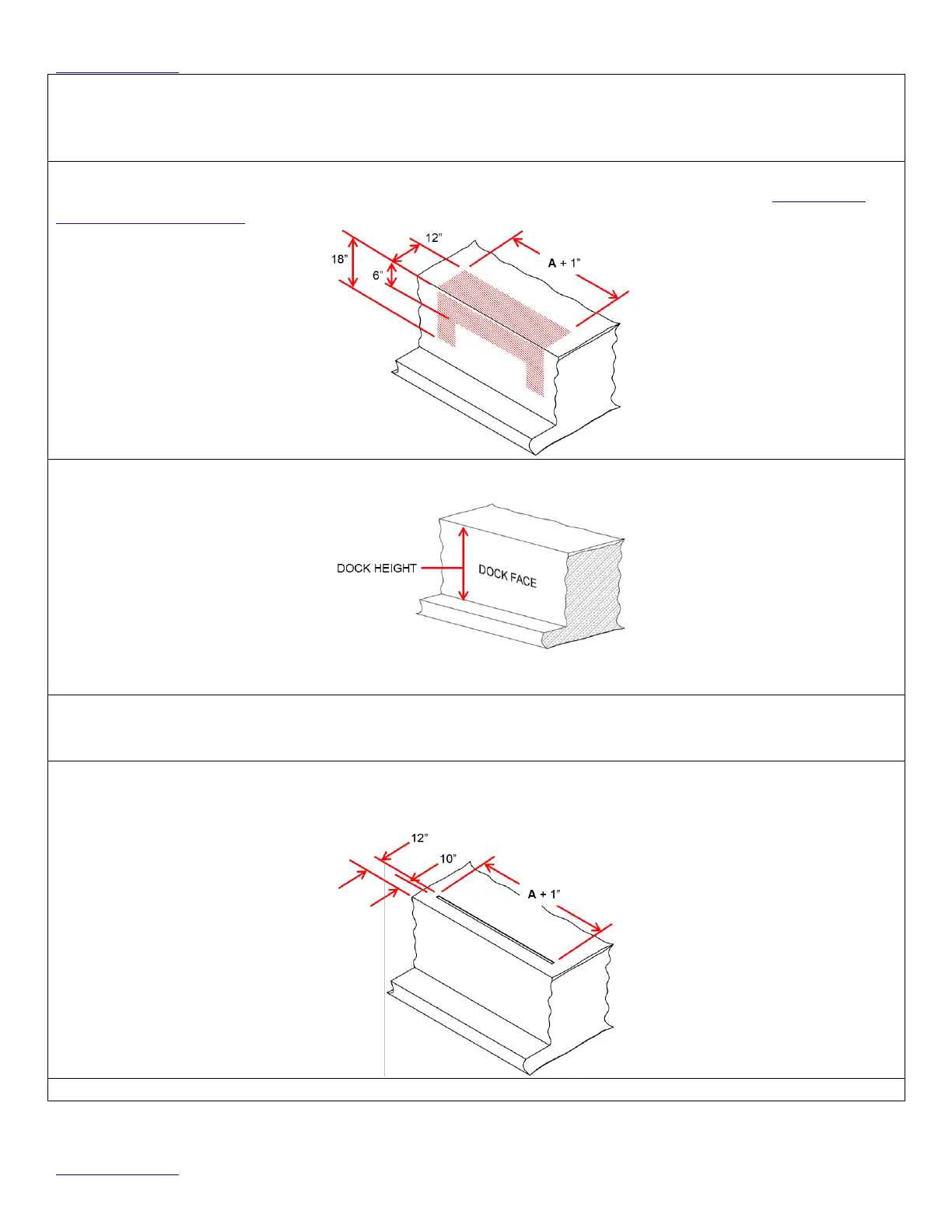

STEP 16. Make sure the dock face and dock floor are smooth. Remove all material and protrusions from the
dock face and dock floor in the region depicted in the illustration. Dimension “A” is found in the MOUNTING
DIMENSIONS on page 7.
STEP 17. Measure the height of the dock, from the edge of the dock to the driveway surface below the dock
edge.
Height of dock edge is 50”±1”, … … … Proceed to Step 18
Height of dock edge is less than 50” … … … Installation not recommended
STEP 18. Determine if cartons or pallets will slide across the dock leveler into a truck.
Cartons and pallets will slide across dock leveler Proceed to Step 19
Only rolling traffic will cross the dock leveler Proceed to Step 21
STEP 19. The approach plate must be recessed into the dock floor to allow objects to slide across the ramp.
Locate and mark the center of the dock where the ramp is to be mounted. Mark two chalk lines parallel to the
dock edge, one at 10” and the other at 12”. Each will be 1” longer than the approach plate
STEP 20. Use a rotary hammer drill to cut a groove, 2” wide and 3/8” deep, between the chalk lines.
