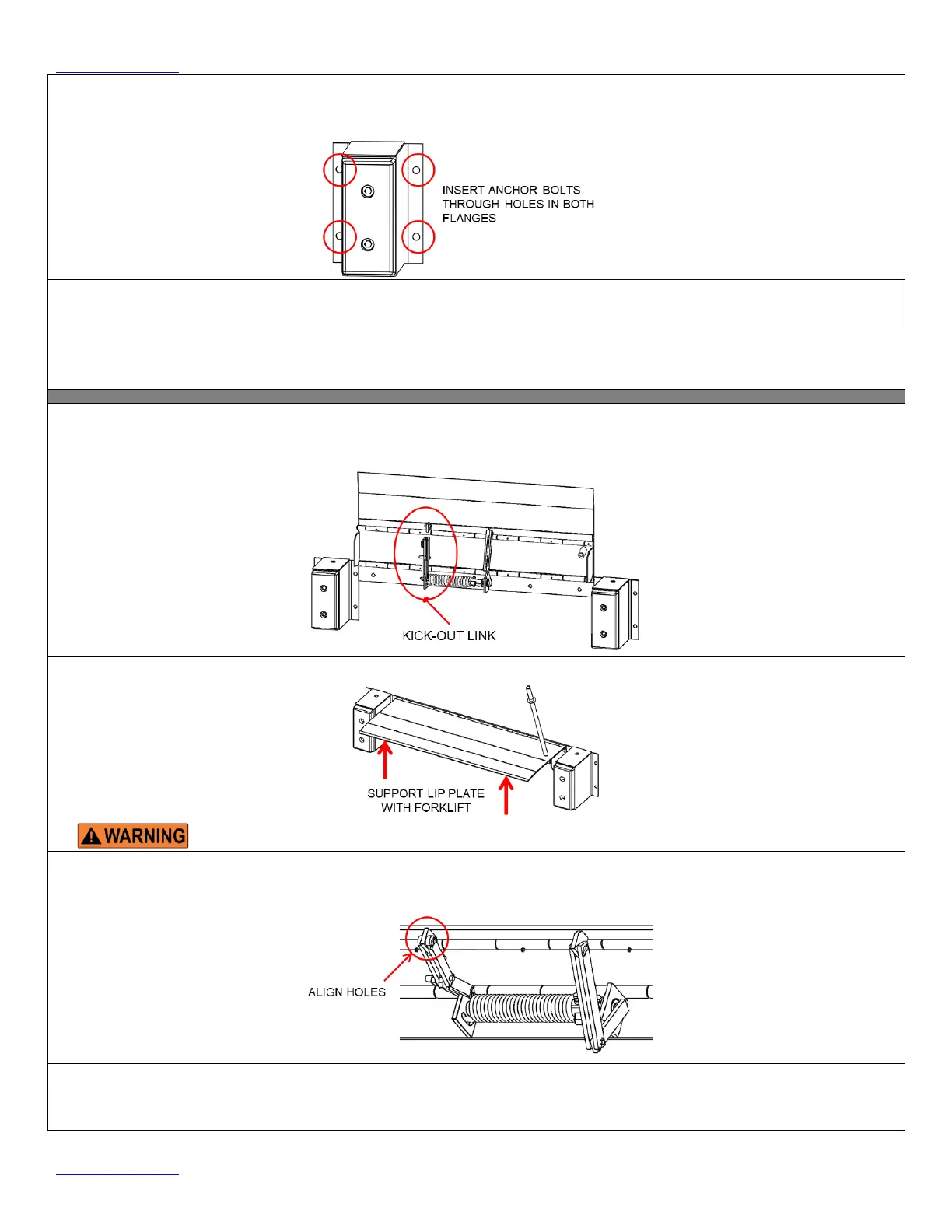

STEP 24. Install a dock bumper on each side of the leveler. Holding the box in position, first weld its top edge
to the approach plate. Next, insert ¾” × 5” anchor bolts, backed by ¾” flat washers, through each of the four
flange holes. Do not tighten the bolts at this time.
STEP 25. Tighten the anchor bolts in this order: mounting plate to dock face (four total); bumper box to dock
face (eight), and; approach plate to dock floor (six).
STEP 26. Weld the anchor bolts to the approach plate. Use a grinder to round the bolt heads smooth.
Proceed to Step 27 to complete the installation
STEP 27 (completing the installation). Your Edge-O-Dock leveler is shipped with its kick-out link
disconnected from the lip plate. This must be installed for the dock leveler to function properly. The kick-out link
is on the right side (with respect to the trailer) of the dock leveler.
STEP 28. Position a lift truck to lift the lip plate to a horizontal position.
DO NOT work directly under lift truck forks.
STEP 29. Remove the cotter pin and the clevis pin from the loose end of the kick-out link.
STEP 30. Align the ends of the kick-out link with the mounting bracket on the lip plate. It may be necessary to
adjust the lip plate height so the kick-out link can reach this bracket.
STEP 31. Insert the clevis pin through the aligned holes. Secure with the cotter pin.
STEP 32. The Edge-O-Dock leveler incorporates a spring counterweight to reduce the effort required to lift the
dock plate. The spring must be tensioned at initial installation. This task requires two people to complete.
