ÃÏ
PCS.
PARTS LIST TO ASSEMBLE ROLLERS & DIVIDERS
120
3

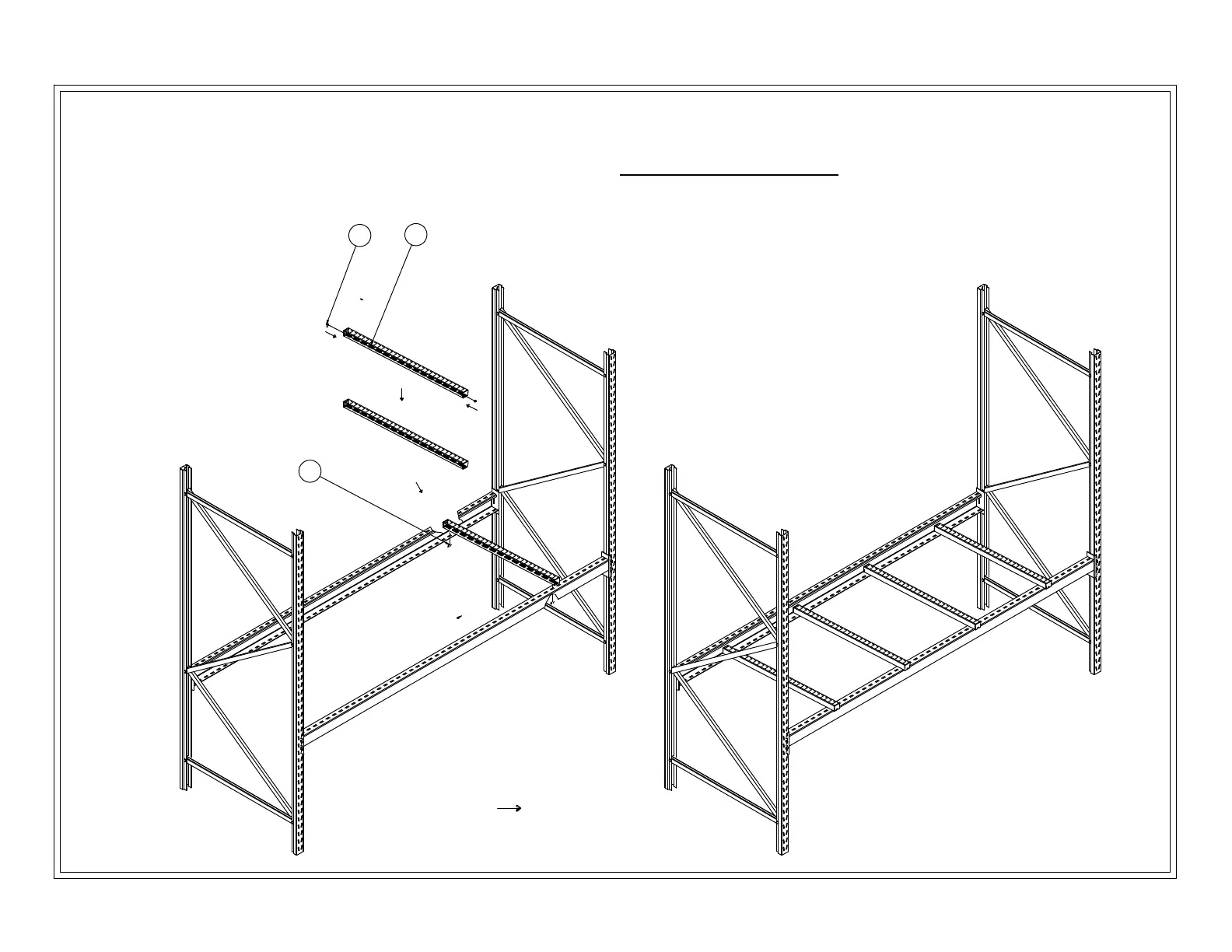

STEP 3:
1
FLOW-3-5: Total wing nuts
1 - 8 ROLLERS PER SHELF
FLOW-3-3: 24 ROLLERS
FLOW-3-4: 32 ROLLERS
FLOW-3-5: 40 ROLLERS
2 - 4 DIVIDERS PER SHELF (not shown in the drawing)
FLOW-3-3: 12 DIVIDERS
FLOW-3-4: 16 DIVIDERS
FLOW-3-5: 20 DIVIDERS
3 - M6X1.00X25mm BOLT - 16PCS/SHELF
FLOW-3-3: Total bolt 48 PCS.
FLOW-3-4: Total bolts 64 PCS.
FLOW-3-5: Total bolts 80 PCS.
4 - M6x1.00x10.00mm Shoulder bolt - 8PCS/DIVIDER (not shown in the
drawing)
FLOW-3-3: Total bolts 24 PCS.
FLOW-3-4: Total bolts 32 PCS.
FLOW-3-5: Total bolts 40 PCS.
5 - M6x1.00 WING NUT
FLOW-3-3: Total wing nuts 72 PCS.
FLOW-3-4: Total wing nuts 96 PCS.
5
1 - Assemble 8 rollers per shlef.
2 - Assemble 4 dividers per shelf.
