Rev. 0213 EPT, Manual.doc
Copyright 2013 Vestil Manufacturing Corp. Page 30 of 51
Step 5
: The cylinder is now completely disconnected from the EPT frame; remove the disconnected cylinder.
To install a new cylinder: perform steps 1 through 4 in reverse order with the replacement cylinder.
To repair the cylinder: follow the remaining steps.
Step 6

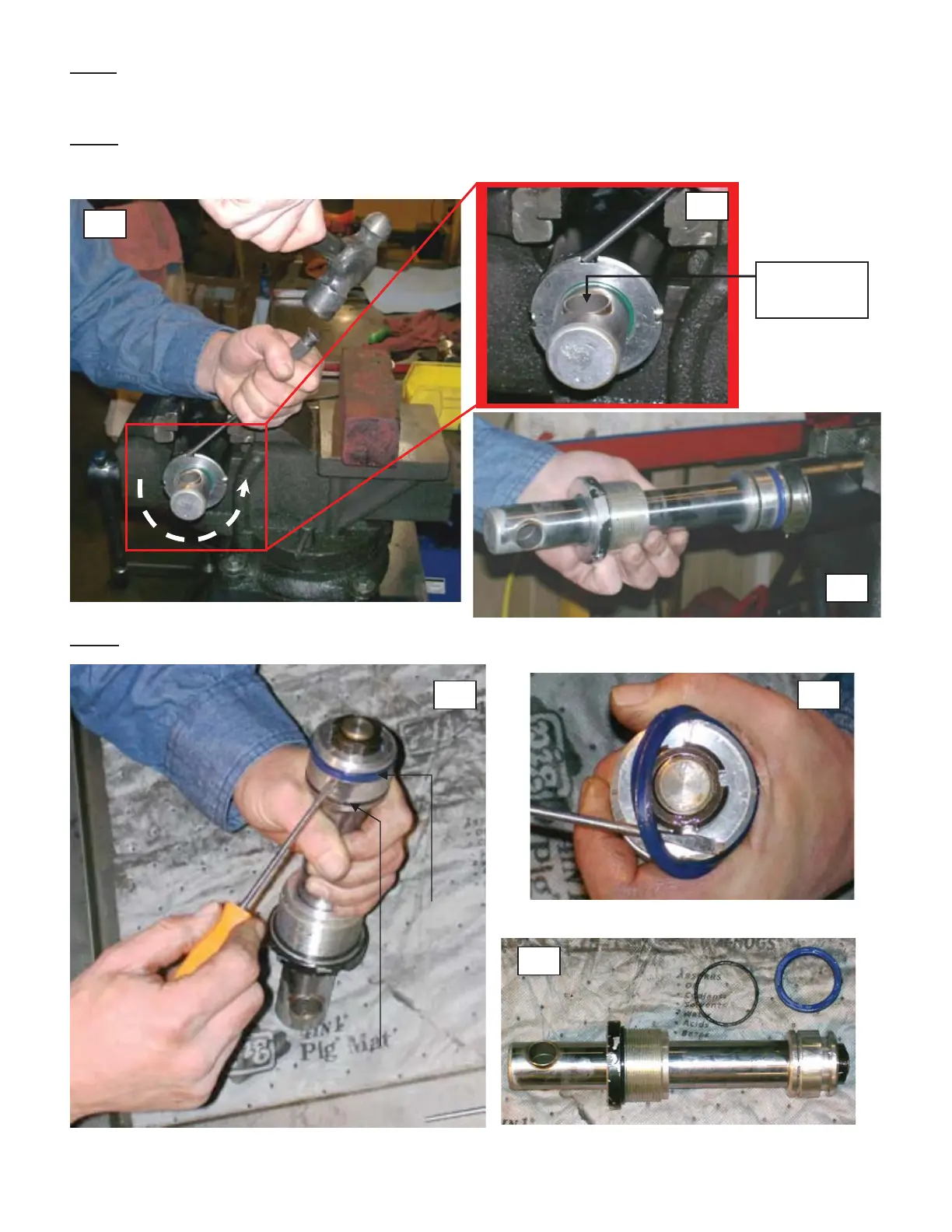

: Separate the piston rod from the barrel. To loosen the rod, immobilize the cylinder in a vise and use a flat
punch and a hammer to tap the cylinder head in a counterclockwise direction (see Photos 10 & 11). Once the
cylinder head loosens, you should be able to rotate it by hand to withdraw it from the barrel (see Photo 12).
Step 7: With a small screwdriver, remove the Seal and the O-Ring from the piston, both of which are identified in
Photo 13.
10
11
12
13 14
15
O-Ring
Seal
Retaining pin
opening in
piston rod
