Rev. 0213 EPT, Manual.doc
Copyright 2013 Vestil Manufacturing Corp. Page 10 of 51
Item No. Part No. Description Item No. Part No. Description
1001
EPT-30-SCL-1001
Fork Assembly 1018
EPT-30-SCL-1018
Sleeve Bearing 22 x 20
1002
EPT-30-SCL-1002
Nose Wheel Frame 1019
EPT-30-SCL-1019
Trunion Pivot Shaft
1003
EPT-30-SCL-1003
M10 x 65 Screw 1020
EPT-30-SCL-1020
Retaining Ring 16
1004
EPT-30-SCL-1004
Nose Wheel 1021
EPT-30-SCL-1021 Clevis Pin Sleeve Bearing 16 x 16
1005
EPT-30-SCL-1005
M10 Nut 1022-A
EPT-30-SCL-1022-A
Trunion (EPT-2547-30-SCL)
1006
EPT-30-SCL-1006
Retaining Ring 1022-B
EPT-30-SCL-1022-B
Trunion (EPT-2047-30-SCL)
1007
EPT-30-SCL-1007
Ball Bearing 6204z 1023
EPT-30-SCL-1023
M8 x 30 Screw
1008
EPT-30-SCL-1008
Drive/Load Wheel 75 x 90 1024
EPT-30-SCL-1024
Washer
1009
EPT-30-SCL-1009
Drive/Load Wheel Axle 1025
EPT-30-SCL-1025
M8 Nut
1010
EPT-30-SCL-1010
Roll Pin 5 x 30 1026
EPT-30-SCL-1026
Pin
1011
EPT-30-SCL-1011
Load Roller Bracket
Integral Scale Components
1012
EPT-30-SCL-1012
Load Roller Bracket Pivot Pin
4011
EPT-30-SCL-4011
Load Cell
1013
EPT-30-SCL-1013
Push Rod Pivot Pin 4012
EPT-30-SCL-4012
M12 x 45 Bolt
1014
EPT-30-SCL-1014
Push Rod (Owner must provide
measurement)
4013
EPT-30-SCL-4013
12mm Spring Washer
1015
EPT-30-SCL-1015
M22 x 1.5 Lock Nut 4014
EPT-30-SCL-4014
Washer
1016
EPT-30-SCL-1016
Push Rod Clevis 4015
EPT-30-SCL-4015
Weighing Forks
1017
EPT-30-SCL-1017
Clevis Pin 4016
EPT-30-SCL-4016
M12 x 38 Bolt

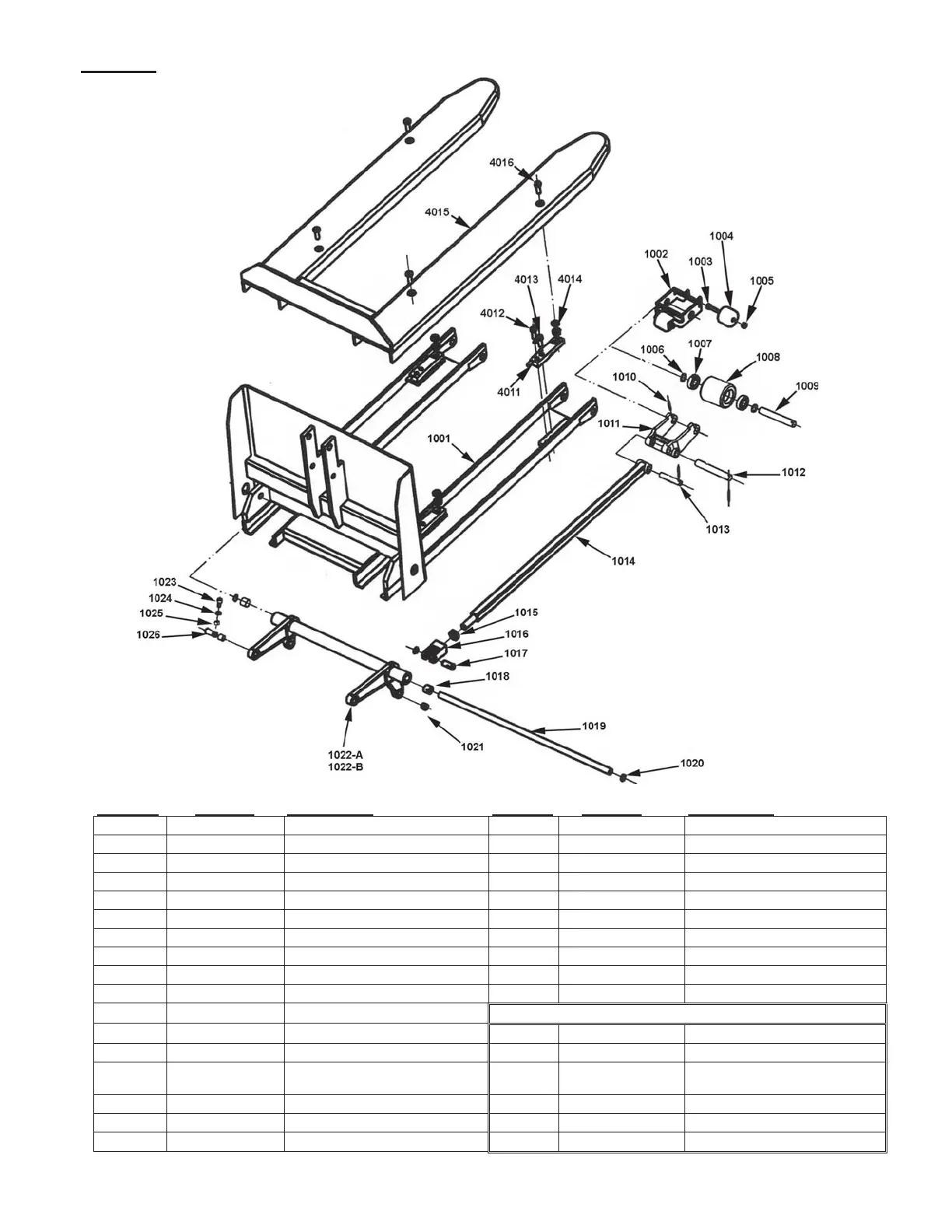

FIG. 4B: EPT-30 MODELS FORKS AND CARRIAGE WITH INTEGRATED SCALE
