TABLE OF CONTENTS 5/19/2022 EPT MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Page 38 of 58

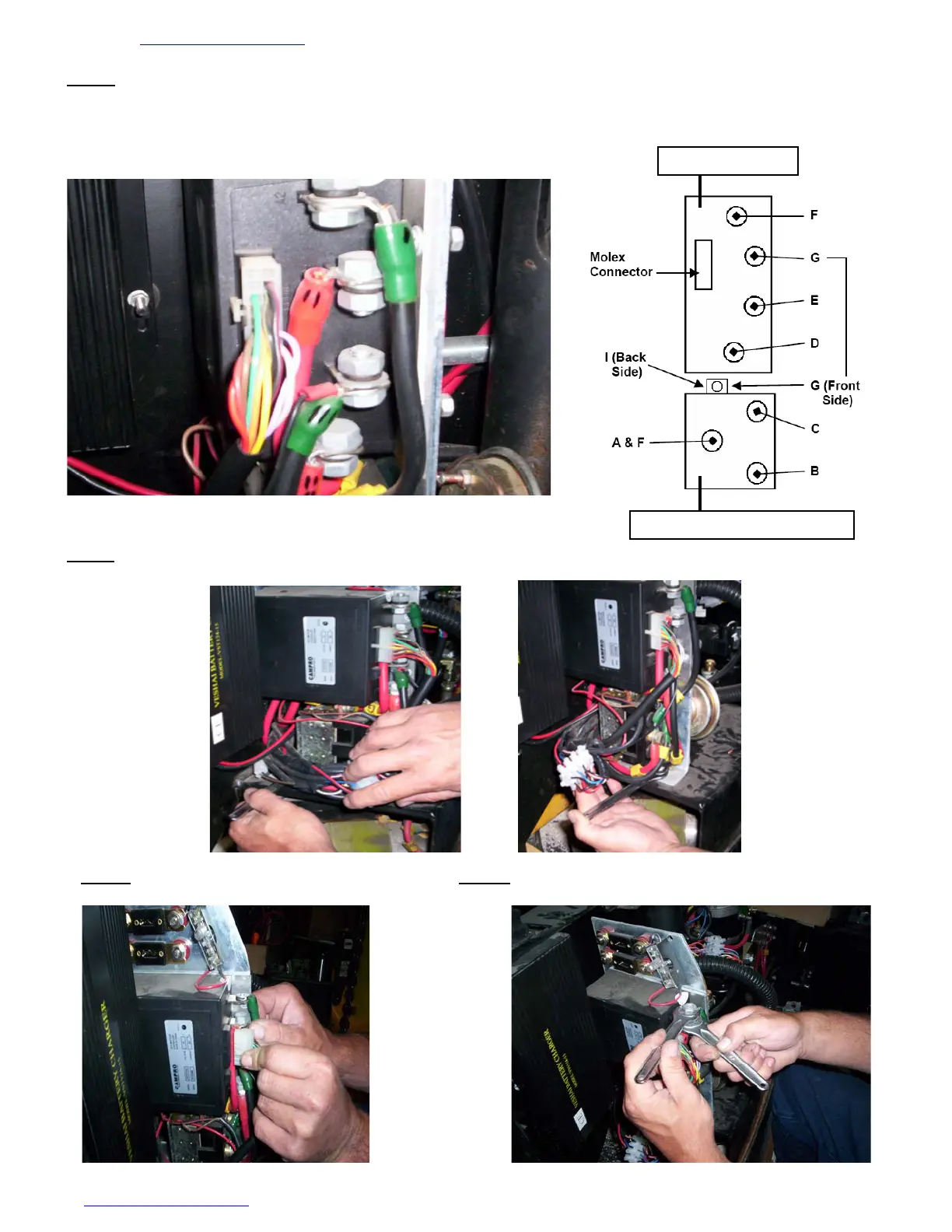

Step 3: Remove the two (1 front, 1 back) 14mm bolts that fasten the motor controller mounting plate (identified with a
yellow asterisk) to the frame.
Step 2: If necessary, mark each of the cables with a unique identifier to make it easier to reconnect them to the new
motor controller. For instance, in the photograph below the red and green insulated ring terminals display a distinct
number of hash marks to indicate order of attachment from top to bottom. In newer EPT’s, a yellow tag marked with a
specific letter identifies each cable. The diagram below and to the right indicates where cables A through I attach to
the Motor Controller or the Forward/Reverse Contactor.
Step 4: Remove the Molex connector from
the motor controller.
*
Step 5: Disconnect the motor controller wiring with two
14mm wrenches.
Motor Controller
Forward/Reverse Contactor
