TABLE OF CONTENTS 5/19/2022 EPT MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Page 31 of 58

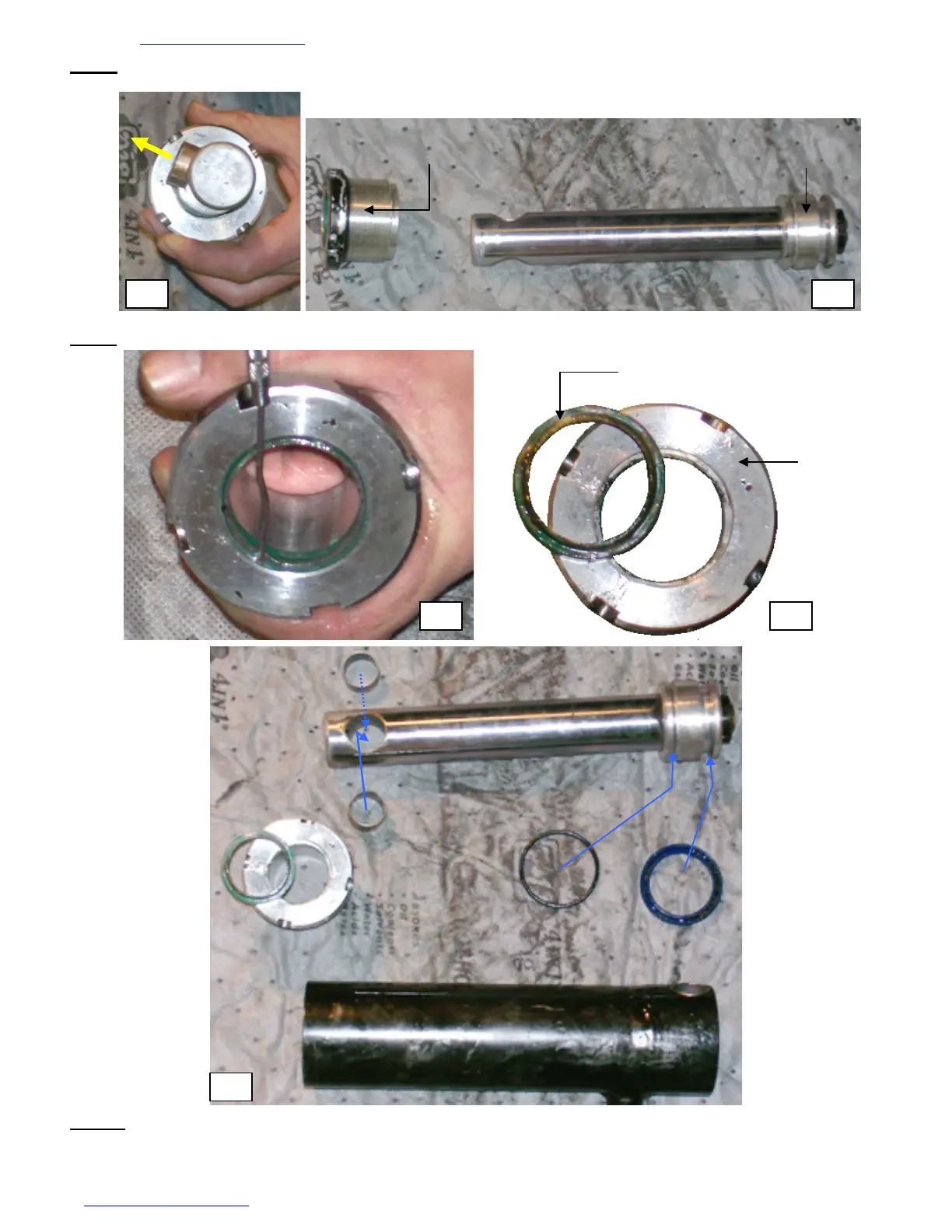

Step 8: Remove the bushings from the top of the cylinder rod, (see Photo 16; Note: In the photograph, one bushing
has already been removed.) Slide the cylinder head off of the piston rod.
Step 9: Remove the internal seal (photo 18 & 19). Photo 20 shows a fully disassembled cylinder.
Step 10: Replace the seals; then perform steps 1 through 9 in reverse order to reassemble the cylinder and to
refasten it to the pallet truck.
16
17
18
19
20
O-Ring
Outer
Seal
Bushing
Inner
Seal
Cylinder
Head
Cylinder Barrel
Inner Seal
Cylinder
Head
Piston Rod
Piston
Piston
Piston Rod
Cylinder Head
