TABLE OF CONTENTS 5/19/2022 EPT MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Page 5 of 58
Item No.
Part No.
Description
Item No.
Part No.
Description
2001
EPT-30-2001
Main Body Housing
2021
EPT-30-2021
22mm Snap Ring
EPT-30-2001-2
Housing Screw
2022
EPT-30-2022
10mm Washer
2002
EPT-30-2002
Battery Cover
2023
EPT-30-2023
M10 x 22 Screw
2003
EPT-30-2003
Battery (2 per unit)
2024
EPT-30-2024
Bolt
2004
EPT-30-2004
Battery Charger (OEM)
2025
EPT-30-2025
Bolt
EPT-30-2004-2
Replacement Charger (OEM
Unit)
2026
EPT-30-2026
Wheel 76 x 36
EPT-CORD
Battery Charger Cord
2027
EPT-30-2027
M12 Nut
2005
EPT-30-2005
M6 Spring Washer
2028
EPT-30-2028
Wheel Frame
2006
EPT-30-2006
M6 Nut
2029
EPT-30-2029
Shaft
2007
EPT-30-2007
24V Battery Charge Gauge
2030
EPT-30-2030
Bushing
2008
EPT-30-2008
Key Switch
2031
EPT-30-2031
Bearing Plate
2009
EPT-30-2009
Emergency Stop Switch
2032
EPT-30-2032
Bearing 30205
EPT-30-KSA
Key Switch Assembly
2033
EPT-30-2033
Bearing Plate
2010
EPT-30-2010
M6 Flat Washer
2034
EPT-30-2034
Ball Bearing 6205
2011
EPT-30-2011
M6 x 25 Bolt
2035
EPT-30-2035
25mm Washer
2012
EPT-30-2012
Set Pin
2036
EPT-30-2036
M10 Nut
2013
EPT-30-2013
Pivot Link Arm
2037
EPT-30-2037
8mm Washer
2014
EPT-30-2014
Bushing
2038
EPT-30-2038
Fixed Ring
2015
EPT-30-2015
16mm Snap Ring
2039
EPT-30-2039
Link Rod
2016
EPT-30-2016
Main Body
2040
EPT-30-2040
Bolt
2017
EPT-30-2017
20mm Snap Ring
2041
EPT-30-2041
Mounting Plate
2018
EPT-30-2018
Bushing
2042
EPT-30-2042
8mm Washer
2019
EPT-30-2019
Cylinder Pivot Pin, Upper
2043
EPT-30-2043
Bolt
2020
EPT-30-2020
Cylinder Pivot Pin, Lower
2044
EPT-30-2044
Wheel Stabilizer Assembly
2045
EPT-30-2045
Upper Travel Limit Switch

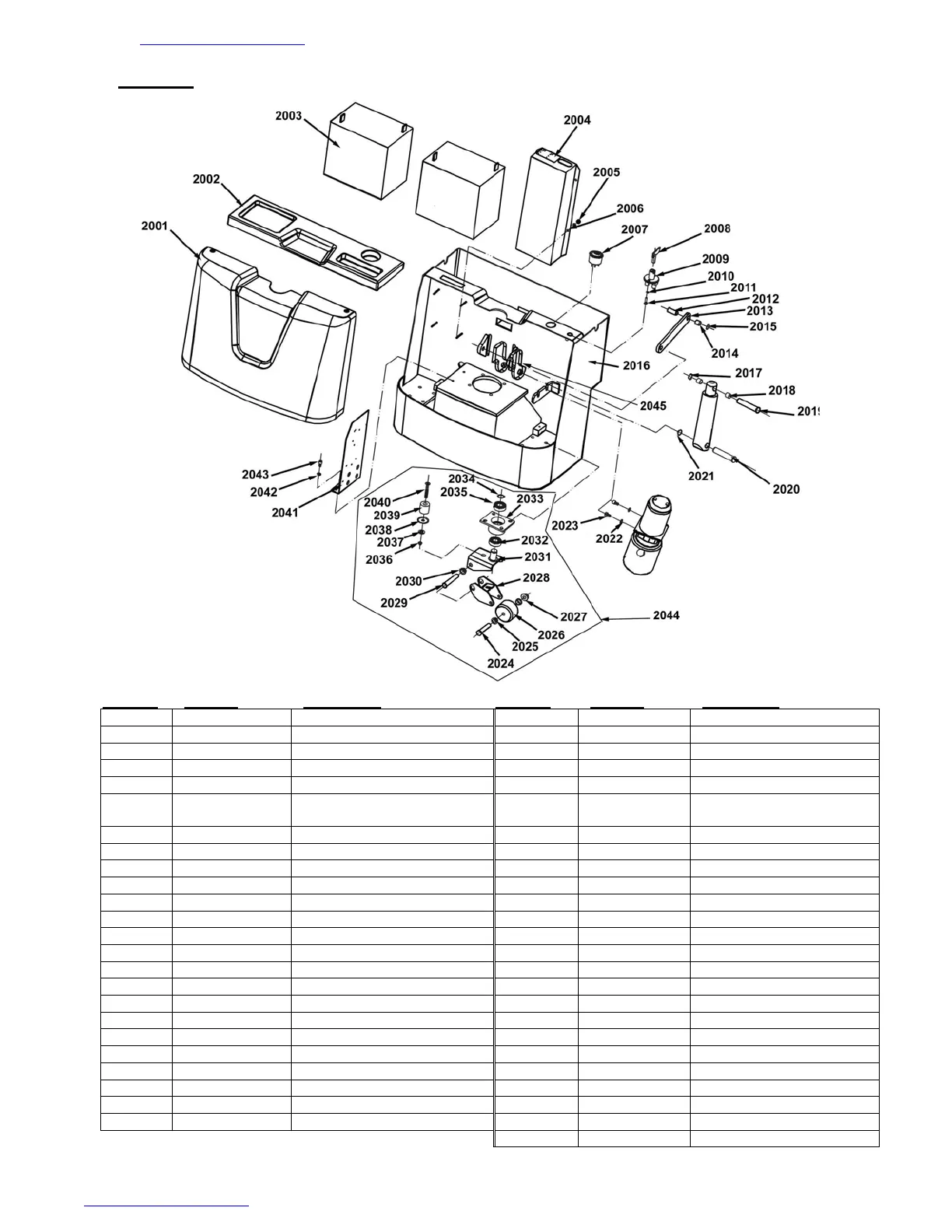

FIG.
1A:
EPT-30
M
ODELS
M
AIN
B
ODY
C
OMPONENTS
