TABLE OF CONTENTS 5/19/2022 EPT MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Page 36 of 58
Step 11: Press and hold the switch cover; then slide the assembly down the handle tongue. The tab slot of the switch
cover must wrap around the tabs on both sides of the handle.
Step 12: Make sure that the wires tuck securely inside the tiller handle; then press the assembly and handle together. Do
not crush wires between the two parts as they come together. Fasten the assembly to the handle with the three 5mm
Allen head bolts removed in Step 1.
Tab
Tab
22
23
Tab slot in
the switch
cover

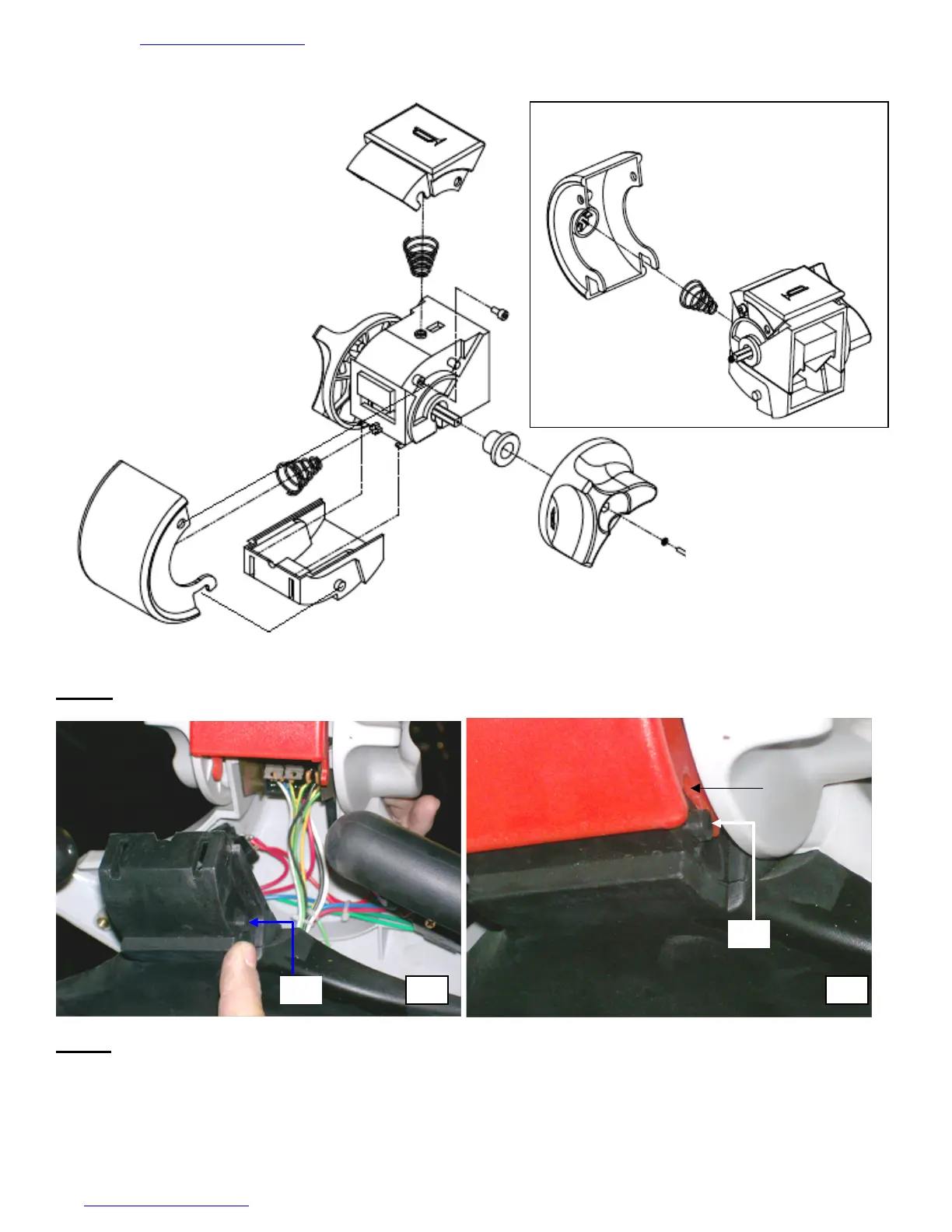

E
XPLODED
P
ARTS
V
IEW OF
B
ELLY
S
WITCH
A
SSEMBLY
F
IG
.
3:
R
OTATED
V
IEW OF
B
ELLY
S
WITCH
MECHANISM
