Rev. 0213 EPT, Manual.doc
Copyright 2013 Vestil Manufacturing Corp. Page 41 of 51

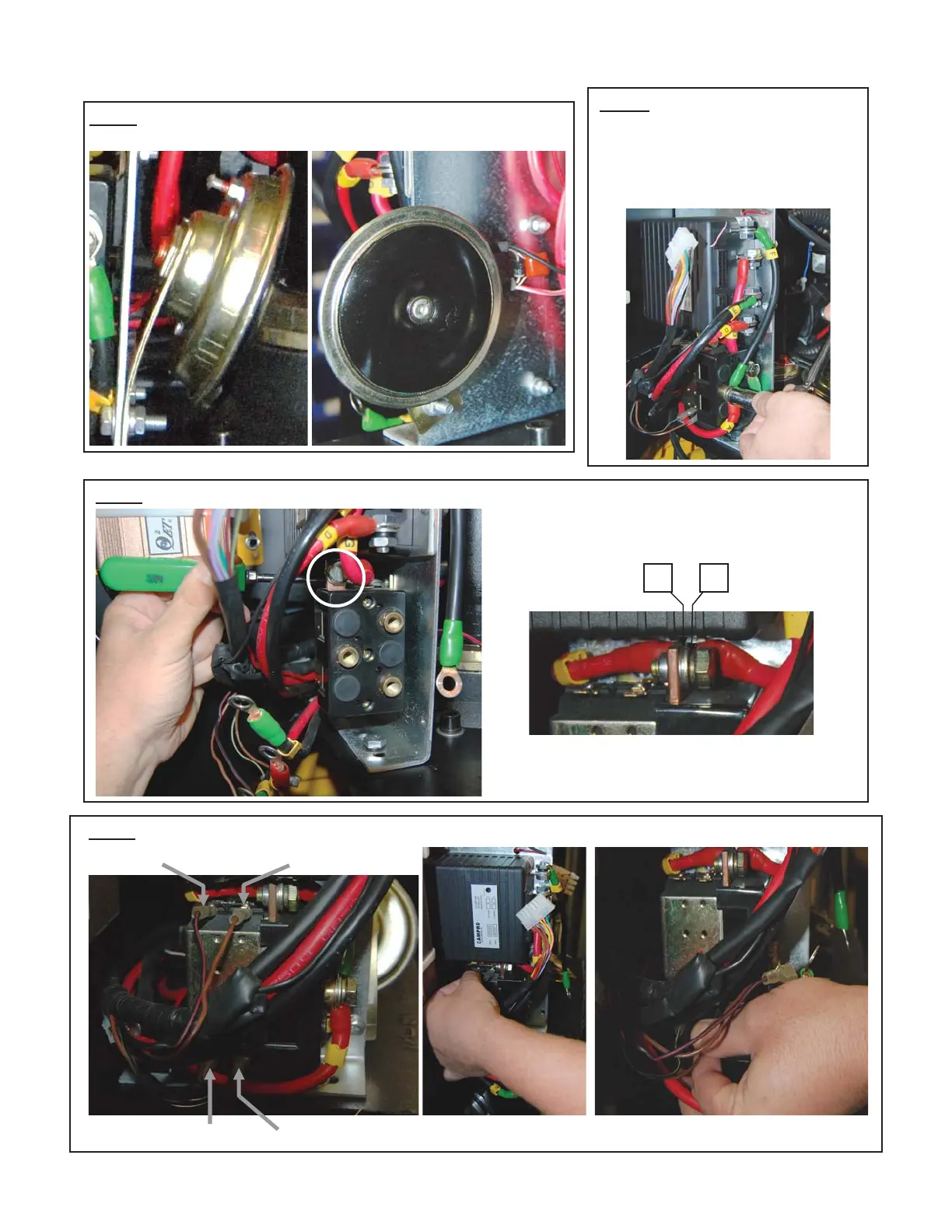

Step 3: Use 10mm wrenches (or adjustable wrenches) to disconnect
the horn from the mounting plate.
Step 4: Disconnect cables B, A, F,
and C from the FRC, using either a
9/16 inch crescent wrench (or
socket) or a 14mm wrench.
[Photograph below shows
disconnection of A & F cables.]
Step 4: Disconnect cables I and G from the terminal on the top side of the FRC.
Close-up side view of the terminal on
top of the FRC.
I G
Step 5: Disconnect the spade terminals (locations shown in photograph below).
Red & Black wire Orange wire
Orange wire Green & Black wire
