TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 21 of 35

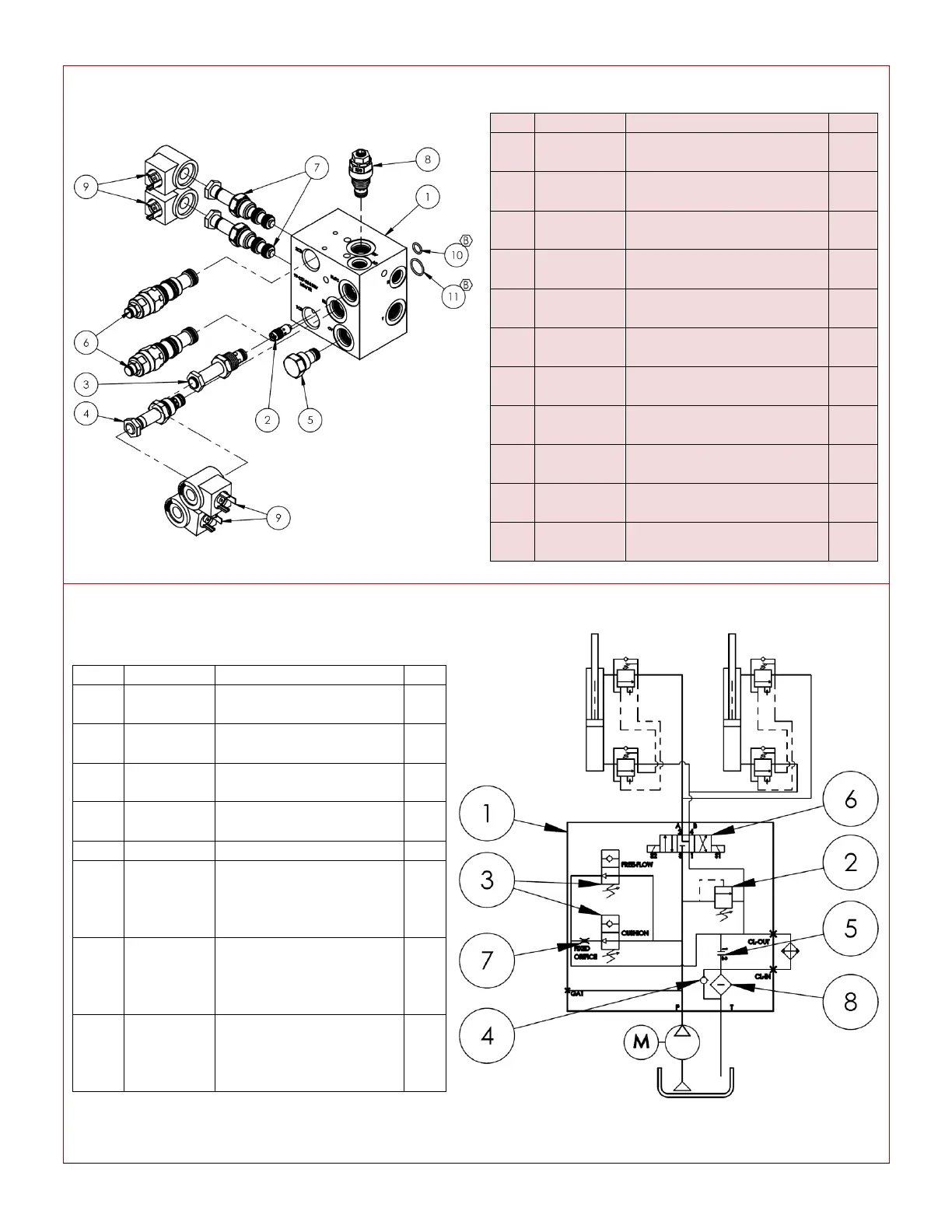

230V AC, 1.5 HP, 1 PH, Manifold Assembly (99-627-034 Rev. B).
Hydraulic Schematic (99-627-034 Rev. B).
ITEM
PART NO.
DESCRIPTION
QTY.
1
99-127-034
MANIFOLD, SINGLE AND
DOUBLE ACTING
1
2
99-153-040-
001
FLOW CONTROL, PRES.
COMP., 2.0 GAL.
1
3
99-153-015
VALVE SOLENOID,
STANDARD
1
4
99-153-098
VALVE, HYDRAULIC, N.C.,
2-POSITION 2-WAY
1
5
99-153-011
CHECK VALVE, SIZE 08,
NOSE-IN/SIDE-OUT
1
6
99-153-057
VALVE, COUNTER
BALANCE
2
7
99-153-017
VALVE, CARTRIDGE, 2
POS., 3 WAY
2
8
99-153-006
VALVE, PRESSURE RELIEF,
210 BAR
1
9
99-034-008
COIL WITH DIN
CONNECTOR
4
10
99-144-008
O-RING, MANIFOLD, 1/2"
OD
1
11
99-144-009
O-RING, MANIFOLD, 3/4"
OD
1
ITEM
PART NO.
DESCRIPTION
QTY.
1
99-127-040
MANIFOLD, DOUBLE
ACTING, HIGH CYCLE
1
2
99-153-006
VALVE, PRESSURE RELIEF,
210 BAR
1
3
99-153-064
cartridge valve,
Normally Open, size 8
2
4
99-153-068
VALVE, CHECK, NOSE-
IN/SIDE-OUT, 25 PSI
1
5
99-153-086
PLUG, CAVITY, VC08-2
1
6
99-153-090
DIRECTIONAL VALVE,
HYDRAULIC, DO3,
MOTOR CENTER,
SOLENOID OPERATED
1
7
99-119-012
SCREWS, MODIFIED,
5/16"-18 x 1/4" HEX
DRIVE CUP, SOCKET SET
SCREW
1
8
22-031-007
RESERVOIR, FILTER,
HYDRAULIC, SPIN-ON,
1"-12 THREAD, 10
MICRON
1
