TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 26 of 35
If the lift table will be installed in a pit, first determine where and how the electrical and/or hydraulic
connections will be made when the lift table is in place.
Tools And Supplies.
The following tools and supplies might be needed to install your Electric Hydraulic Scissor Lift Table. These
items are not supplied with the product.
A fork truck or hoist capable of unloading the left table and setting it in place.
A smooth, level concrete surface on which to mount the lift table.
Four concrete anchors. The customer is responsible for selecting anchors appropriate for the EHLTD
model and concrete floor conditions. DO NOT operate an unsecured lift table.
A power supply and electrical disconnect matching the motor’s voltage and current requirements. Refer
to the lift table’s data plate, labels on the control enclosure, and the electrical diagrams in this manual for
more information. The end-user is responsible for supplying the required ground-fault and short-circuit
protection on the supply. Motor overload protection is provided by a thermostat built into the motor.
Installation Dimensions.
When installing in a floor pit, provide clearance of at least 1/4”, but no more than 7/8”, on all sides.
Installation.
1. The platform must be lowered and fully supported under its frame when moved. Support the lift table
with straps or forks that span the entire width or length of the base frame. Remove the 4x4 wood
dunnage from the base. Use care to avoid damaging the electrical and hydraulic components in the
lift table.
2. Move the lift table into position.
3. Temporarily connect the power supply to the power cable supplied with the lift table. Raise the
platform to just below its fully raised height. Place both of the maintenance stops in the corners of the
base frame. Lower the platform until it is supported by the maintenance stops.
To raise the platform without using a power supply, use a hoist with straps or chain rigging, or a
forklift truck. Lift the platform from the hinged end (not the free end) of the platform. See
diagram below step 7. Take care not to damage the aluminum perimeter toe guard under
the platform. Use the 4x4 wood dunnage to secure the base while lifting the platform.
4. Anchor the frame to the floor through the four mounting holes in the frame.
5. Shim and/or grout the base frame. The entire base frame must be supported with no gaps in its
foundation for the lift table to function properly.
6. Have a qualified electrician make a permanent connection to the power supply.
7. Operate the lift table through several full raise and lower cycles. Verify that actuating the upper travel
limit switch (mounted on the base frame, near the left-side hinge) prevents further upward travel of
the platform. Verify that actuating the perimeter toe guard switches (under the platform) from any
side of the lift table prevents further downward travel of the platform. DO NOT place a lift table in
service if either of these devices isn’t functioning properly.

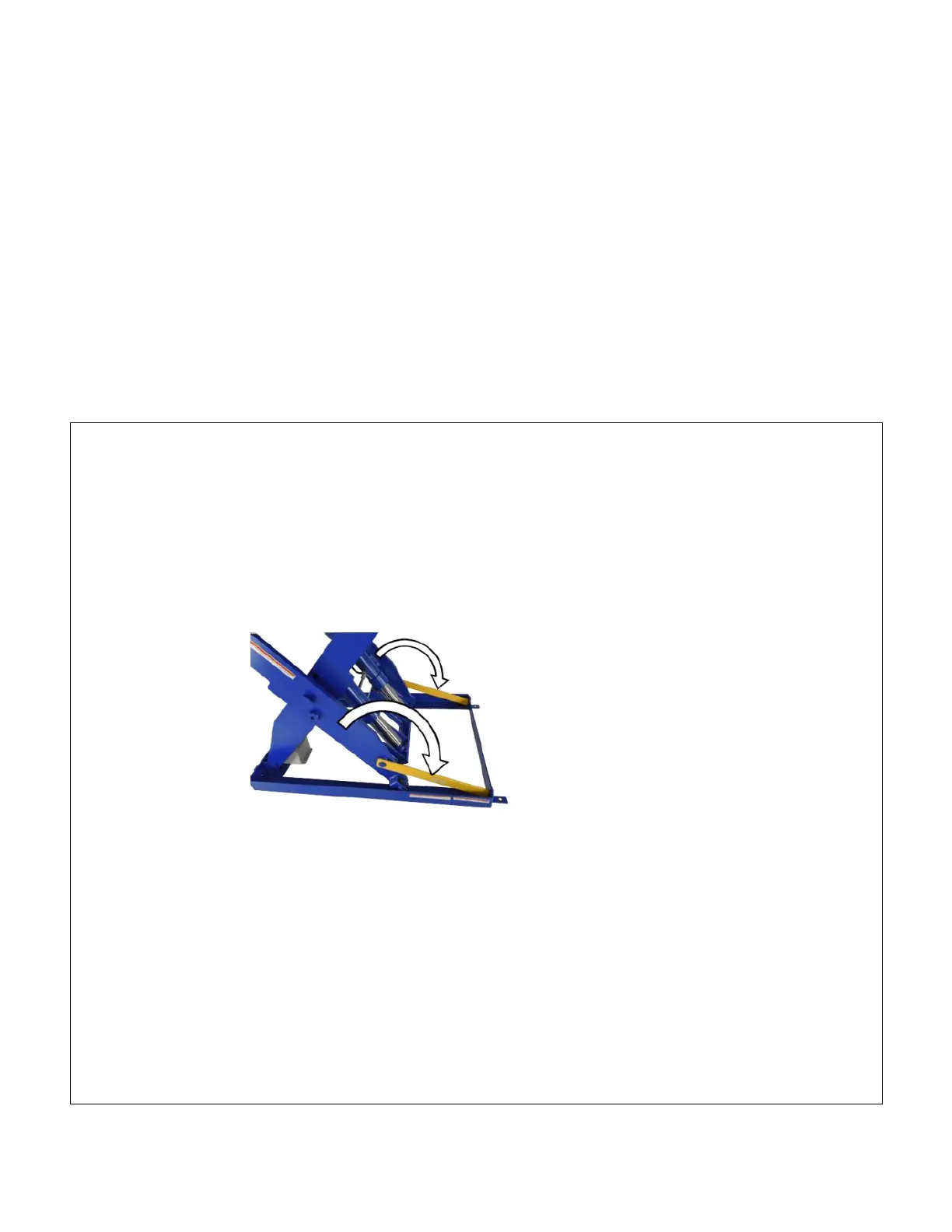

Lower platform until it is fully supported
by the (yellow) maintenance stops. The
stops should firmly contact the corners of
the base frame.
