TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 25 of 35

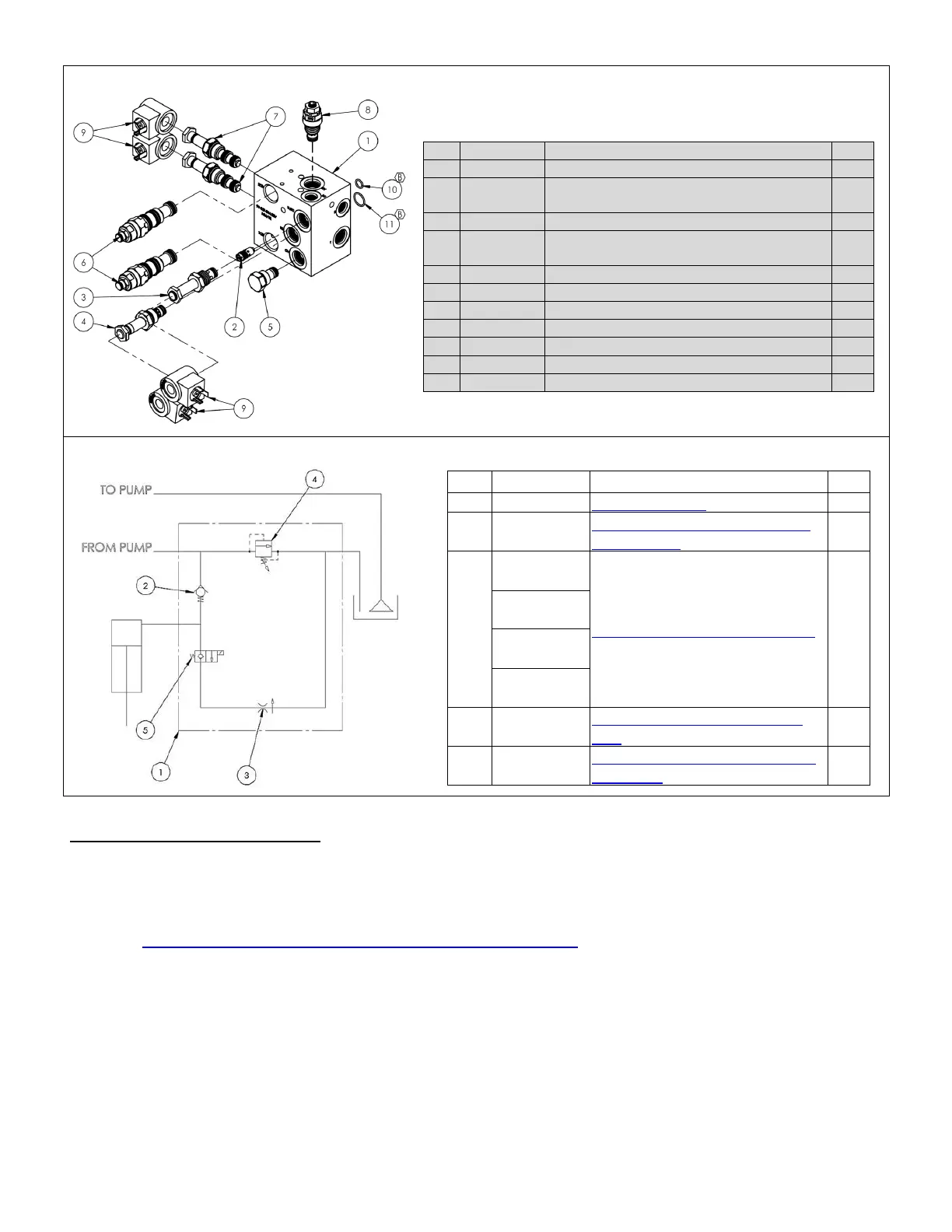

208-230V/460V AC, 2 HP, 3 PH, Manifold Assembly (99-627-024 Rev. B).
208-230V AC, 2 HP, 3 PH Power Unit Hydraulic Schematic (01-125-008).
INSTALLATING THE TABLE
Read the installation instructions in their entirety before installing the scissor lift table.
Consult the factory in the event of questions or problems at the time of installation.
Modifications or additions to the lift table, without prior approval by the manufacturer, automatically
void the warranty. Attaching ancillary equipment to the platform will lower its load capacity. See ANSI
standard MH29.1-2003, Safety Requirements for Industrial Scissor Lifts, Section 12.6.
The installation shall comply with all applicable regulations for its location and use.
The end user is responsible for verifying that this lift table and its installation are suitable for its environment
and application.
This lift table shall be installed only by qualified and trained personnel with access to appropriate
equipment. Electrical connections shall be performed by a qualified electrician.
Before You Begin.
The Electric Hydraulic Scissors Lift Table must be anchored to a smooth, level, and adequately strong
concrete surface.
ITEM
PART NO.
DESCRIPTION
QTY.
1
99-127-034
MANIFOLD, SINGLE AND DOUBLE ACTING
1
2
99-153-040-
001
FLOW CONTROL, PRES. COMP., 2.0 GAL.
1
3
99-153-015
VALVE SOLENOID, STANDARD
1
4
99-153-098
VALVE, HYDRAULIC, N.C., 2-POSITION 2-
WAY
1
5
99-153-011
CHECK VALVE, SIZE 08, NOSE-IN/SIDE-OUT
1
6
99-153-057
VALVE, COUNTER BALANCE
2
7
99-153-017
VALVE, CARTRIDGE, 2 POS., 3 WAY
2
8
99-153-006
VALVE, PRESSURE RELIEF, 210 BAR
1
9
99-034-008
COIL WITH DIN CONNECTOR
4
10
99-144-008
O-RING, MANIFOLD, 1/2" OD
1
11
99-144-009
O-RING, MANIFOLD, 3/4" OD
1
ITEM
PART NO.
DESCRIPTION
QTY.
1
01-127-010
MANIFOLD, LHL
1
2
99-153-011
CHECK VALVE, SIZE 08, NOSE-
IN/SIDE-OUT
1
3
0.5 GPM
99-153-049
FLOW CONTROL, PRES. COMP.
1
1.0 GPM
99-153-038
1.5 GPM
99-153-039
2.0 GPM
99-153-040
4
99-153-006
VALVE, PRESSURE RELIEF, 210
BAR
1
5
99-153-015
VALVE SOLENOID, STANDARD,
w/o COIL
1
