TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 27 of 35
8. Check the hydraulic oil level. It should be filled to within 1” to 1-½” of the reservoir’s fill port.
Note: The reservoir is an integral part of the scissor mechanism. If oil is needed, use an anti-wear
hydraulic oil with a viscosity grade of 150 SUS at 100°F (ISO 32 at 40°C) or a non-synthetic
automatic transmission fluid.
9. Clean up debris, spilled oil, etc. Verify that all of the labels applied to the table are in satisfactory
condition. See RECORD; p. 27.
RECORD OF SATISFACTORY CONDITION (THE “RECORD”)
After assembling and installing the scissor lift table, and before using it for the first time, make a record
describing its appearance. Thoroughly photograph the lift table from multiple angles, including all welds,
anchor points, and all labeling applied to it. Describe where each label is located. Cycle the platform up
and down by pressing the RAISE LIFT and RAISE LOWER buttons. Describe the motion of the cylinder(s),
platform, scissor legs, and rollers as the platform elevates and descends. Describe how the table sounds as
the platform elevates and lowers. Cycle the tilting platform by pressing the TILT RAISE and TILT LOWER
buttons. Describe the motion of the cylinder(s), tilting platform, linkages, and rollers as the tilting platform
elevates and descends. Describe how the tilting platform sounds as it elevates and lowers. Collect all
photographs and writings into a file. Mark the file appropriately to identify it. This record documents
satisfactory condition. Compare the results of future inspections to this RECORD to determine whether the
unit is in satisfactory condition. Do not use the table unless it is in satisfactory condition. Purely cosmetic
changes, like damaged paint or powder coat, do not constitute changes from satisfactory condition.
However, touchup paint should be applied to all affected areas as soon as damage occurs.
OPERATING THE TABLE
Consult ANSI standard MH29.1, Section 12 for the owner’s/user’s responsibilities regarding the operation,
care, and maintenance of this machine.
The end-user/owner shall ensure that operators
understand that they are responsible for operating the table
safely. The user shall also ensure that operators are
knowledgeable of, and observe, the safety rules and
practices in this section.
Standard EHLTT scissor lift tables are suitable for use indoors
in most non-classified industrial locations and many
commercial locations. It is intended to lift stable, evenly-
distributed, nonhazardous materials loads having a size or
footprint approximately the same size as the platform.

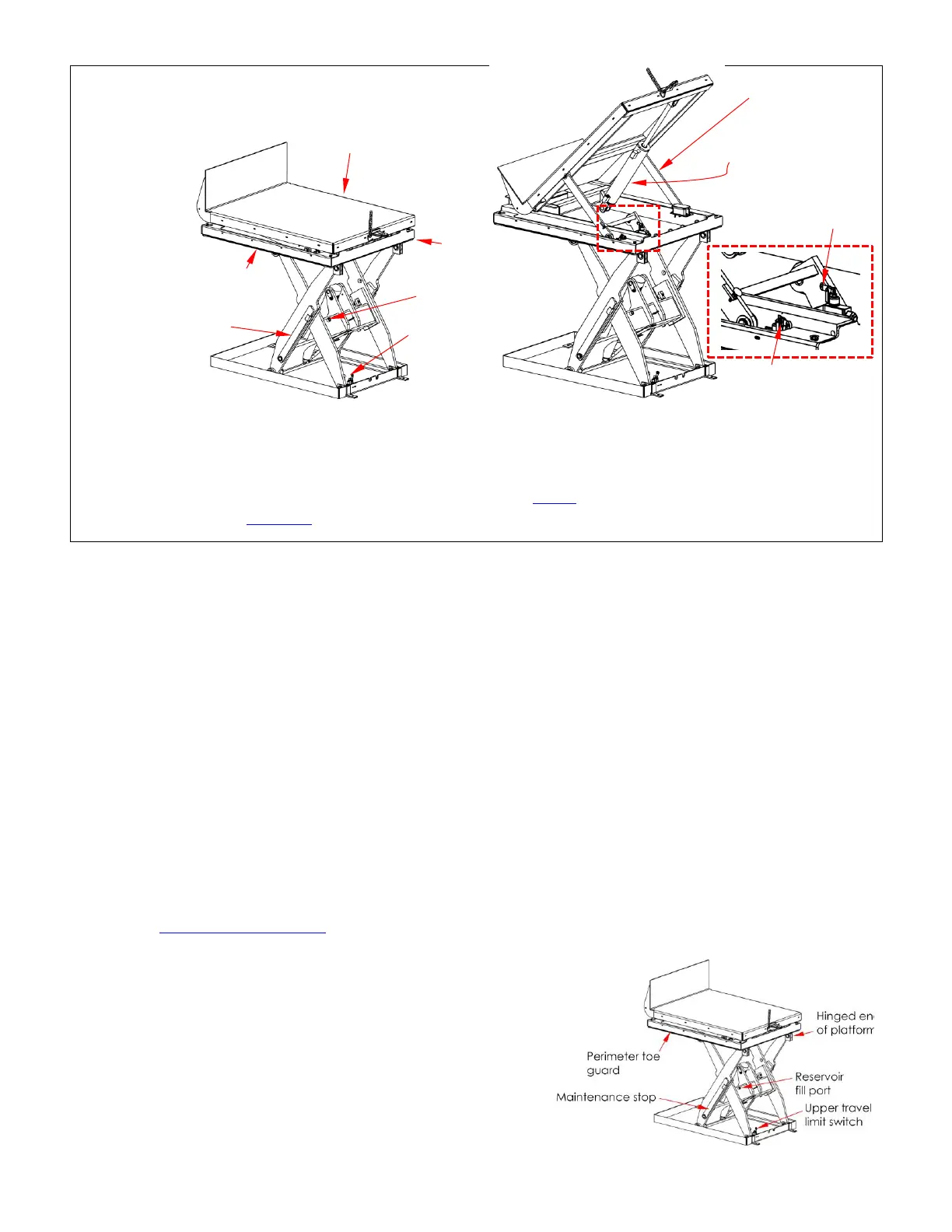

Perimeter toe guard
Maintenance stop
Reservoir fill port
Upper travel
limit switch
Tilting platform
linkage
Tilting platform
cylinder
Tilting platform
NOTE: There are 2 limit
switches that define the
range of motion.
Lower travel
limit switch
Hinged end
of platform
Upper travel
limit switch
