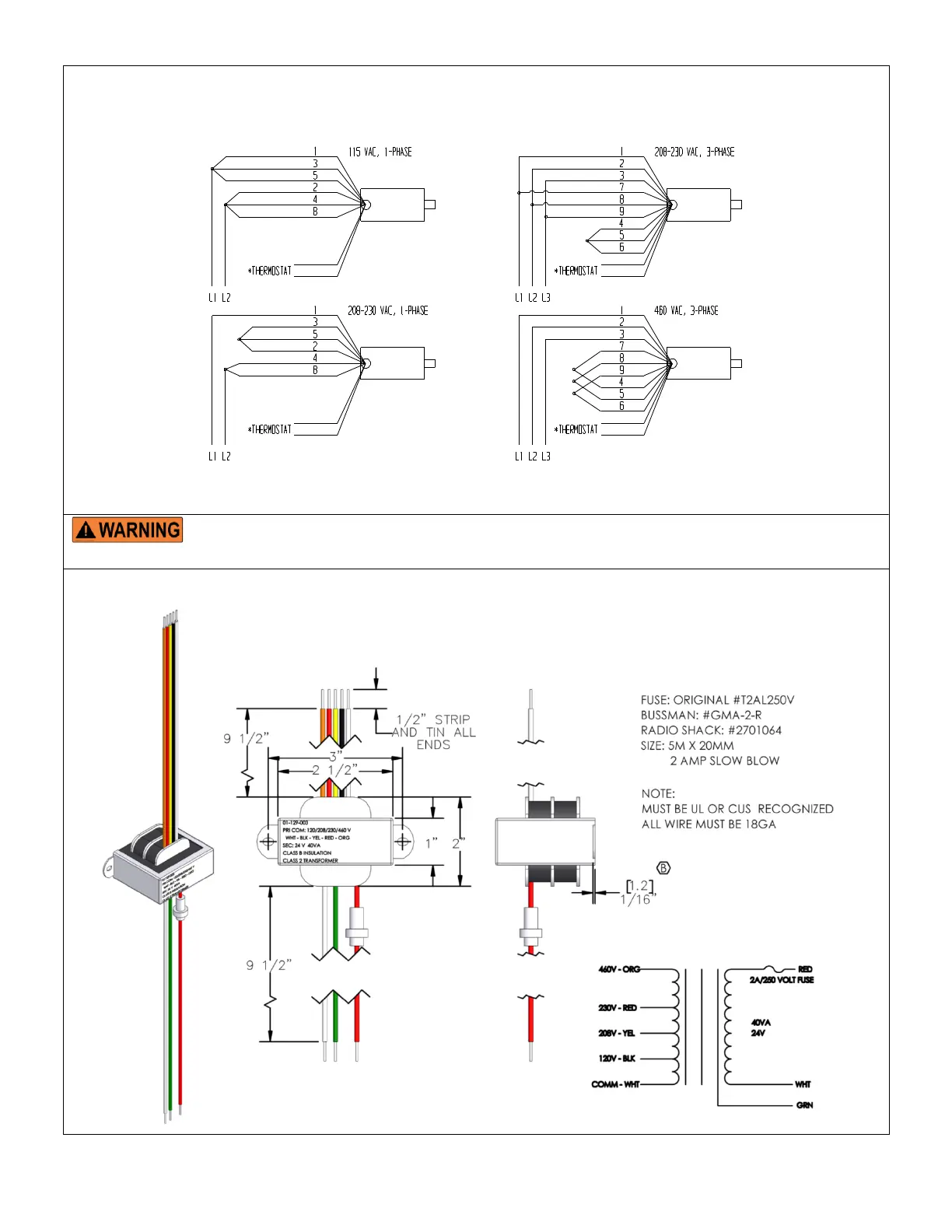

Motor Lead Connections (99124021).
Applicable to all 0.5 HP, 0.75 HP, and 3 HP single-phase motors, and for all 2 HP, 5.5 HP, and 6.5 HP three-
phase motors.
* The two thermostat leads go to (1) the grounded side of the transformer secondary, and; (2) the motor
relay coil. Polarity across the thermostat leads is not important.
When changing the motor voltage configuration, you must also change the configuration
of the control transformer to match the motor voltage.
Control Voltage Transformer (01-129-003 Rev. B).
