TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 12 of 35
ELECTRIC CIRCUIT DIAGRAMS
Care should be taken to identify all potential hazards and comply with applicable
safety procedures before beginning work. Ensure that all system pressure and electrical
power have been removed before attempting to work on the electrical or hydraulic
systems. Follow all applicable lockout/tagout procedures.
The load must be removed, and the platform either positively and adequately
supported or fully lowered, before any work is performed on the lift table.
Only qualified individuals trained to understand mechanical devices and their associated electrical and
hydraulic circuits, as well as the hazards associated with them, should attempt troubleshooting and repair
of this equipment.

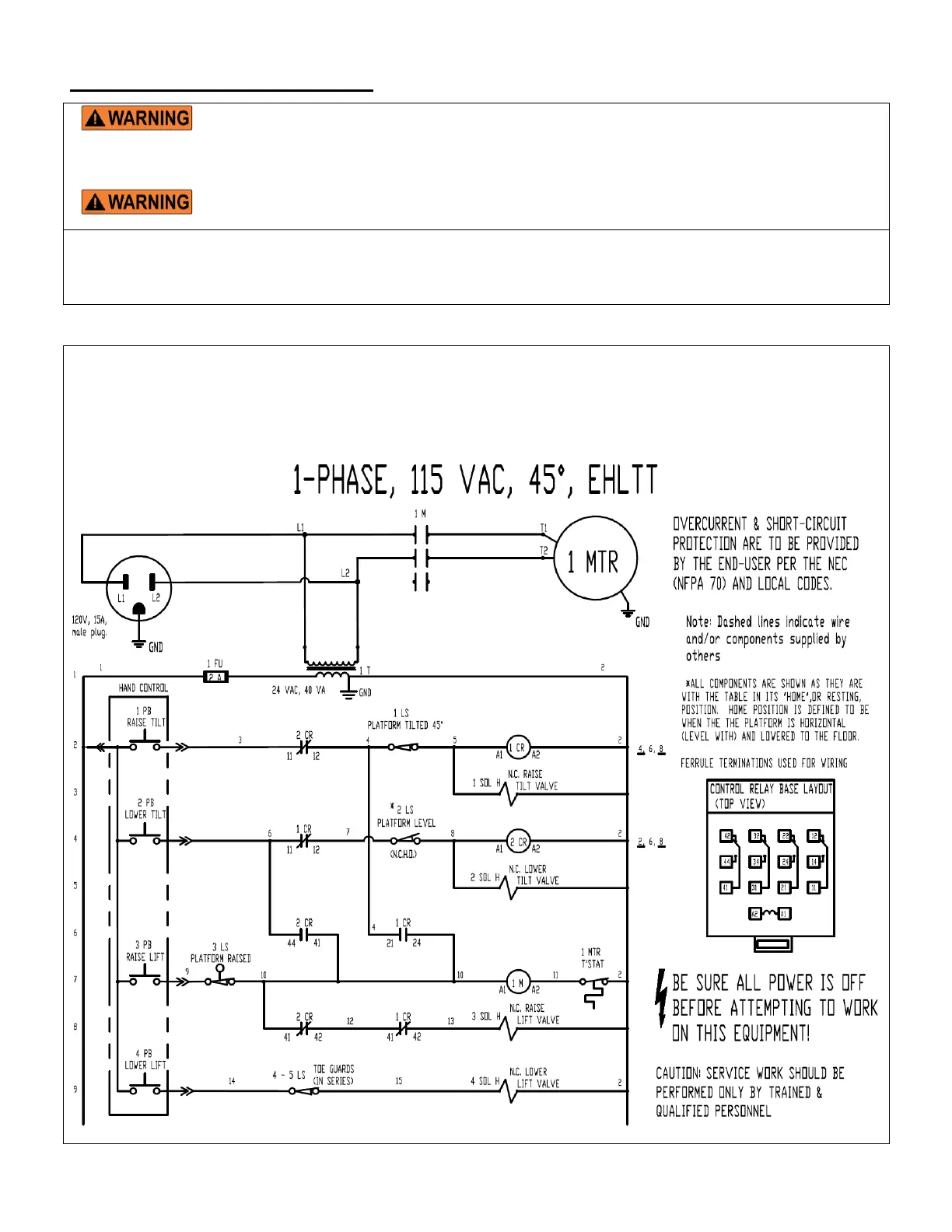

115 VAC, Single-Phase without Remote Control
Electric Circuit Diagram (02124012 Rev. D)
Note: Overcurrent & short circuit protection and disconnect must be provided by end user.
