TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 22 of 35

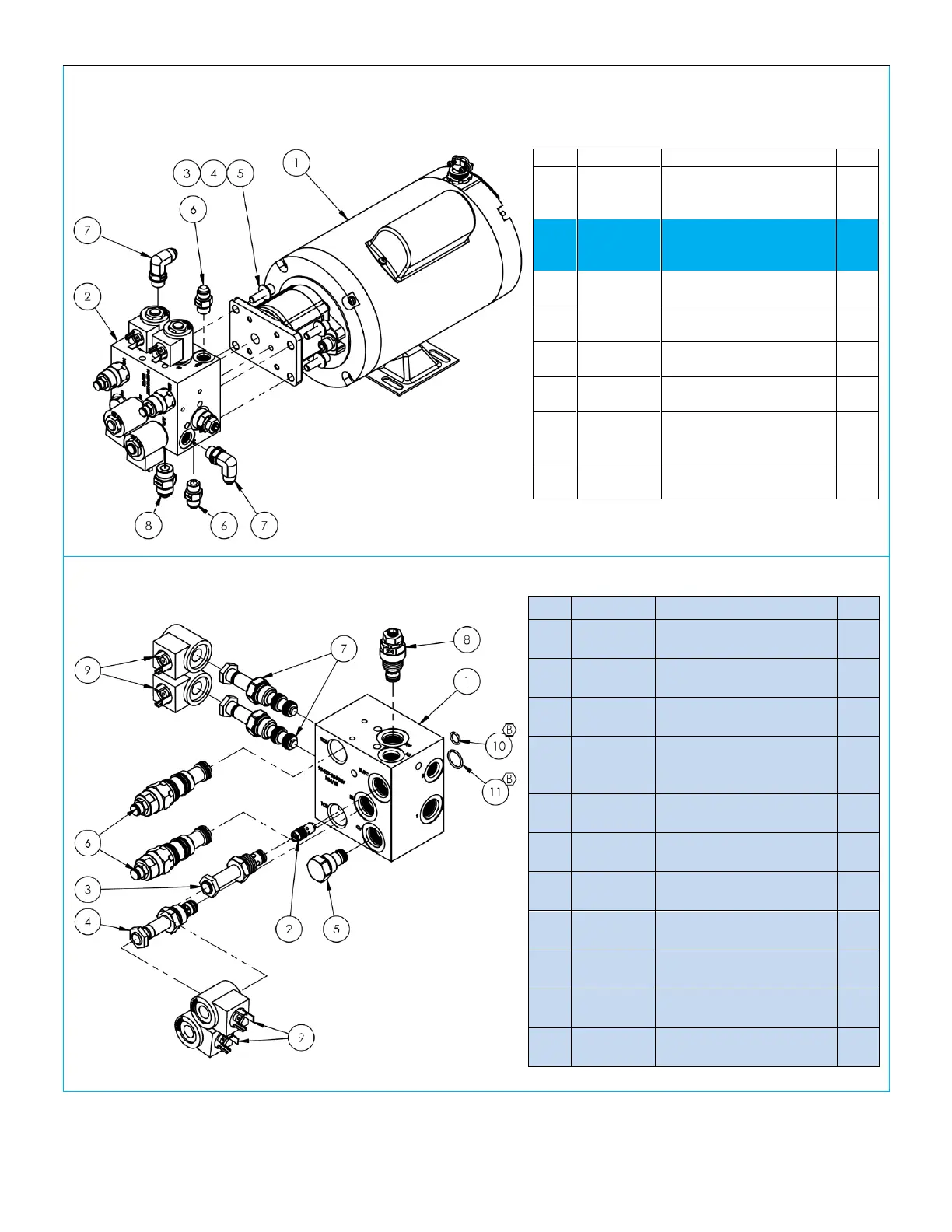

Power Unit: 230V AC, 2 HP, 1 PH (99-160-272).
Representative diagram. Contact the factory for replacement parts for your specific model. ALWAYS have
the product serial number or model number on hand when calling the factory.
230V AC, 2 HP, 1 PH, Manifold Assembly (99-627-024 Rev. B).
ITEM
PART NO.
DESCRIPTION
QTY.
1
99-137-012-
002
MOTOR/PUMP, 208-230V
AC, 1 PH, 2 HP, 3450
RPM, 0.073 DISP
1
2
99-627-024
ASSEMBLY, MANIFOLD,
SINGLE & DOUBLE
ACTING
1
3
23255
5/16-18 X 1 SOCKET
HEAD CAP SCREW
4
4
33687
LOCK WASHER, HI
COLLAR, 5/16"
4
5
33004
FLAT WASHER, USS, ZINC
PLATED, Ø1/4"
4
6
99-116-030
FITTING, HYDRAULIC,
06MJ-06MORB STRAIGHT
2
7
99-116-033
FITTING, HYDRAULIC,
06MJ-06MAORB 90°
ELBOW
2
8
99-116-044
FITTING, HYDRAULIC,
08MJ-08MORB STRAIGHT
1
ITEM
PART NO.
DESCRIPTION
QTY.
1
99-127-034
MANIFOLD, SINGLE
AND DOUBLE ACTING
1
2
99-153-
040-001
FLOW CONTROL, PRES.
COMP., 2.0 GAL.
1
3
99-153-015
VALVE SOLENOID,
STANDARD
1
4
99-153-098
VALVE, HYDRAULIC,
N.C., 2-POSITION 2-
WAY
1
5
99-153-011
CHECK VALVE, SIZE 08,
NOSE-IN/SIDE-OUT
1
6
99-153-057
VALVE, COUNTER
BALANCE
2
7
99-153-017
VALVE, CARTRIDGE, 2
POS., 3 WAY
2
8
99-153-006
VALVE, PRESSURE
RELIEF, 210 BAR
1
9
99-034-008
COIL WITH DIN
CONNECTOR
4
10
99-144-008
O-RING, MANIFOLD,
1/2" OD
1
11
99-144-009
O-RING, MANIFOLD,
3/4" OD
1
