This table is not approved for lifting personnel. Only use the table as a material handling
device.
Operation.
At the beginning of every shift, inspect the perimeter toe guard for correct operation. First raise the
platform. Push and hold a section of the perimeter toe guard up against the platform. The platform
should not move when the “LOWER” button is pressed. Perform this check on all 4 sides of the platform.
Check the condition of the guards, controls, scissor mechanism, hydraulic lines, and limit switches. If
any item is in need of repair or otherwise contributes to an unsafe condition, remove the lift table from
service until it is restored to SATISFACTORY CONDITION. See RECORD OF SATISFACTORY CONDITION.
Carefully push the table to the desired location. Only travel over even, level, improved surfaces
capable of supporting the weight of the table plus a full capacity load. Apply both caster brakes
whenever the table is stationary. Both brakes must be applied whenever the tabletop is raised or
lowered.

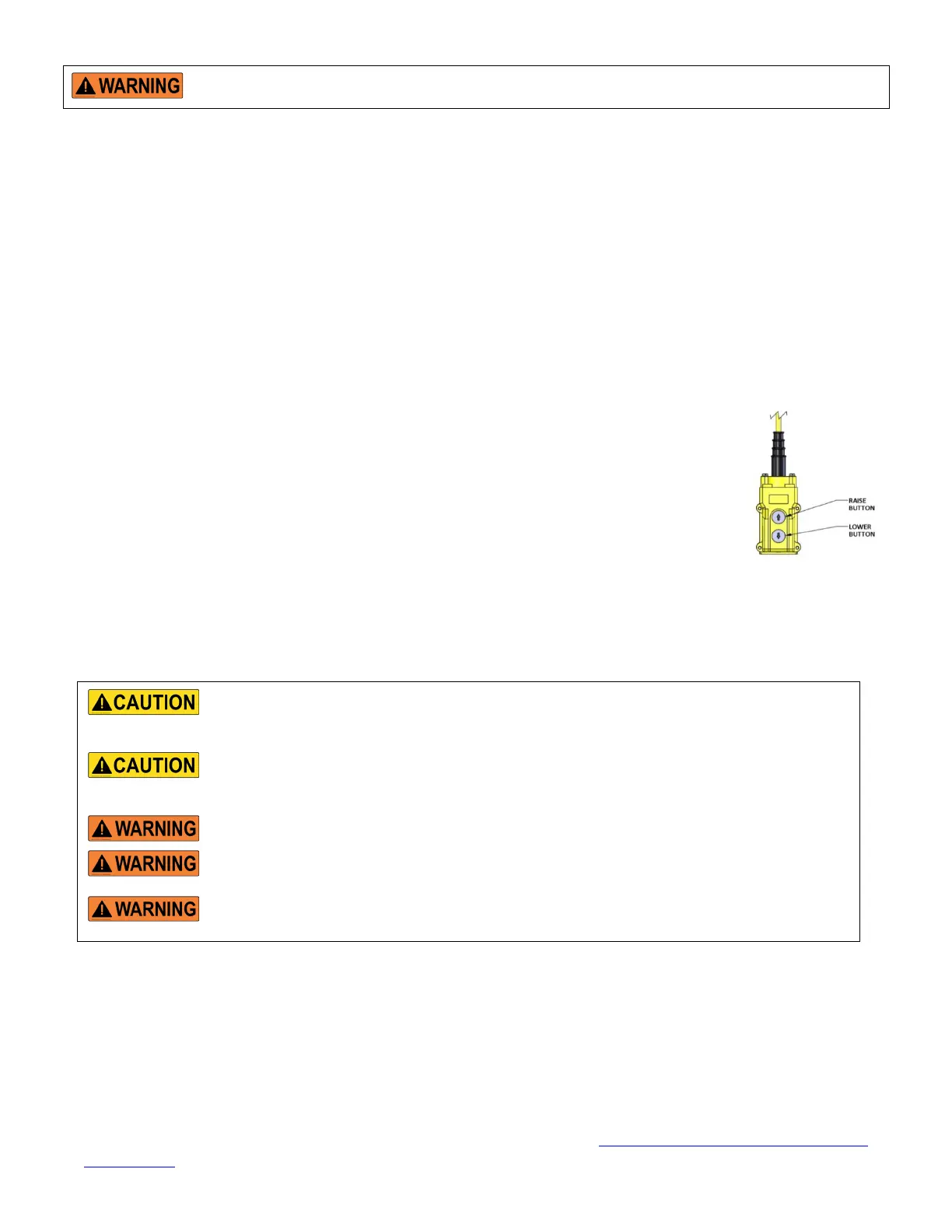

Each standard EHLTP portable scissor lift table includes an electric-hydraulic power unit and a
handheld pushbutton controller.
Press the “RAISE” pushbutton to energize the power unit and raise the platform. The
platform rises only while the pushbutton is pressed. When the pushbutton is
released, the platform will stop and hold its position. At the platform’s maximum
height, a limit switch prevents the platform from further raising.
Press the “LOWER” pushbutton to open the hydraulic valve and lower the platform.
The platform descends by gravity, i.e. the pump motor does not run. Release the
pushbutton to stop the descent. The platform will maintain position until either
pushbutton (RAISE or LOWER) is pressed. If the perimeter toe guard encounters an
object, the valve will close and prevent further descent of the platform.
Hydraulic overload protection prevents the power unit from attempting to raise a load that exceeds
the capacity of your table.
Lowering speed is preset at the factory and cannot exceed 30 fpm. In the event of a hydraulic system
failure, e.g. ruptured hose, a velocity fuse activates and prevents the platform from lowering. The fuse
is integrated into the lifting cylinder.
Always watch the area around the platform as well as the load on the platform
when the table is operating.
Never use the lift table if any damage or unusual noise is observed, if it is in need of
repair, or if any other malfunction is observed. Immediately remove it from service
and notify your supervisor or maintenance personnel
about the issue(s) you
observed.
Keep all personnel clear of the machine when it is in operation. Before operating
the lift table, make certain no part of any person or object is under the platform.
Guards shall be in place before operating the lift table.
Guards cannot protect against every possible condition and should not be
considered a substitute for good judgment and care in use, loading, handling,
storage, etc. of the lift table.
INSPECTIONS AND MAINTENANCE
Regular maintenance is essential for maximizing the service life of this product. Compare all
inspection results to the RECORD OF SATISFACTORY CONDITION. The table should only be used if it is in
satisfactory condition. If an inspection reveals any changes from satisfactory condition, repair it before
returning it to service. Only use manufacturer-approved replacement parts. DON’T GUESS! Contact
TECHNICAL SERVICE if you have questions that are not addressed in these instructions or if you are
uncertain how to address an issue discovered during an inspection. Technical Service can be
contacted by calling (260) 665-7586 and asking for the Service and Parts Department or by submitting
your questions through Vestil’s online parts and service portal at
https://www.vestil.com/page-parts-
request.php.
