RECORD OF SATISFACTORY CONDITION
Before putting the portable lift table into service, make a record describing its appearance.
Thoroughly photograph the lift table from multiple angles. Include photos of all welds, all pivot points,
the points of attachment of both ends of the hydraulic cylinder, the rollers at both ends of each scissor
leg, and all labeling applied to it. Describe where each label is located. Take close range photographs
of the components of the electric-hydraulic power unit. Collect all photographs and writings into a file.
Mark the file appropriately to identify it. This record documents satisfactory condition. Compare the
results of future inspections to this record to determine if the lift table is in satisfactory condition. Do not
use the lift table unless it is in satisfactory condition. Purely cosmetic changes, like damaged paint or
powder coat, do not constitute changes from satisfactory condition. However, touchup paint should be
applied to all affected areas as soon as damage occurs.
OPERATION INSTRUCTIONS
NOTE: This product utilizes a battery powered (DC) electric-hydraulic power unit to raise and lower the
tabletop. Acquire a copy of the most recent revision of ANSI standard MH29.1. Pay particular attention
to Section 12, which provides owner/user responsibilities for the operation, care, and maintenance of
this device. Safe operation of this device is the operator’s responsibility. Operators must be
knowledgeable about, and observe, the safety rules and practices provided in this section.
Standard models are suitable for indoor use in most non-classified industrial locations as well as many
commercial locations. Only lift stable, evenly-distributed, nonhazardous loads having a size or footprint
approximately the same size as, or smaller than, the platform.

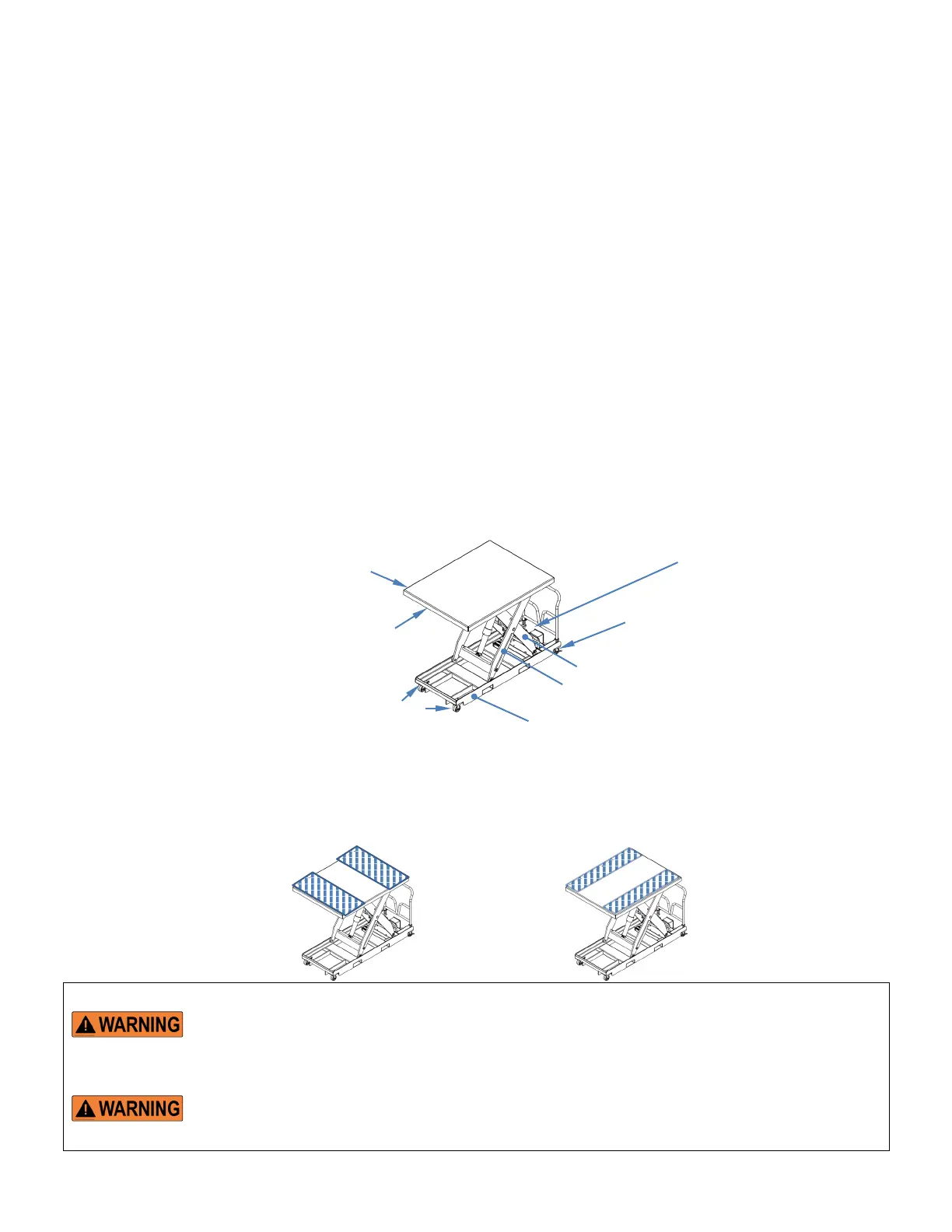

The following diagram identifies major components of your portable scissor lift table.
Loading the platform.
The load rating (in pounds and kilograms) is provided on the machine data plate or label 1153 (see
LABELING DIAGRAM on p. 25) located on the hinged end of the platform. This indicates the net
capacity of the scissor lift table for a static load, centered and evenly distributed on the platform. For
off-center loads, the lift table’s maximum capacity is 75% of the rated capacity for end loading (either
end), and 50% for side loading (either side) (see diagrams).
DO NOT exceed the load ratings. Personal injuries or permanent damage to the unit might
result if the capacity of your unit is exceeded. Note: Take into account the weight of any
equipment added to the platform by third parties when determining the maximum
working load to be placed on the platform.
The platform rollers are not captured. DO NOT overhang any load over the side of the
platform. A cantilevered or overhanging load at the hinged end can cause the platform
to tilt and dump the load. For applications involving side or end edge loading, contact
TECHNICAL SERVICE.
End loading:
Capacity
reduced to 75%
Side loading:
Capacity
reduced to 50%
POWER UNIT
(MOUNTED TO
BASE FRAME)
LOCKING CASTERS
(IN BACK)
SCISSORS
MAINTENANCE PROP
BASE FRAME
RIGID CASTERS
PLATFORM/TABLETOP
PERIMETER TOEGUARD
(ATTACHED TO BOTTOM
EDGE OF PLATFORM)
HINGED
END
