Operator’s Manual 10/23/2023 EHLT-TL MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 10 of 22

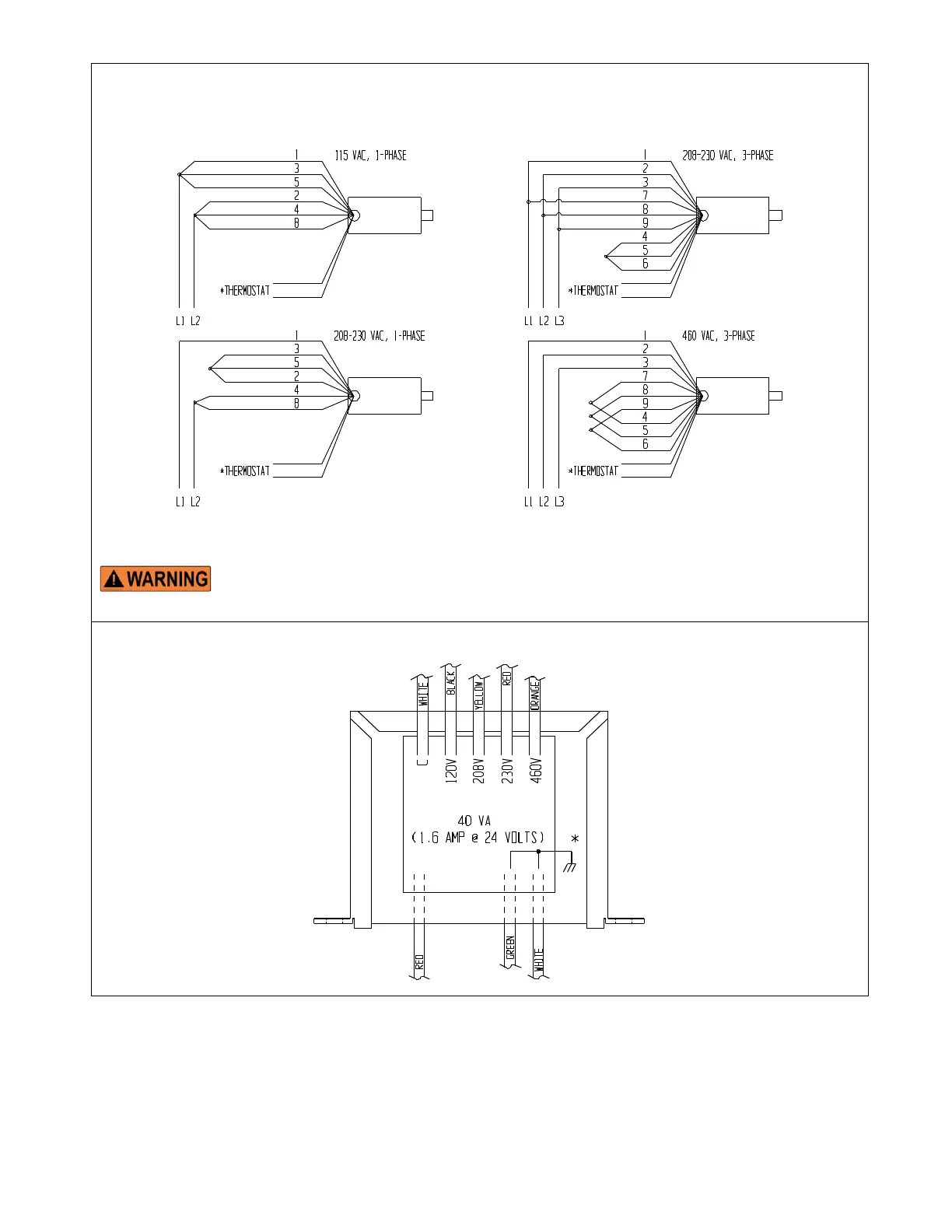

Motor Lead Connections (99124021).
Applicable to all .5 HP, .75 HP, and 3 HP single-phase motors, and for all 2 HP, 5.5 HP, and 6.5 HP three-phase
motors.
* The two thermostat leads go to (1) the grounded side of the transformer secondary, and; (2) the motor
relay coil. Polarity across the thermostat leads is not important.
When changing the motor voltage configuration, you must also change the configuration of
the control transformer to match the motor voltage.
Control Voltage Transformer (01129001 Rev. G).
