Operator’s Manual 10/23/2023 EHLT-TL MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 12 of 22

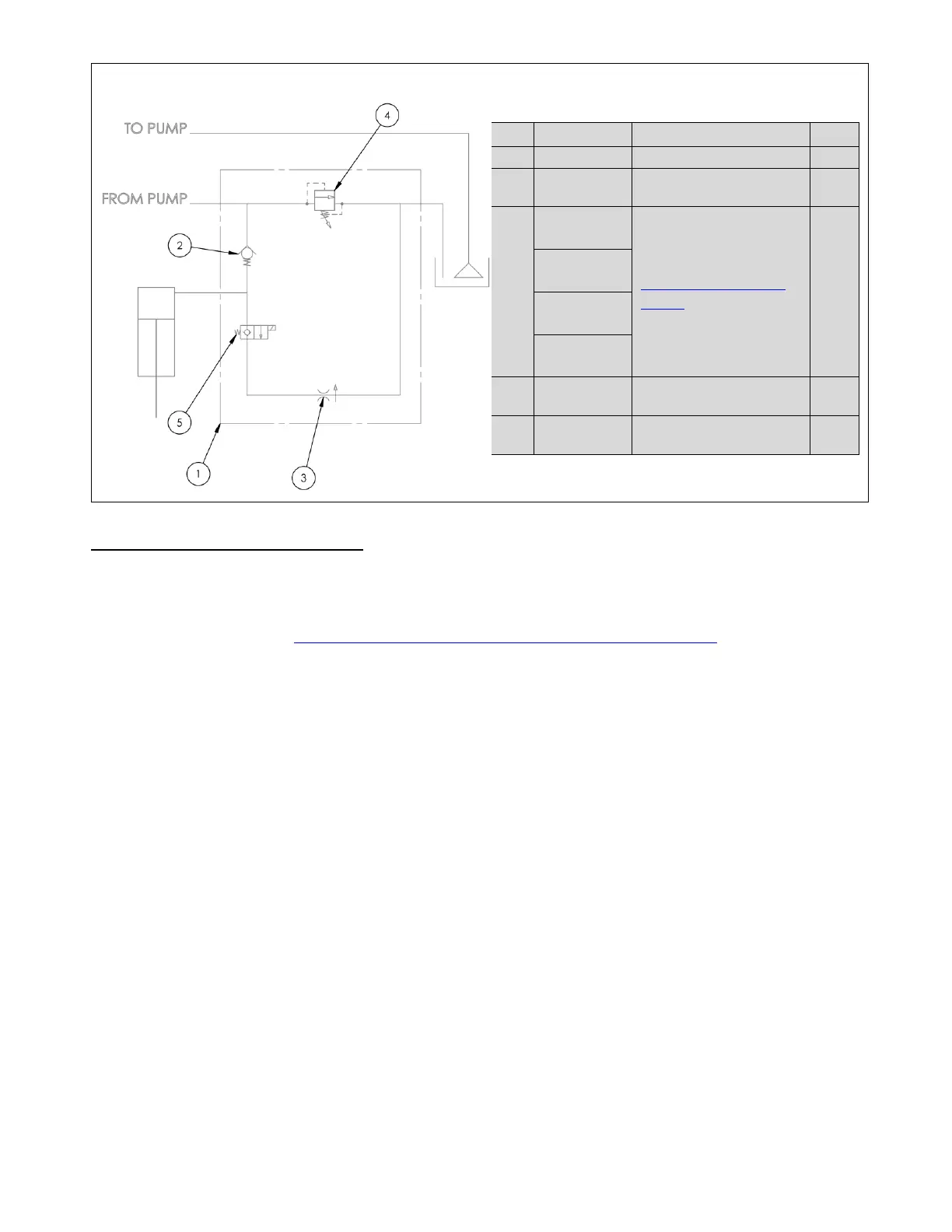

Hydraulic Schematic (LHL; 01-125-008).
ITEM
PART NO.
DESCRIPTION
QTY
1
01-127-010
MANIFOLD, LHL
1
2
99-153-011
CHECK VALVE, SIZE 08,
NOSE-IN/SIDE-OUT
1
3
0.5 GPM
99-153-049
FLOW CONTROL, PRES.
COMP.
1
1.0 GPM
99-153-038
1.5 GPM
99-153-039
2.0 GPM
99-153-040
4
99-153-006
VALVE, PRESSURE RELIEF,
210 BAR
1
5
99-153-015
VALVE SOLENOID,
STANDARD, w/o COIL
1
INSTALLATION INSTRUCTIONS
Review this entire section before installing the scissor lift table.
Consult the factory in the event of questions or problems at the time of installation.
Modifications or additions to the lift table, without prior authorization by the manufacturer, may void the
warranty. See ANSI standard MH29.1-2003, Safety Requirements for Industrial Scissor Lifts, Section 12.6.
Attaching ancillary equipment to the platform will lower its load capacity.
The installation shall comply with all applicable regulations for its location and use.
The end user is responsible for verifying that this lift table and its installation are suitable for its environment
and application.
This lift table shall be installed only by qualified and trained personnel with access to appropriate equipment.
Electrical connections shall be performed by a qualified electrician.
Before You Begin.
The Electric Hydraulic Scissors Lift Table must be anchored to a smooth, level, and adequately strong
concrete surface. See the INSTALLATION DIMENSIONS diagram and table to plan your installation.
If the lift table is to be placed in a pit, first determine where and how the electrical and/or hydraulic
connections will be made for when the lift table is in place.
Tools And Supplies.
The following tools and supplies may be needed to install your Electric Hydraulic Scissor Lift Table. These
items are not supplied with the product.
A fork truck or hoist capable of unloading the left table and setting it in place.
A smooth, level concrete surface on which to mount the lift table.
Four concrete anchors. The customer is responsible for selecting anchors appropriate for the EHLT model
and concrete floor conditions. DO NOT operate an unsecured lift table.
A power supply and electrical disconnect matching the motor’s voltage and current requirements. Refer to
the lift table’s data plate, labels on the control enclosure, and the electrical diagrams in this manual for
