TABLE OF CONTENTS 5/12/2022 EH MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Page 7 of 19

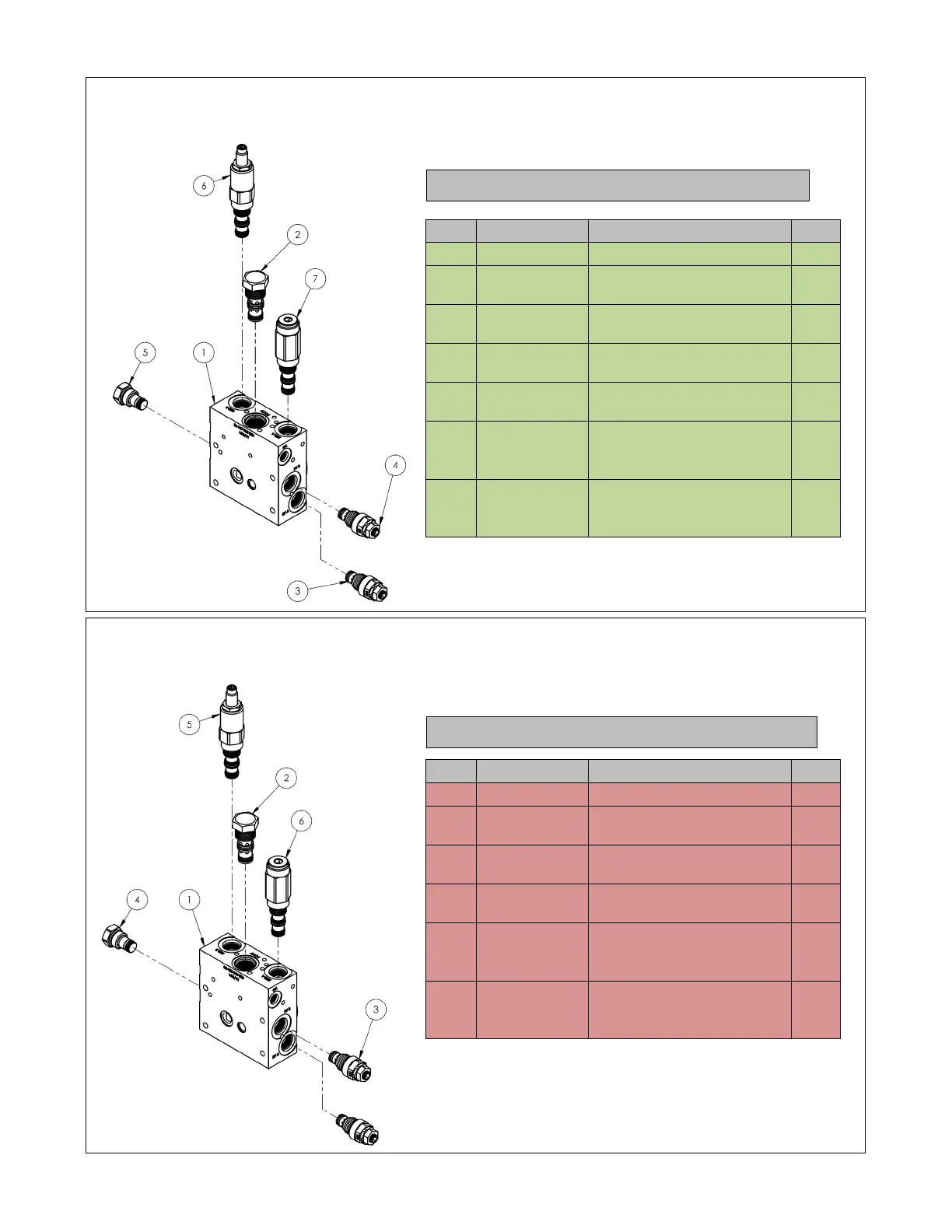

Manifold Exploded View (06-627-003)
EH-65; EH-66; & EH-68
Manifold Exploded View (06-627-004)
EH-610; EH-75; EH-76; EH-78, & EH-710
Item
Part no.
Description
Qty.
1
06-127-005
Manifold, hydraulic
1
2 99-153-020
Pilot-to-close check
valve
1
3 99-153-004
Valve pressure relief, 100
bar
1
4 99-153-005
Valve, pressure relief, 33
bar
1
5 99-153-011
Check valve, size 08,
nose inside-out
1
6 99-153-054
Cartridge valve,
sequence, 3-way,
adjustable
1
7 99-153-055
Cartridge valve,
sequence, 2-way with
pilot
1
Item
Part no.
Description
Qty.
1
06-127-005 Manifold, hydraulic 1
2 99-153-020
Pilot-to-close check
valve
1
3 99-153-004
Valve pressure relief, 100
bar
2
4 99-153-011
Check valve, size 08,
nose inside-out
1
5 99-153-054
Cartridge valve,
sequence, 3-way,
adjustable
1
6 99-153-055
Cartridge valve,
sequence, 2-way with
pilot
1
Return to Power Unit Exploded View on Page 5
Return to Power Unit Exploded View on Page 6
