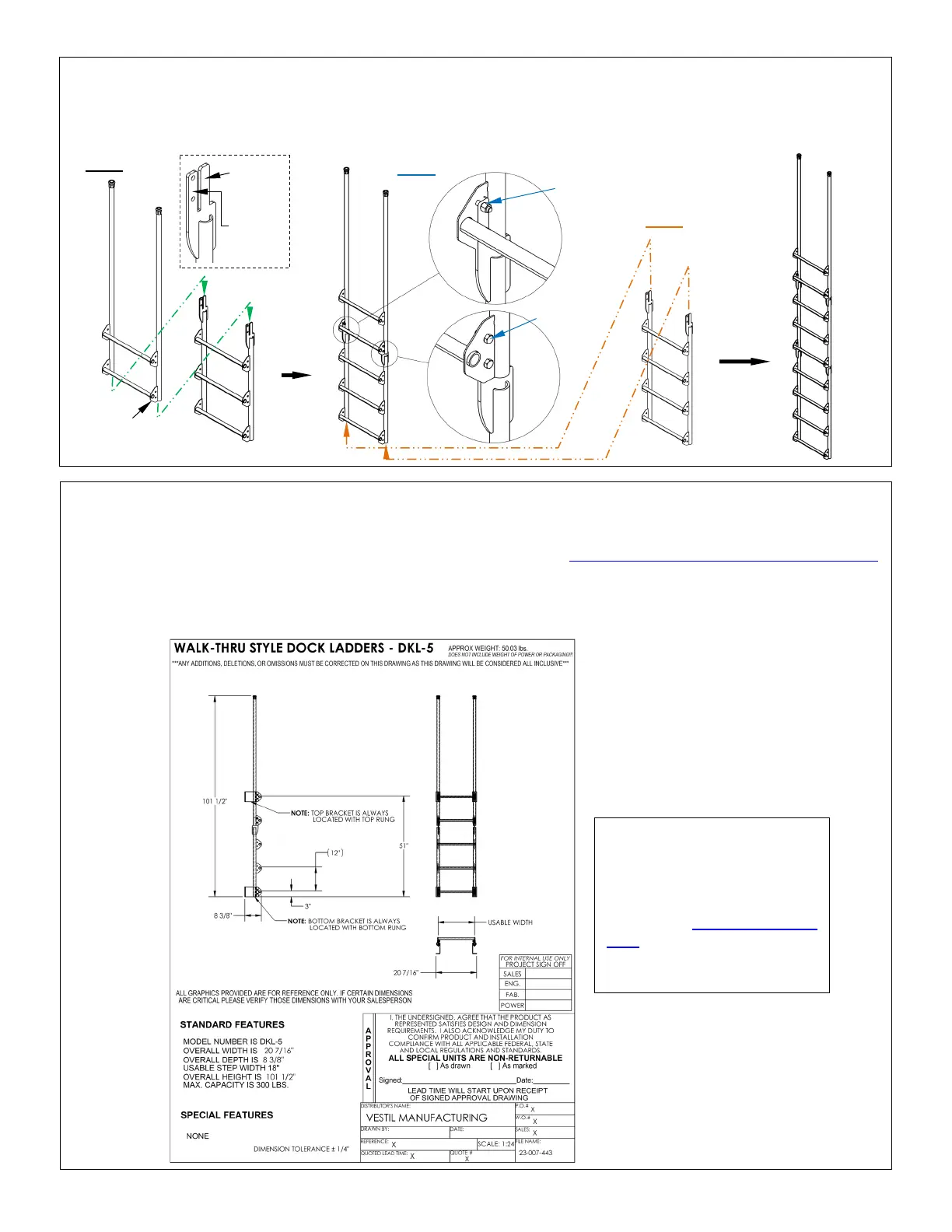

LADDER SPECIFICATIONS
Documents that provide specifications for DKL series mobile ladder stands are available online to anyone who
visits Vestil’s website. Specifications include dimensions, net weight, and capacity information. To access the
appropriate specifications document, navigate to the DKL webpage at https://www.vestil.com/product.php?FID=617
.
Scroll the page to the entry for the model you purchased. Click the button in the “PDF” column that looks like a pencil
inside a blue-bordered box. A PDF file will open. This is the specifications document. Print a copy of the document
and keep it with your copy of this manual. The following is an exemplar specifications document. It shows
specifications for model DKL-5.
• DKL-9 & -10 have 3 sections, i.e. upper, middle, and lower portions.
a. Insert the mounting tabs of the middle ladder section into the open ends of side rails of the upper section.
b. Fasten the rung tabs and rung brackets together with
3
/
8
” – 16 hardware as shown in the diagrams.
c. Insert the mounting tabs of the lower ladder section into the open ends of the side rails of the middle section;
then fasten the rung tabs and rung brackets together with
3
/
8
” – 16 hardware and was done in step b.
Step a
Mounting
tab
Rung tab
Rung
bracket
3
/
8
” – 16
lock nut
3
/
8
” – 16 x 1”
bolt
Upper
ladder
section
Middle
ladder
section
Lower
ladder
section
Complete
ladder
assembly
Step b
Step c
NOTE: If your model is not
included on the LAD-PW
webpage, or if you cannot
access and/or print the
specifications document,
contact the
Technical Service
Dept. Contact information for
the department is provided on
the cover page of this manual.
