Table of Contents Rev. 6/17/2024 D MANUAL
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 6 of 18

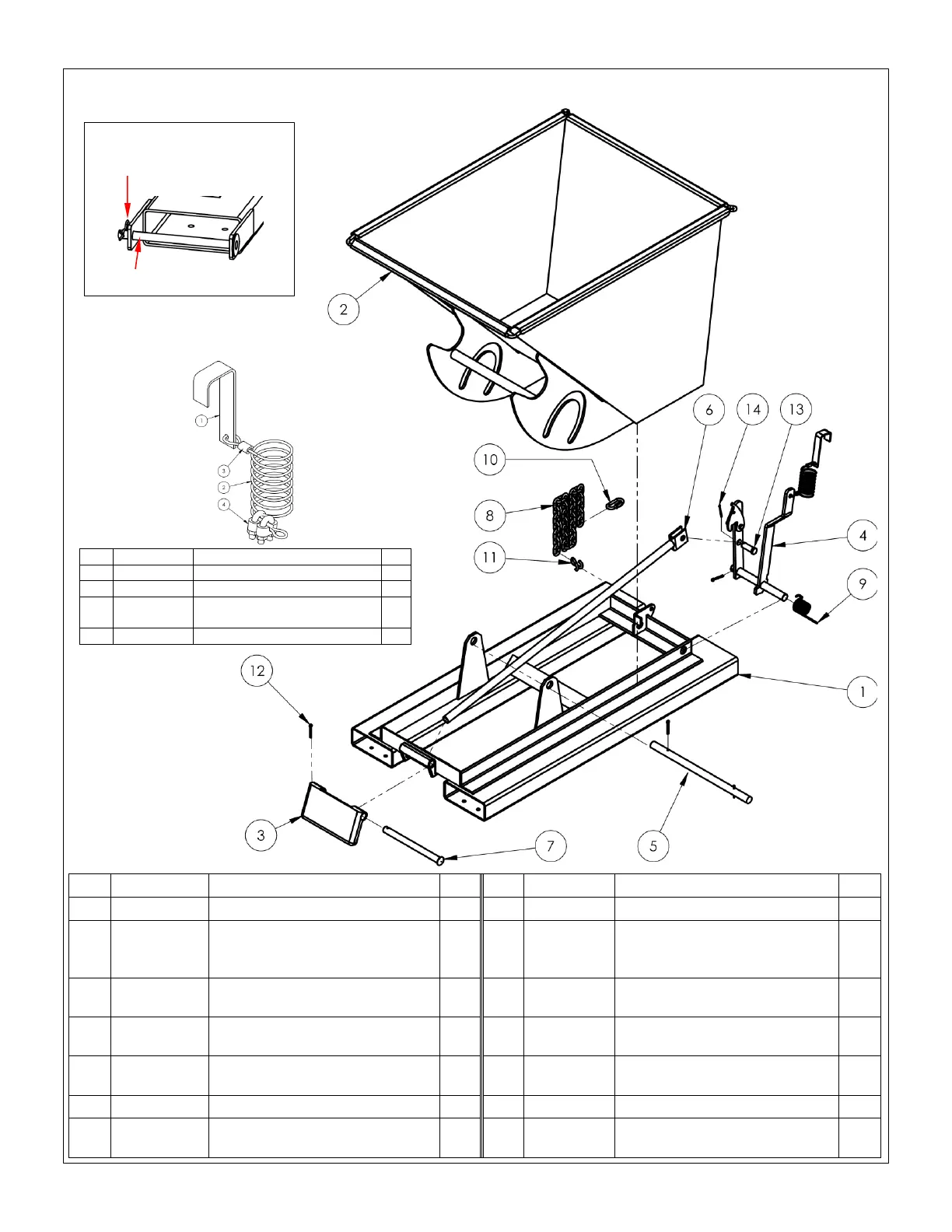

D-50 series hoppers exploded parts diagram & bill of materials
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
37-514-007
Frame, weldment, base
1
8
99-145-037
5
/
16
” chain 36” long
1
2
37-545-043
37-545-012
Weldment, chute:
D-50-LD
D-50-MD & D-50-HD
1
1
9
37-146-005
Spring, torsion, hopper
release
1
3
37-037-040
Bumper release for D-
hoppers
1
10
99-145-053
5
/
16
” quick link
1
4
37-537-021
Weldment, lock, release,
lever assembly
1
11
99-145-084
Lap link
1
5
37-612-005
Subassembly, pin, main
connection pin
1
12
65127
Cotter pin, zinc-plated,
3
/
16
”
x 2”
3
6
37-537-007
Release lever rod weldment
1
13
28-112-043
Pin,
3
/
4
” x 2” retaining clevis
1
7
37-112-006
Pin, bumper plate
1
14
65080
Extended prong cotter pin,
zinc finish,
1
/
8
” x 2”
1
D-PIN TINE LOCK OPTION
Hitch pin (45286)
Tine lock pin (14-612-001)
*
*37-154-044 RELEASE HANDLE AND CABLE
REPLACEMENT KIT
Item
Part no.
Description
Qty.
1
37-025-002
HANDLE, CHUTE RELEASE
1
2
37-145-001
SPECIALTY HARDWARE CABLE
1
3
43383
SWAGE SLEEVE Ø1/8" X 5/8"
LONG
1
4
43403
1/4" WIRE CLAMP
2
