Table of Contents Rev. 7/24/2024 CYL-2, MANUAL
Table of Contents Copyright 2024 Vestil Manufacturing 4 of 9

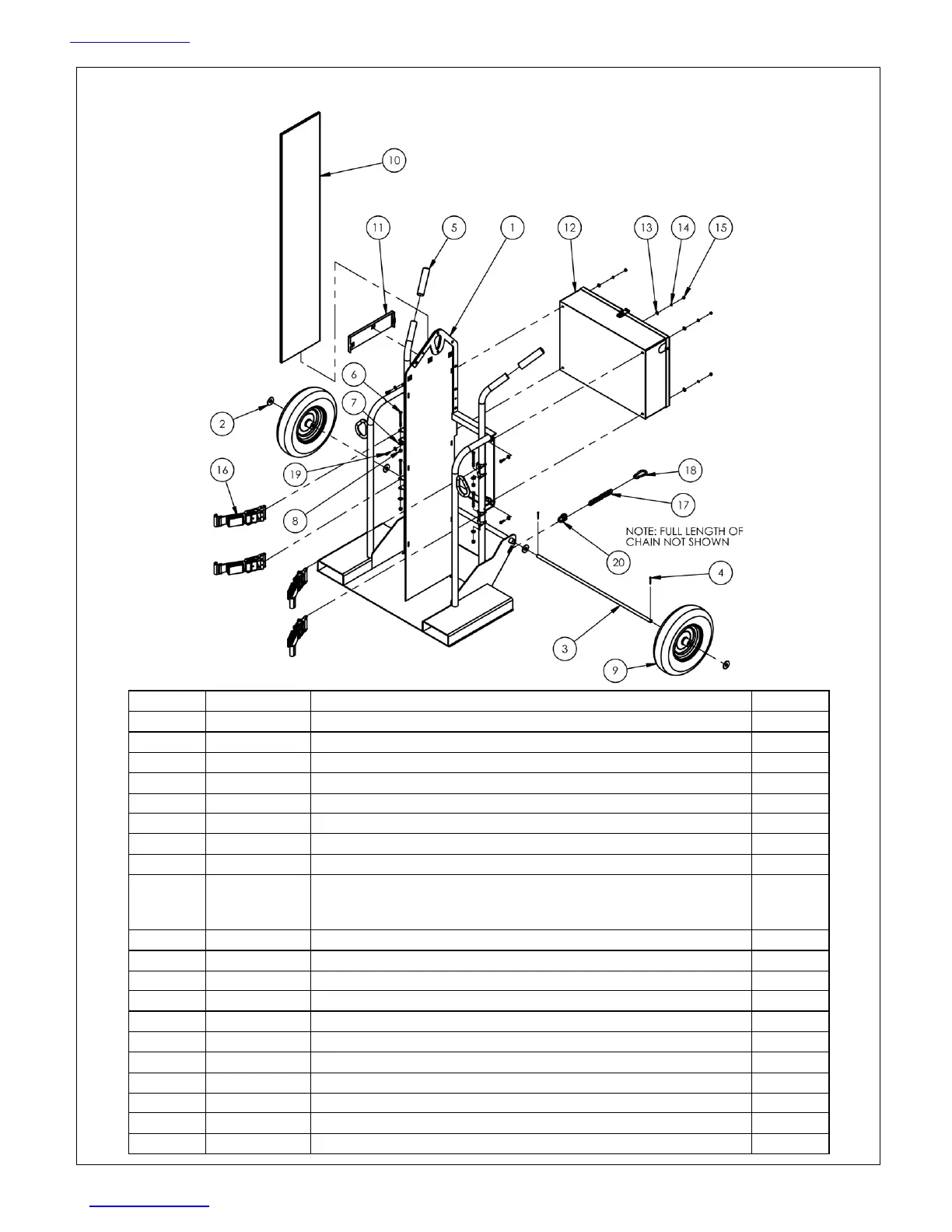

CYL-2-FP & CLY-2-FP-FF Exploded View and Bill of Materials (16-006-240)
Item no.
Part no.
Description
Quantity
1
16-514-195
WELDMENT, FRAME, BASE
1
2
33016
FLAT WASHER, LOW CARBON, USS, ZINC PLATED, 5/8"
4
3
16-112-044
AXLE, PIN
1
4
65078
EXTENDED PRONG COTTER PIN, ZINC FINISH, 1/8" x 1 1/2"
2
5
07-025-005
HANDLE, BLACK RUBBER, 6"
2
6
11067
HHCS #2 Z PLATED, GRADE A, Ø 5/16 - 18 x 3.5 LG
4
7
33006
FLAT WASHER,ZINC PLATED,USS, Ø5/16"
4
8
37021
NYLON INSERT LOCK NUT, GRADE 2, ZINC FINISH, 5/16"-18
4
9
16-132-126
16-132-246
Wheel:
Pneumatic tire, 4” x 16”
Foam filled tire, 4” x 16”
2
10
16-014-259
FRAME, FIREPROOF MARINITE INSERT
1
11
16-014-268
FRAME, FIREPROOF PANEL, FORMED
1
12
99-514-010
TOOLBOX
1
13
33004
FLAT WASHER, USS, ZINC PLATED, Ø1/4"
8
14
33618
MEDIUM SPLIT LOCK WASHER, Ø1/4"
4
15
36102
HEX NUT, GRADE A, ZINC PLATED, 1/4-20
4
16
16-145-018
2" x 36" STRAP WITH RATCHET
4
17
09-145-018
CHAIN, 5/16" x 56" LG
1
18
08-145-041
SPECIALTY HARDWARE, SNAP HOOK, Ø5/16
1
19
11005
BOLT, GRADE A, Ø1/4-20 UNC x 1 LG, HHCS #2 Z-PLATED
4
20
99-145-084
LAP LINK, 5/16" X 1 1/2"
1
