Operator’s Manual 4/16/21 CTD-H-TP-3000 MANUAL.DOCX
Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 8 of 14
2. Adjust the fork tine separation to align with the fork pockets on the crate dumper (17 ¾” between inside
edges).
3. Drive the fork truck forward to insert the tines into the fork pockets. Drive forward until the ends of the
tines contact the ends of the fork pockets.
4. To prevent the crate dumper from sliding off the forks, insert the lock pins behind both fork tines. Secure
both lock pins with the #11 hitch pin clips.
5. Attach the safety chain to the carriage of your lift truck. Remove all slack from the safety chain.
6. With the fork truck hydraulic system de-energized, have a qualified person make the hydraulic connections
between the fork truck and the crate dumper. The forward port (towards the load) is plumbed for extending
the lift assist cylinder and rotating a container; the rear port (towards the fork truck) for returning a
container to level.
7. Power the forklift. Test the rotate and return functions. If necessary, de-energize the hydraulic system and
reverse the connections.
8. Bleed the hydraulic valves. Reference the instructions on p.11.
RECORD OF SATISFACTORY CONDITION
Before using the crate dumper for the first time, make a record describing its appearance. Thoroughly photograph
the crate dumper from multiple angles, including all welds and anchor points, and all labeling applied to it. Describe
where each label is located. Collect all photographs and writings into a file. Mark the file appropriately to identify it. This
record documents satisfactory condition. Compare the results of future inspections to this record to determine if the
crate dumper is in satisfactory condition. Do not use the crate dumper unless it is in satisfactory condition.
OPERATION INSTRUCTIONS
Use of the crate dumper must conform to occupational health and safety (OSH) rules applicable in the location where
the crate dumper is used. In particular, consult OSHA standard 1910.1978 (Powered industrial trucks) for the
owner’s/user’s responsibilities regarding the operation, care, and maintenance of this product. Before putting the crate
dumper in service, it is the user’s responsibility to contact local OSH and building department authorities to determine
how laws, regulations, codes, etc. affect your use of the dumper.
Reference the MAJOR COMPONENTS diagram, p. 7, to locate components discussed in the operation instructions.
Prior to use.
Inspect the crate dumper for damaged parts, loose or missing
fasteners, or any other condition that would prevent its safe use.
Inspect the hydraulic hoses and cylinders for damage or leaks. Have
a qualified person repair or replace damaged or worn parts before
using the dumper.
During use.

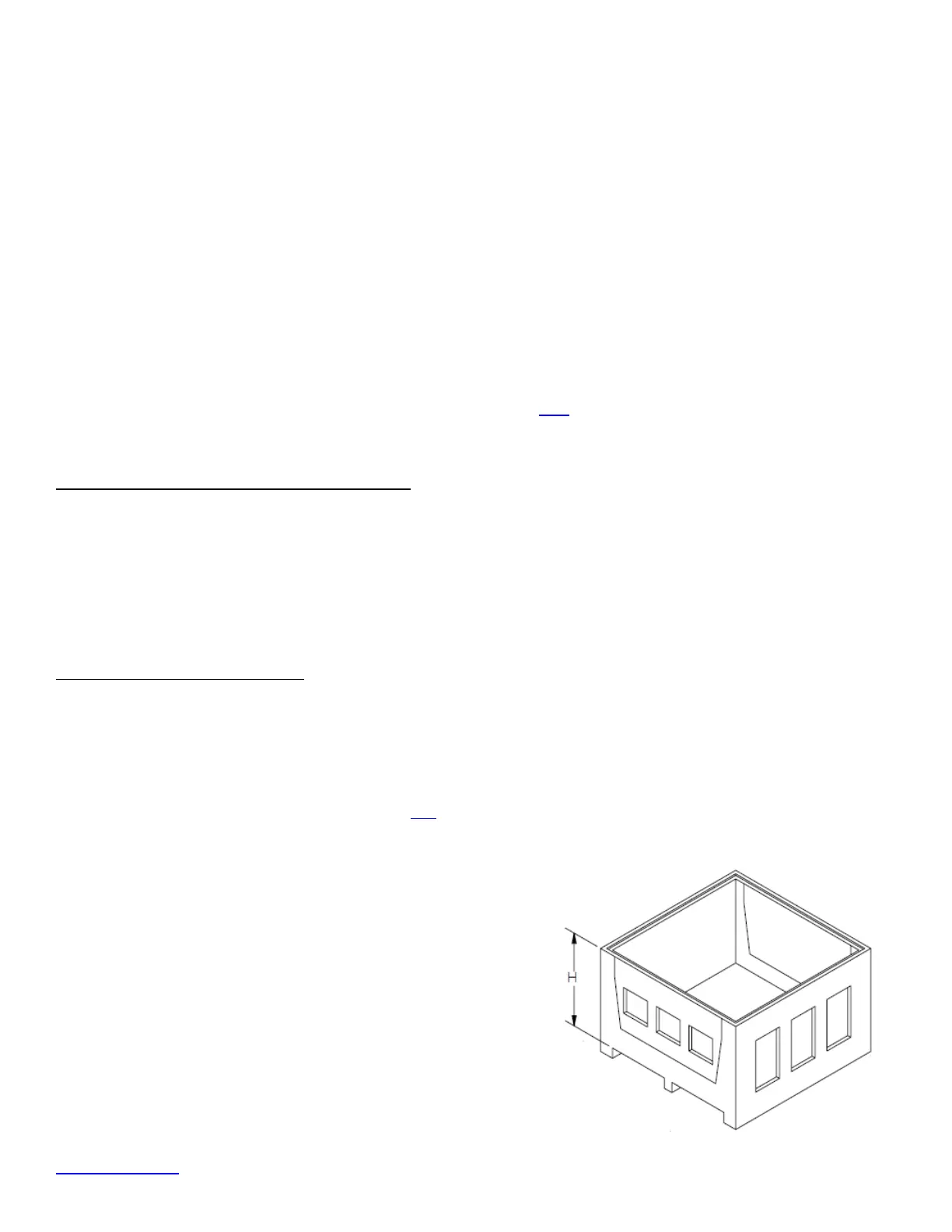

Measure distance H on your container, from the top of the fork
access to the top of the container. Remove the two cotter pins from
the sides of the back stop. Adjust the top retainer to the next larger
height increment than H. Re-insert the cotter pins. DO NOT use the
crate dumper without both cotter pins being in place.
