Total of Contents Rev. 2/10/20 CRL-4-12-3000, MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Corp. Page 5 of 6
USING THE LIFTER
Step 1: Attach the shackle to the safety hook of your hoist or
other lifting device.
Step 2: Position the lifter above the center of the coiled material.
Lower the lifter through the center of the material. The bottom
half of the lifter should hang below the material.
Step 3: Pull the lifting arm cable to raise the lifting arm. When
lifted, the arm will be perpendicular to the main body of the lifter.
Raise the lifter and bring the lifting arm into contact with the
bottom of the material. Make sure that the lifter is centered in the
material. If it isn’t, lower the lifter and adjust its position until it is
centered. The center line of the lifter (dotted red line) should
align with the center of the reel of material.
Step 4: Raise the material a few inches above the ground.
Observe the material and lifter for approximately 10 seconds to
test the stability of the lift. If the contact is unstable, return the
material to the ground and adjust the position of the lifter. Do not
proceed to the next step until stability is achieved.
Step 5: Transport the material to the desired location.
a. Overhead hoist: Lift the material ~5-6 inches above the
ground. Minimize load swing by moving the hoist slowly.
b. Forklift: drive slowly, particularly while turning. The
material will tend to swing opposite the direction of a
turn, so reduce speed during all turns. The material will
swing out in front of the forklift during braking. Apply the
brakes gradually.
Step 6: Make sure that the load is not swinging or spinning.
Then, slowly lower it until there is slack in the hoist chain
.
Step 7: Lower the lifter. When it is sufficiently lowered, the lifting
arm will rotate to the upright position. At that point, the lifter can
be raised and extracted from the material.
INSPECTIONS & MAINTENANCE
Inspection procedures are included in the most current revision of ASME B30.20. As stated above in the
NATIONAL STANDARDS section, Vestil recommends that you acquire a copy of the most recent revision
of this standard. Apply all use and maintenance/care instructions in the standard. Vestil also recommends
that you contact your local occupational safety and health authority to determine if any laws, regulations,
codes, ordinances, etc. apply inspection requirements to below-the-hook lifters.
Inspections and repairs should only be performed by qualified persons. Compare the results of each
inspection to the RECORD OF SATISFACTORY CONDITION. Do not use the lifter unless all parts are in
satisfactory condition. Replace parts that are not in satisfactory condition before using the lifter again.
DON’T GUESS! If you have any questions about the condition of your lifter, contact the TECHNICAL
SERVICE
department. The phone number is provided on the cover page of this manual. Never make
temporary repairs of damaged or missing parts. Only use manufacturer-approved replacement parts.
Deformities, cracks, and severe wear of the lifting arm or main body requires immediate replacement of the
entire unit.
Visually examine the device before each use and at least once per month. Record all results.
1. Shackle: make sure that the shackle is not bent, cracked, or severely worn. The shackle should be
securely fastened to the lifter. Tighten fasteners, if necessary.
2. Lifting arm and main body of lifter: confirm normal condition. Check welds and pivot points for cracks.
Check pivot point hardware for damage.
3. Cable: examine the cable for cuts, frays, kinks, corrosion, and other damage.

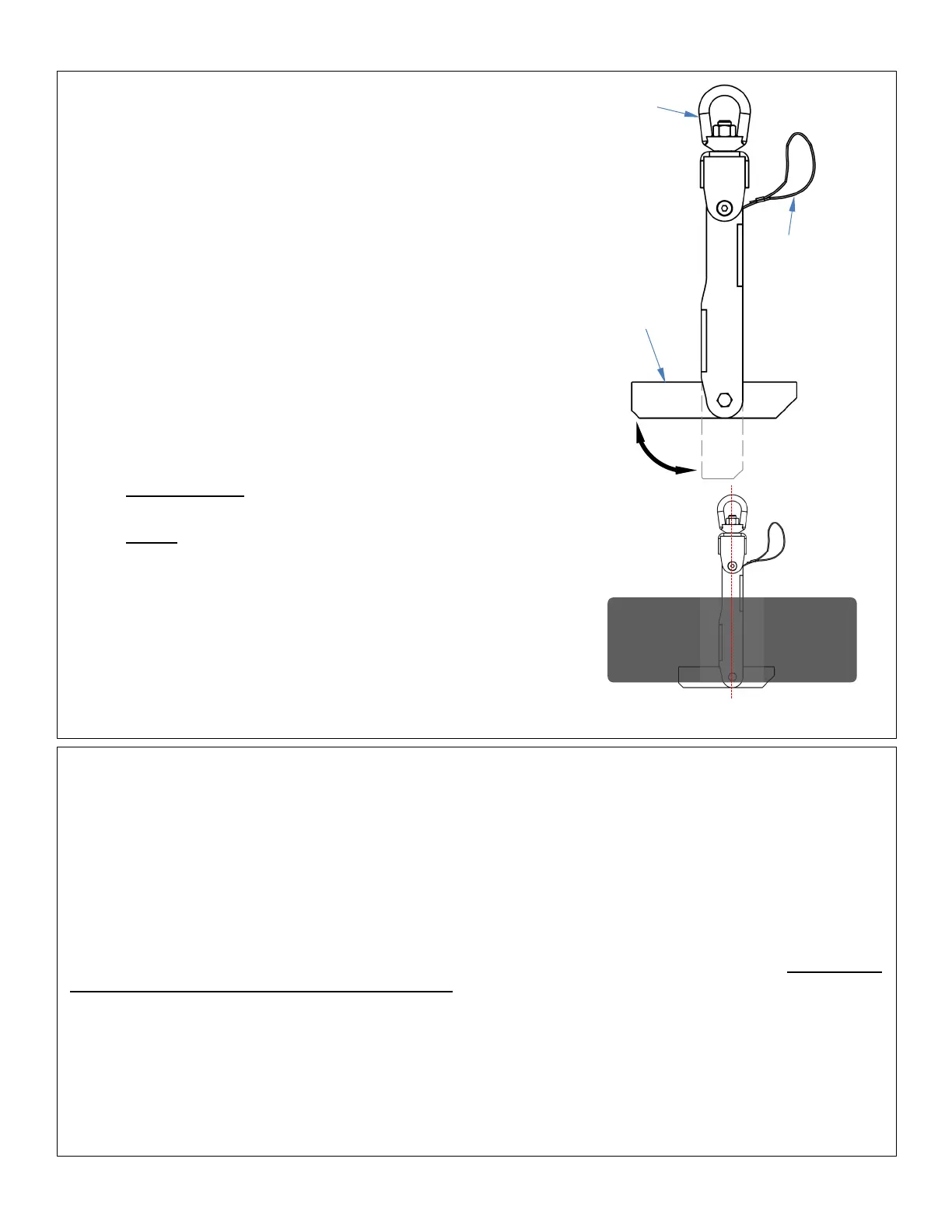

Lifting arm
cable
Pull cable to
raise lifting
arm
Lifting
arm
Shackle
Center of lifter aligns
with center of reel
